145F0734
Part Number: 145F0734
Product Information
Extended Description

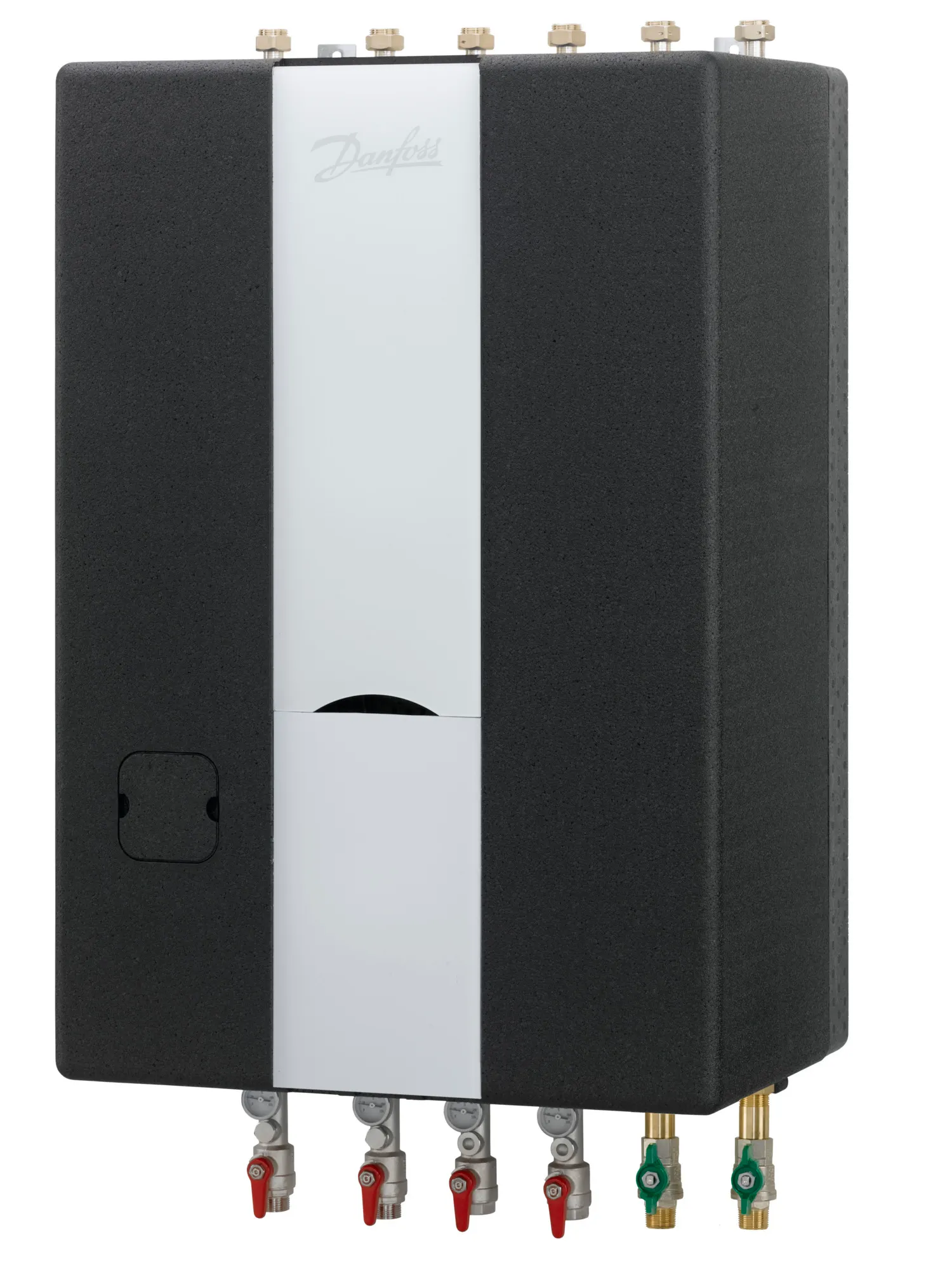

145F0734 Danfoss: Product Type: Akva Lux II VXi HWP, Type 1-1, 16 bar, 110 °C, AVQM / AMV, PTC2+P
Gross weight
42 Kilogram
Net weight
40 Kilogram
EAN
5702424594091
Application type
Indirect heating & Instantaneous DHW
China RoHS compliance
Out of scope
Contain batteries
No
Description
Akva Lux VXi , Type H1 - W1
DHW Control type
Flow-thermostatic
DHW controller name
PTC2+P
DHW HEX type
XB06H-1 26
Heating circuit - control
AVQM / AMV
Heating control type
Electronic
Heating controller name
No Controller
Heating HEX type
XB06H-1 26
HEX DHW brazed/gasketed material
Brazed copper
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
Type 1-1
Supply temperature construction [˚C]
110 °C
Type
Akva Lux II VXi HWP
003H6735
AVQM, PN 16, DN 15, Flow rate [m³/h]: 0.03 - 0.90, External Thread, G 3/4 A, Mounting version: Free
003L1047
Return temperature limiters, FJVR Sensor, 10 °C - 50 °C, Sensor type: Built-in sensor
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8634
Gasket 1" EDPM 282 (10 pcs)
082G3090
Electrical actuators, AMV 150, Supply voltage [V] AC: 230
144B2238
PTC2+P-regulator, kvs 3, nut
144B2383
Small stations accessories
144B2384
Safety valve 3 bar 1/2" x 3/4" SYR
145H3133
Termometer Ø35 0-120 Ø15 x 9mm
145H3619
Kuglehanesæt 3/4" DVGW 120 DE VV/KV Grøn
