145F0742
Part Number: 145F0742
Product Information
Extended Description

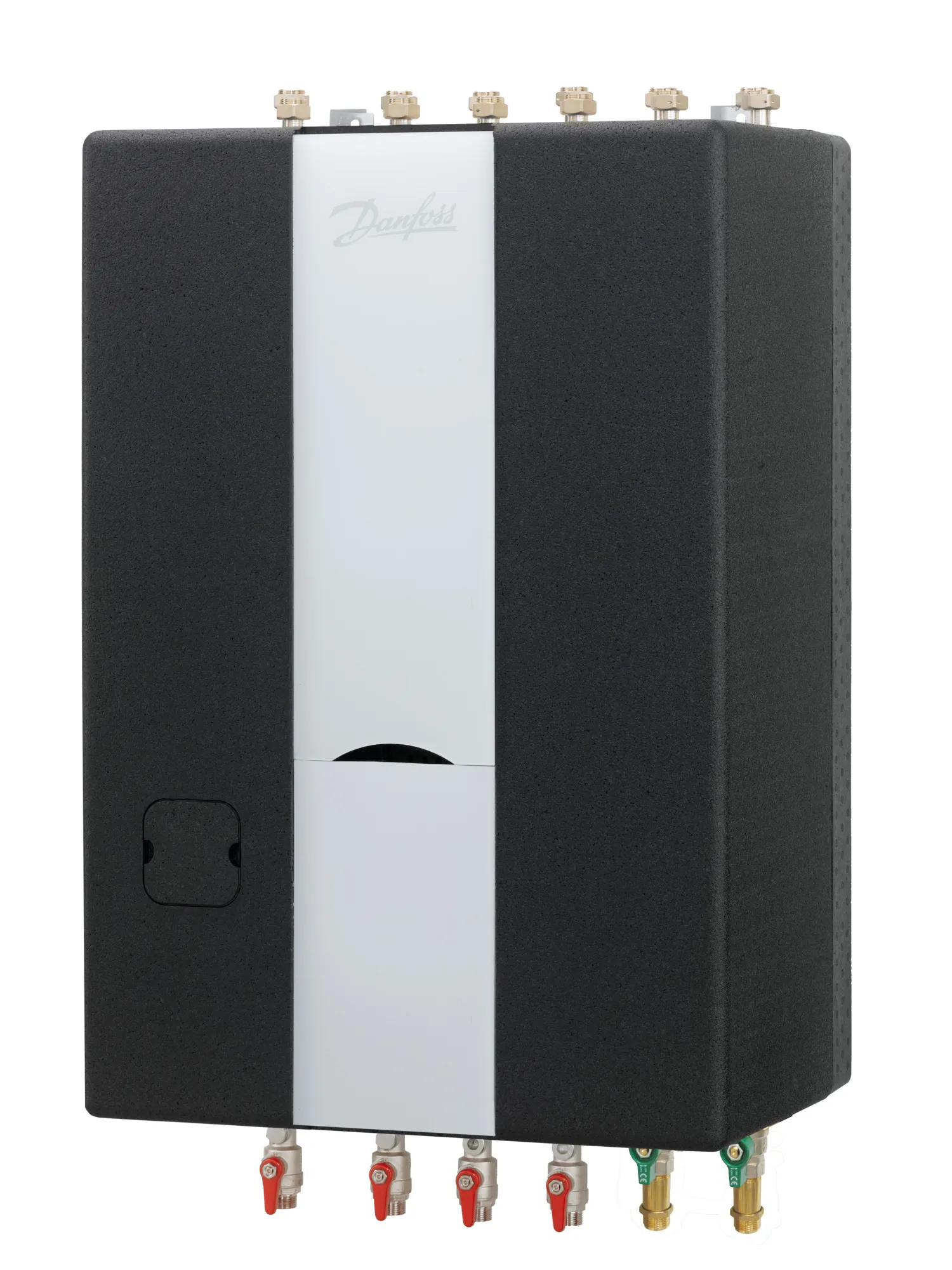

145F0742 Danfoss: Product Type: Akva Lux II VXi HWP, Type 3-2, 16 bar, 120 °C, ECL310, PTC2+P
Gross weight
42 Kilogram
Net weight
40 Kilogram
EAN
5715162874646
Application type
Indirect heating & Instantaneous DHW
Connection direction
Top and bottom
Contain batteries
No
Cover material
EPP
DCW static pressure [bar] [Min]
1 bar
DH connection size
3/4"
DH pipe size
Ø18
DHW circulation
Yes
DHW Control type
Flow/thermostatic
DHW controller name
PTC2+P
DHW HEX type
XB06H-1 40
DHW pipe size
Ø18
Differential pressure controller
Included
HE connection size
3/4"
HE pipe size
Ø18
Heating capacity [kW]
15 kW
Heating circuit - control
ECL310
Heating control type
Electronic
Heating controller name
ECL 310/A337 & AVQM 15/1,6 & AMV13
Heating HEX type
XB06L-1 24
Heating pump brand
Grundfos
Heating pump type
UPM3 AUTO 15-70
HEX DHW brazed/gasketed material
Brazed copper
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
In scope of WEEE
No
Manufacturer's name
Danfoss
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
3 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 3-2
Supply temperature construction [˚C]
120 °C
Supply voltage [V] AC
230 V
Type
Akva Lux II VXi HWP
145H3879
Circulation set incl. pipe for mounting on site
