145F3914
Part Number: 145F3914
Product Information
Extended Description

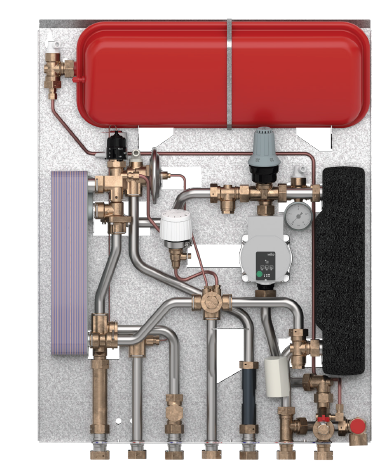

145F3914 Danfoss: EvoFlat VX-F 2StS FH
Gross weight
27.6 Kilogram
Net weight
26.4 Kilogram
Volume
0.768 Hectoliter
EAN
5702424648367
Application type
Indirect heating & Instantaneous DHW
Connection direction
Bottom
Depth without cover [mm]
151 mm
Description
EvoFlat VX-F 2StS FH
DH connection size
3/4"
DH connection type
Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
49 kW
DHW capacity [kW] [Min]
37 kW
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
Differential pressure controller
Integrated
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
0 kW
Heating control type
Thermostatic + Differential pressure
Heating controller name
FTC
Heating pump brand
Wilo
Heating system type
Indirect
Height without cover [mm]
765 mm
HEX DHW brazed/gasketed material
Brazed stainless steel
HEX heating brazed/gasketed material
Stainless steel
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
16 bar
Product group
Small Stations
Station size type
Type 2
Supply temperature construction [˚C]
100 °C
Type
EvoFlat VX-F
