145F4004

Part Number: 145F4004
145F4004
Manufacturer
Danfoss
Part number
145F4004
Category

Product Information

Extended Description

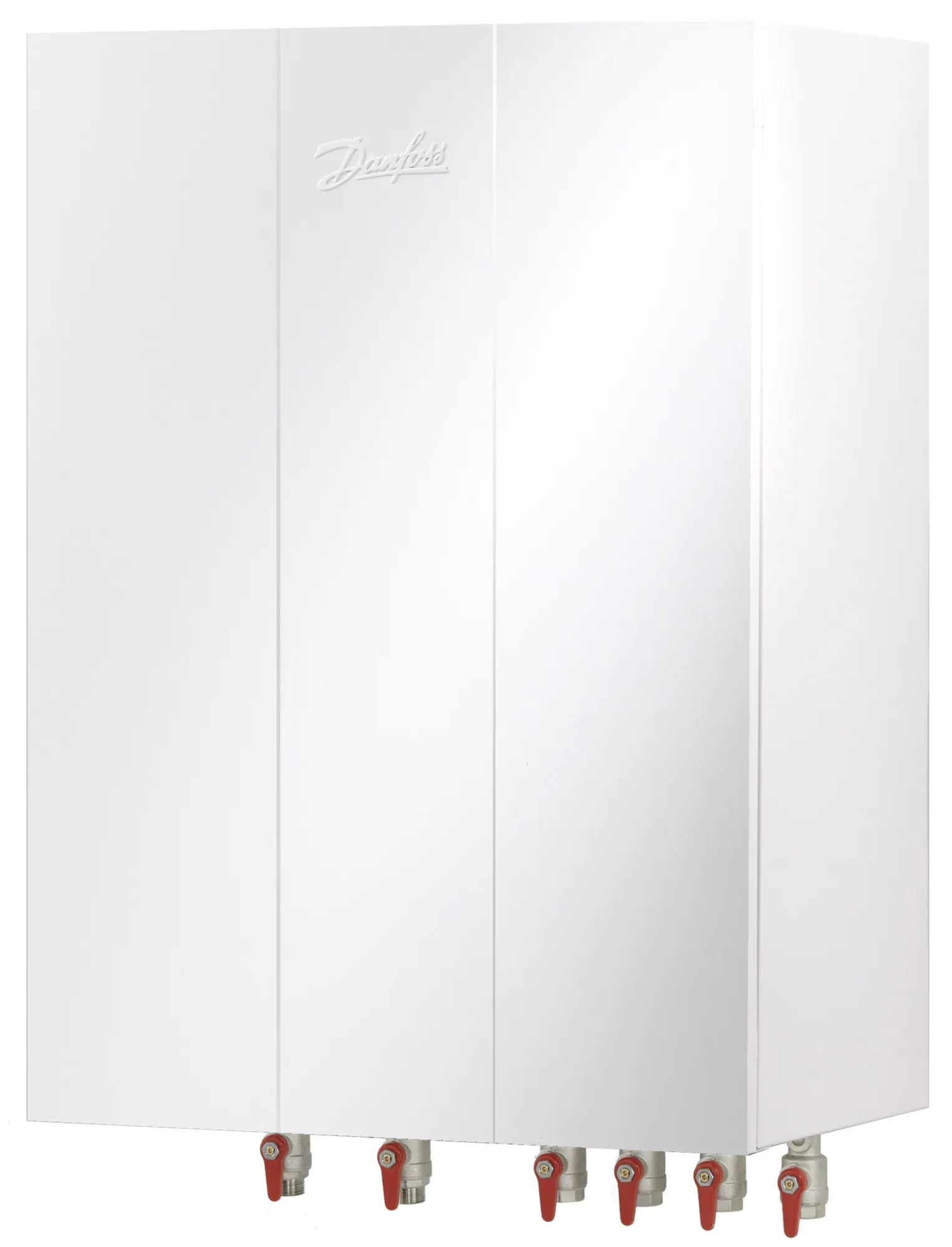

145F4004 Danfoss: Product Type: VX Solo II HWS, Type 1, 16 bar, 110 °C, VMV / AMV, ECL 310 + pump
Gross weight
45 Kilogram
Net weight
43 Kilogram
EAN
5715162511404
Application type
Indirect Heating & Secondary connections for DHW cylinder
Capacity [kW]
20 kW
Connection direction
Top and bottom
Contain batteries
No
Description
VX Solo II HWS, without ECL, Type 1
DHW controller name
ECL 310 + pump
Heating circuit - control
VMV / AMV
Heating control type
Electronic
Heating controller name
No Controller
Heating HEX type
XB06H-1 26
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
Type 1
Supply temperature construction [˚C]
110 °C
Type
VX Solo II HWS
