145F4145
Part Number: 145F4145
Product Information
Extended Description

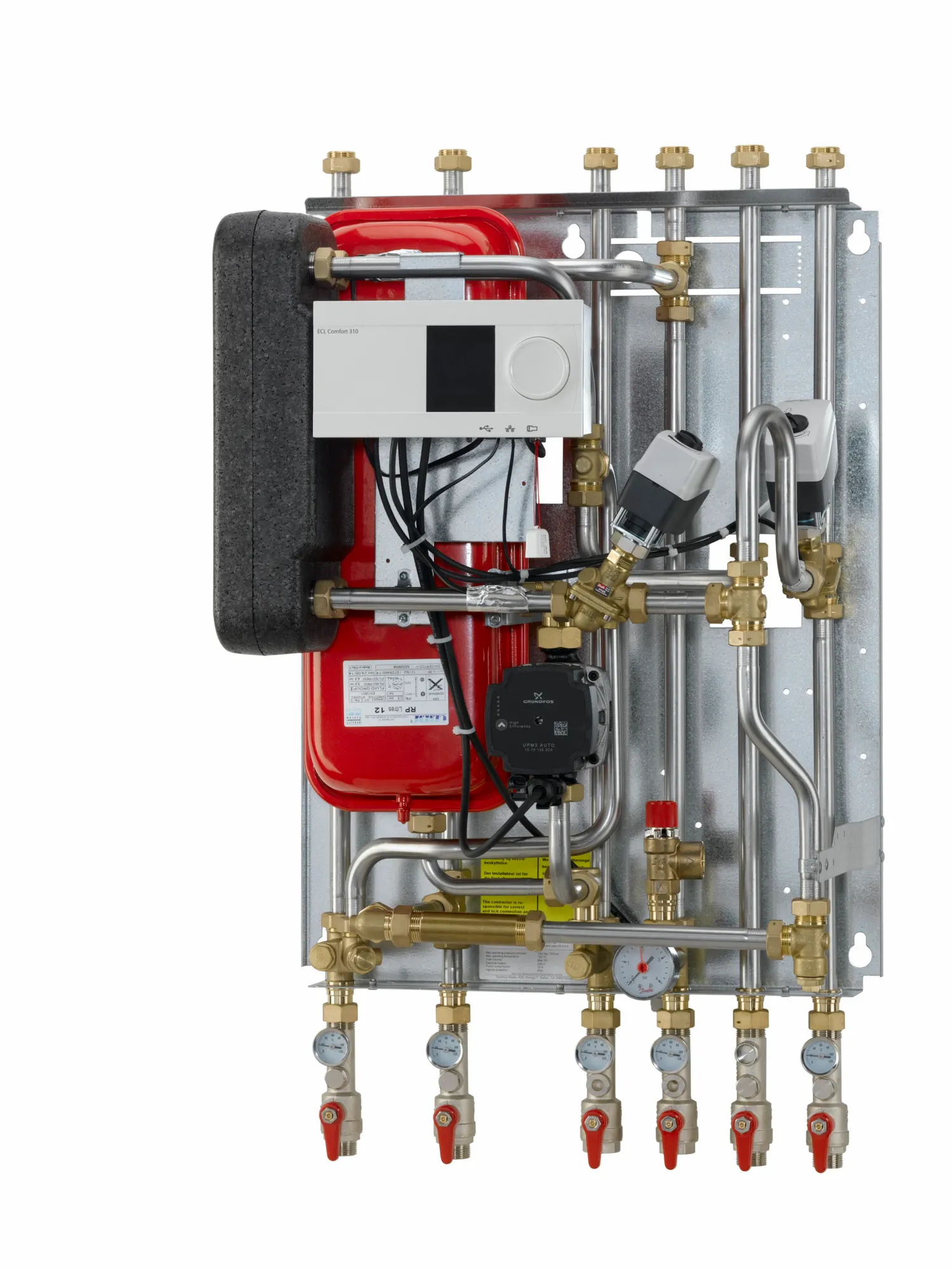

145F4145 Danfoss: Product Type: VX Solo II HWP, AHQM, Type 3, 16 bar, 110 °C, ECL 310 / AHQM / AMV, ECL 310/AHQM/AMV150
Gross weight
40 Kilogram
Net weight
38 Kilogram
Volume
0.226 Cubic meter
EAN
5715162002957
Additional information
Cover,Safety function
Application type
Indirect Heating & Primary connections for DHW cylinder
Capacity [kW]
15 kW
China RoHS compliance
Out of scope
Connection direction
Top and bottom
Contain batteries
No
Cover material
White-lacquered In wall
Description
VX-Solo II HWP ECL310/A347 Type 3, 2x AHQM, FH, with Cover and STW
DH connection size
3/4"
DHW Control type
Electronic
DHW controller name
ECL 310/AHQM/AMV150
DHW pipe size
Ø18
DHW tank circuit - control
AHQM 15 / AMV 150
Differential pressure controller
Integrated
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW]
15 kW
Heating circuit - control
ECL 310 / AHQM / AMV
Heating control type
Electronic
Heating controller name
ECL 310-A247 & AHQM 15/AMV13
Heating HEX type
XB06L-1 24
Heating pump brand
Grundfos
Heating pump type
UPM3 Auto L
Height with cover [mm]
861 mm
Height without cover [mm]
818 mm
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Number of households [Max]
2
Number of households [Min]
1
Package depth [mm]
620 mm
Package height [mm]
420 mm
Package width [mm]
840 mm
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
3 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 3
Supply temperature construction [˚C]
110 °C
Supply voltage [V] AC
230 V
Type
VX Solo II HWP, AHQM
