145F4147
Part Number: 145F4147
Product Information
Extended Description

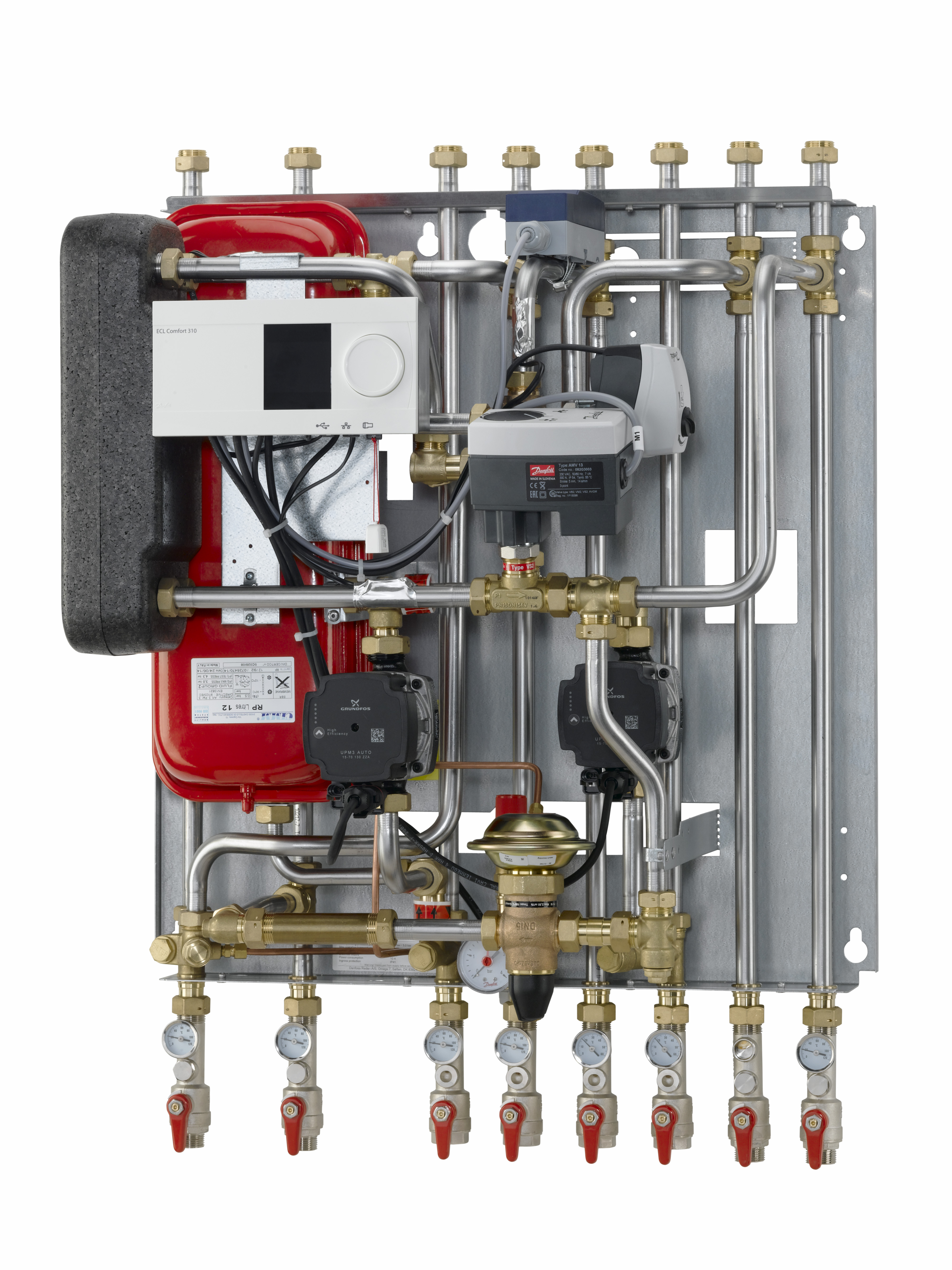

145F4147 Danfoss: Product Type: VX Solo II H2WP, ECL310, Type 2, 16 bar, 110 °C, VMV 15 / AMV150
Gross weight
45 Kilogram
Net weight
43 Kilogram
Volume
3.995 Hectoliter
EAN
5714279483611
Additional information
Cover,Safety function
Application type
Indirect Heating & Primary connections for DHW cylinder
Capacity [kW]
30 kW
China RoHS compliance
Out of scope
Connection direction
Top and bottom
Contain batteries
No
Description
VX-Solo II H2WP ECL310/A260 Type 2, AVPB-F, with Cover and STW
DH connection size
3/4"
DHW pipe size
Ø18
Differential pressure controller
AVPB-F
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating circuit - pump brand
Grundfos
Floor heating circuit - pump type
UPM3 Auto L
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW]
30 kW
Heating circuit - control
VMV 15 / AMV150
Heating control type
Electronic
Heating controller name
ECL 310-A260 & VS2 15/AMV13
Heating HEX type
XB06H-1 40
Heating pump brand
Grundfos
Heating pump type
UPM3 Auto L
Height with cover [mm]
861 mm
Height without cover [mm]
818 mm
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Package depth [mm]
800 mm
Package height [mm]
420 mm
Package width [mm]
840 mm
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
3 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Supply temperature construction [˚C]
110 °C
Supply voltage [V] AC
230 V
Type
VX Solo II H2WP, ECL310
003H6418
AVPB-F, PN 16, DN 15, Flow rate [m³/h]: 0.08 - 1.80, 0.30 bar - 0.30 bar, External Thread, G 3/4 A, Mounting version: Return
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8237
Expansion 12L 515x200mm
004U8604
Kappe m/Front aft. f/VX B700 D380 H780
004U8634
Gasket 1" EDPM 282 (10 pcs)
065F6015
VMV M30, PN 16, DN 15, 2.50 m³/h, G 3/4 A, M30
082G3003
Electrical actuators, AMV 13, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3801
ECL Application keys, A260
