145F4158
Part Number: 145F4158
Product Information
Extended Description

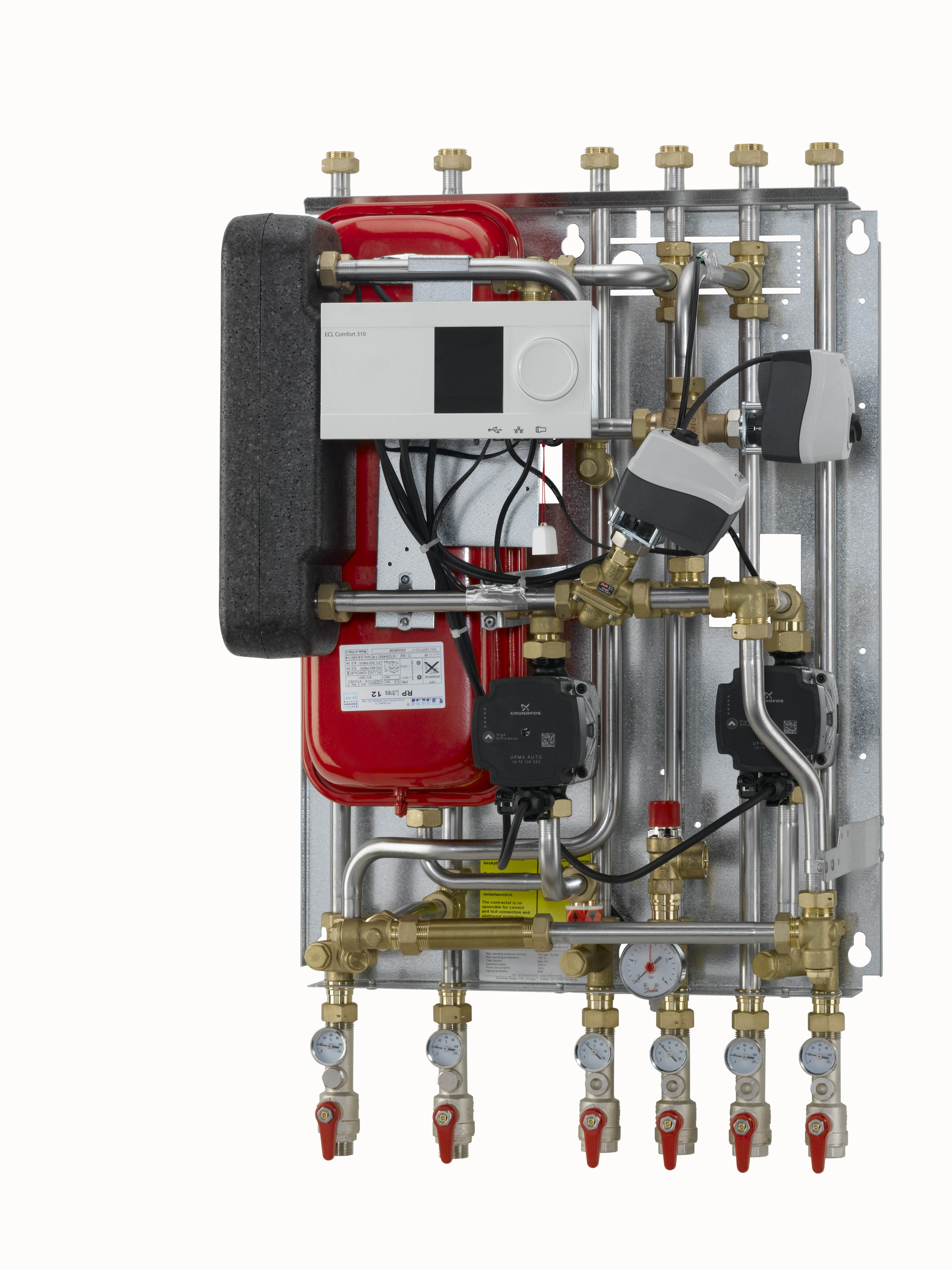

145F4158 Danfoss: Product Type: VX Solo II HWS, 1 HE circ., mix. loop, sec. conn. f/cyl., Type 1, 16 bar, 110 °C, VMV 15 / AMV150, ECL 310 + pump
Gross weight
40 Kilogram
Net weight
38 Kilogram
Volume
0.226 Cubic meter
EAN
5714279483505
Additional information
Cover
Application type
Indirect Heating & Secondary connections for DHW cylinder
Capacity [kW]
20 kW
China RoHS compliance
Out of scope
Connection direction
Top and bottom
Contain batteries
No
Description
VX-Solo II HWS ECL310/A347 Type 1, with Cover
DH connection size
3/4"
DHW Control type
Electronic
DHW controller name
ECL 310 + pump
DHW pipe size
Ø18
DHW pump brand
Grundfos
DHW pump type
UPM3
Differential pressure controller
Integrated
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating circuit - pump brand
Grundfos
Floor heating circuit - pump type
UPM3 Auto L
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW]
20 kW
Heating circuit - control
VMV 15 / AMV150
Heating control type
Electronic
Heating controller name
ECL 310-A347 & AHQM 15/AMV150
Heating HEX type
XB06H-1 26
Heating pump brand
Grundfos
Heating pump type
UPM3 Auto L
Height with cover [mm]
861 mm
Height without cover [mm]
818 mm
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Package depth [mm]
620 mm
Package height [mm]
420 mm
Package width [mm]
840 mm
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
3 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 1
Supply temperature construction [˚C]
110 °C
Supply voltage [V] AC
230 V
Type
VX Solo II HWS, 1 HE circ., mix. loop, sec. conn. f/cyl.
003L3594
AHQM, PN 16, DN 15, Flow rate [m³/h]: 0.20 - 1.00, External Thread, G 3/4 A, Mounting version: Free
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8237
Expansion 12L 515x200mm
004U8603
Kappe f/Akva Lux VX2
004U8634
Gasket 1" EDPM 282 (10 pcs)
065F6015
VMV M30, PN 16, DN 15, 2.50 m³/h, G 3/4 A, M30
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087B1184
ESMB-12, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3808
ECL Application keys, A247
