145F4179
Part Number: 145F4179
Product Information
Extended Description

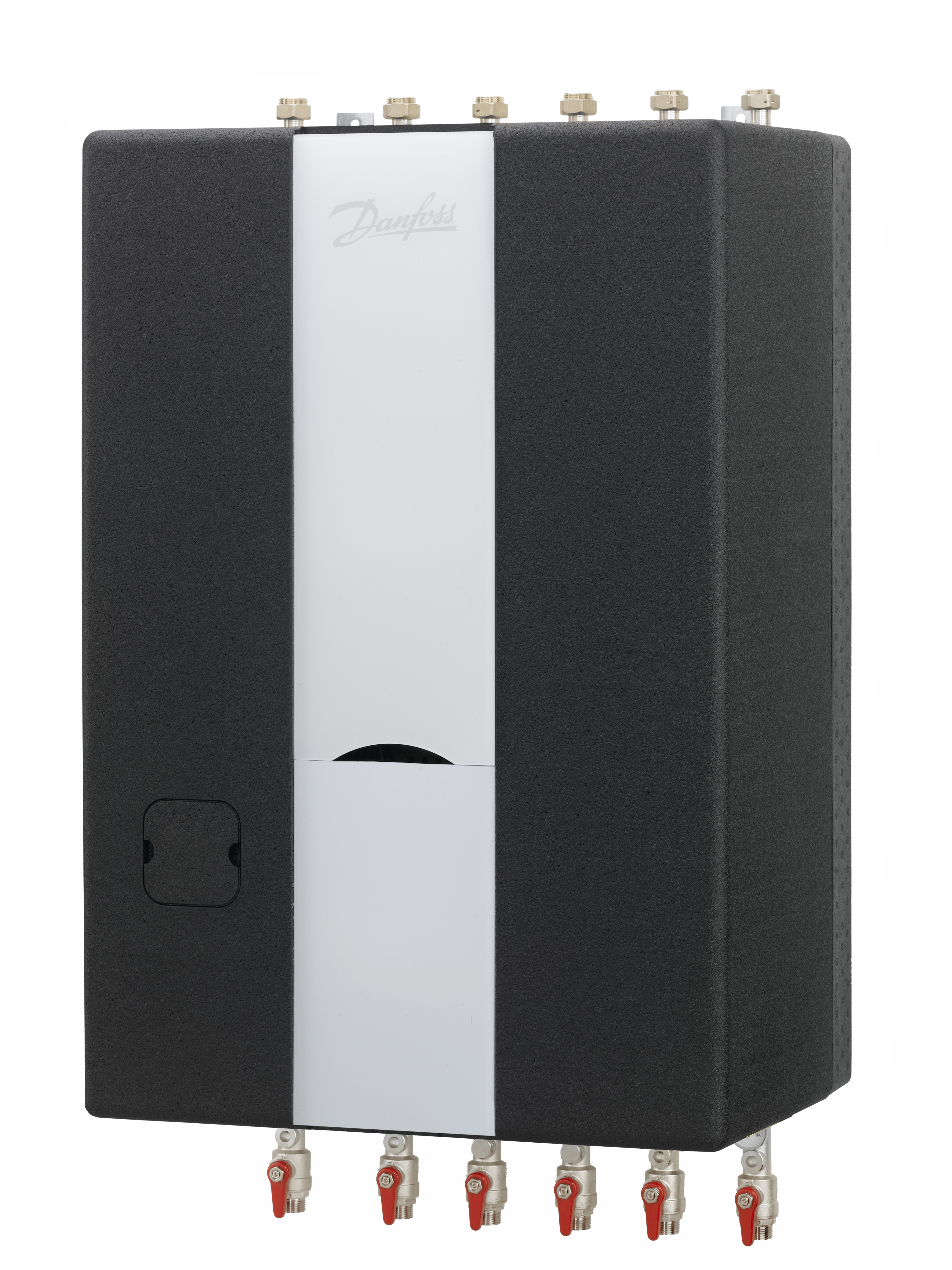

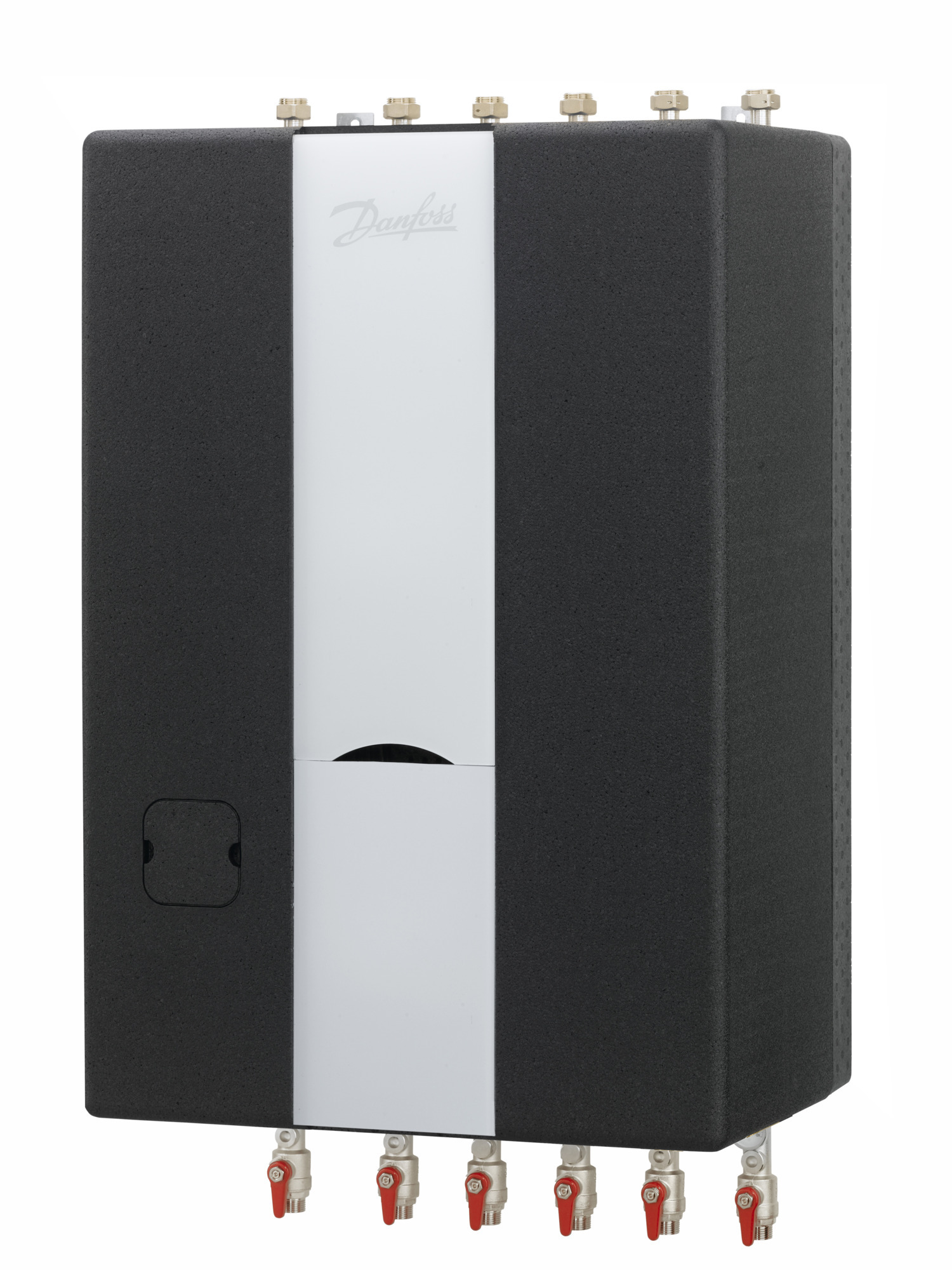

145F4179 Danfoss: Product Type: VXi Solo HWP, Type 1, 16 bar, 110 °C, ECL 310 / VS 2 / AMV
Gross weight
38 Kilogram
Net weight
36 Kilogram
Volume
2.175 Hectoliter
EAN
5714279483390
Additional information
EPP Insulated front cover
Application type
Indirect Heating & Primary connections for DHW cylinder
Capacity [kW]
20 kW
China RoHS compliance
Out of scope
Connection direction
Top and bottom
Contain batteries
No
Description

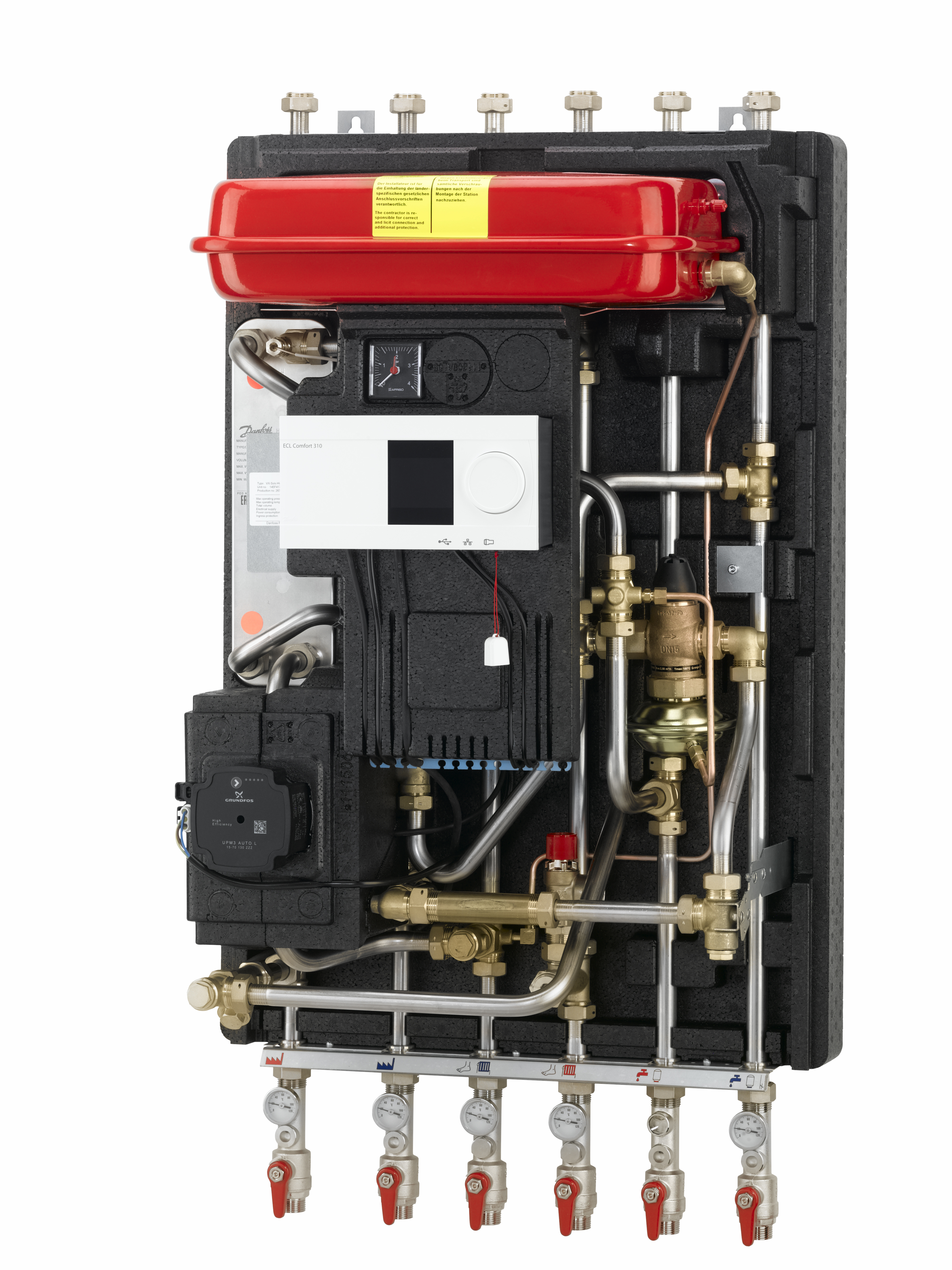

VXi-Solo HWP, ECL310/A337, Type 1 EPP front insulation cover
DH connection size
3/4"
DHW pipe size
Ø18
Differential pressure controller
AVPB-F 15
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW]
20 kW
Heating circuit - control
ECL 310 / VS 2 / AMV
Heating control type
Electronic
Heating controller name
ECL 310-A337 & AHQM 15/AMV150
Heating HEX type
XB06H-1 26
Heating pump brand
Grundfos
Heating pump type
UPM3 Auto L
Height with cover [mm]
861 mm
Height without cover [mm]
818 mm
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Package depth [mm]
620 mm
Package height [mm]
420 mm
Package width [mm]
840 mm
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
3 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 1
Supply temperature construction [˚C]
110 °C
Supply voltage [V] AC
230 V
Type
VXi Solo HWP
003H6418
AVPB-F, PN 16, DN 15, Flow rate [m³/h]: 0.08 - 1.80, 0.30 bar - 0.30 bar, External Thread, G 3/4 A, Mounting version: Return
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8634
Gasket 1" EDPM 282 (10 pcs)
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3806
ECL Application keys, A237
087N0011
ESMC, Sensors
144B2384
Safety valve 3 bar 1/2" x 3/4" SYR
145H3753
Expansion 12L RP 250/12 - 0,5bar
145H3803
Manometer 0-4 Bar, 48*48
