145F4189
Part Number: 145F4189
Product Information
Extended Description

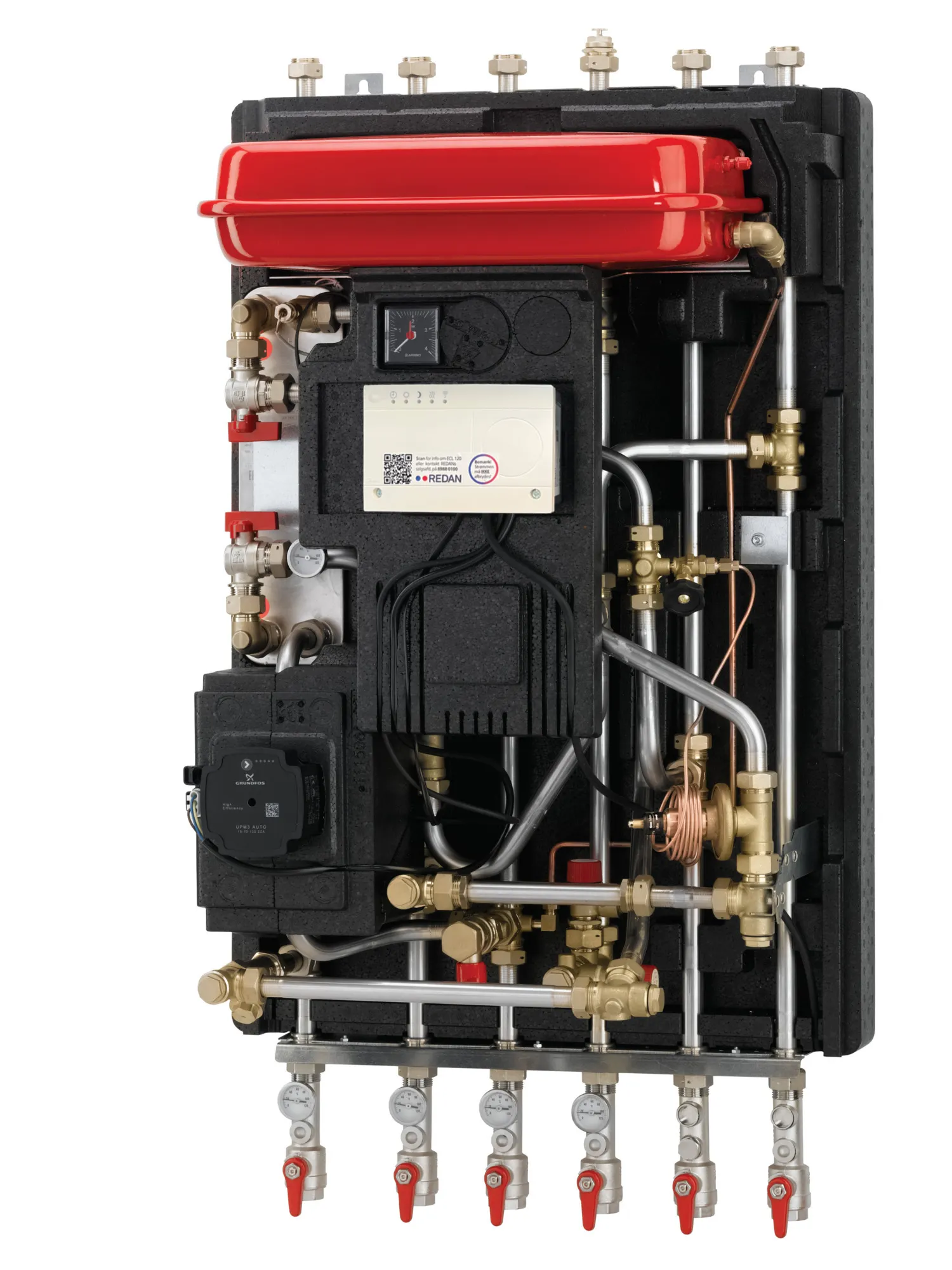

145F4189 Danfoss: Product Type: VXi Solo HWP, L24, 16 bar, 120 °C, Motorized control valve
Gross weight
38 Kilogram
Net weight
36 Kilogram
EAN
5715162519899
Application type
Indirect Heating & Primary connections for DHW cylinder
Capacity [kW]
15 kW
Connection direction
Top and bottom
Description
VXi Solo XB06L24 ECL120 Std
Heating circuit - control
Motorized control valve
Heating control type
Electronic
Heating controller name
ECL 120/VS2/AMV150
Heating HEX type
XB06L-1 24
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
L24
Supply temperature construction [˚C]
120 °C
Type
VXi Solo HWP
