145F4445
Part Number: 145F4445
Product Information
Extended Description

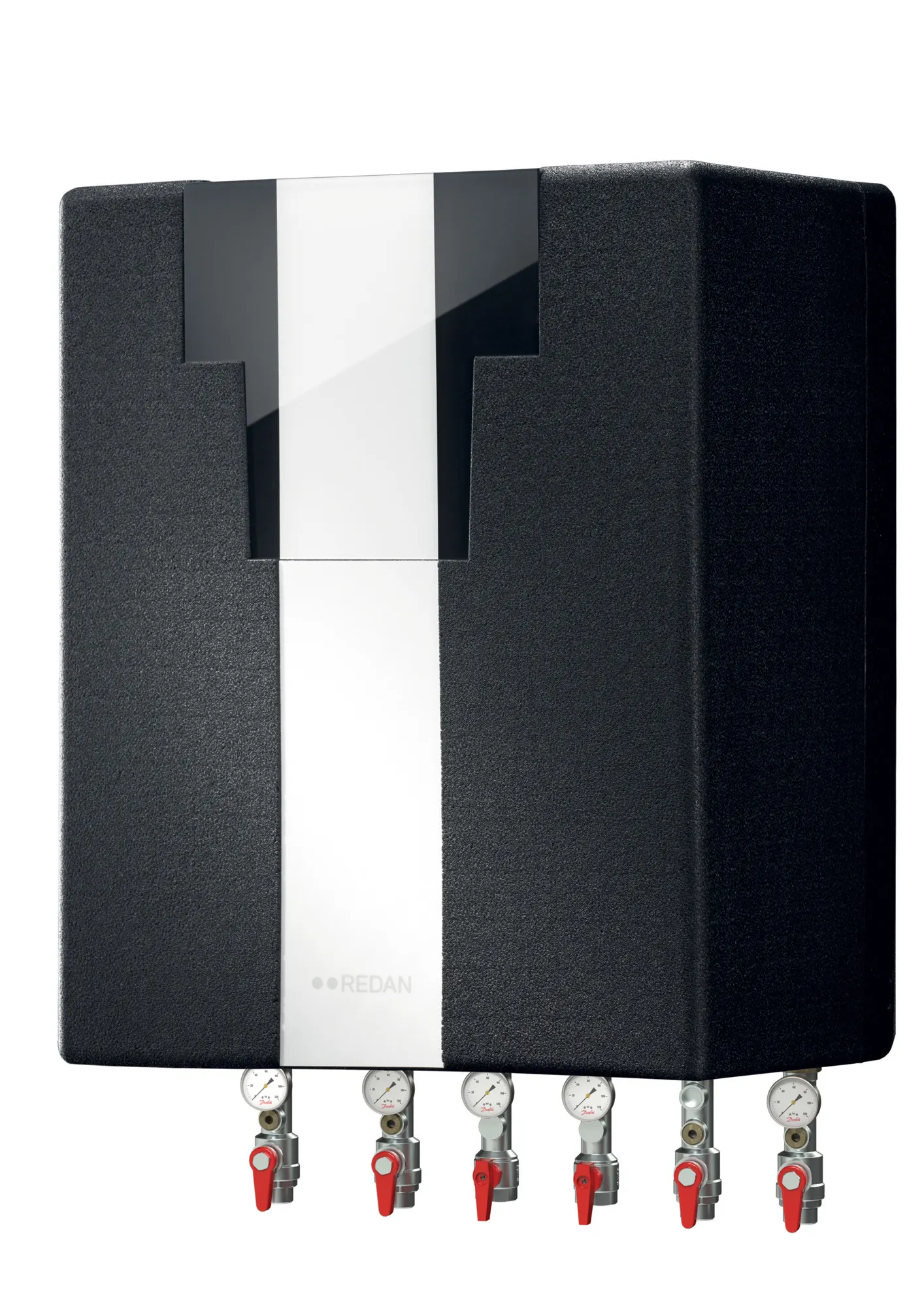

145F4445 Danfoss: Product Type: VXe Solo HWP (A237), Type 1, 16 bar, 120 °C, ECL 310 / VS 2 / AMV
Gross weight
39 Kilogram
Net weight
37 Kilogram
Volume
1.794 Hectoliter
EAN
5702424285135
Application type
Indirect Heating & Primary connections for DHW cylinder
Capacity [kW]
20 kW
China RoHS compliance
Out of scope
Connection direction
Bottom
Contain batteries
No
Description
VXe Solo HWP, ECL310/A237, Type 1
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Heating circuit - control
ECL 310 / VS 2 / AMV
Heating control type
Electronic
Heating controller name
ECL 310/VS2/AMV150
Heating HEX type
XB06H-1 26
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 1
Supply temperature construction [˚C]
120 °C
Type
VXe Solo HWP (A237)
003H6418
AVPB-F, PN 16, DN 15, Flow rate [m³/h]: 0.08 - 1.80, 0.30 bar - 0.30 bar, External Thread, G 3/4 A, Mounting version: Return
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8237
Expansion 12L 515x200mm
004U8634
Gasket 1" EDPM 282 (10 pcs)
082G3093
Electrical actuators, AMV 150, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3806
ECL Application keys, A237
087N0011
ESMC, Sensors
144B2384
Safety valve 3 bar 1/2" x 3/4" SYR
144B2021
RAVK 25-65/VMA thermostatic valve for DHW (Delivered loose with unit)
