145F4453
Part Number: 145F4453
Product Information
Extended Description

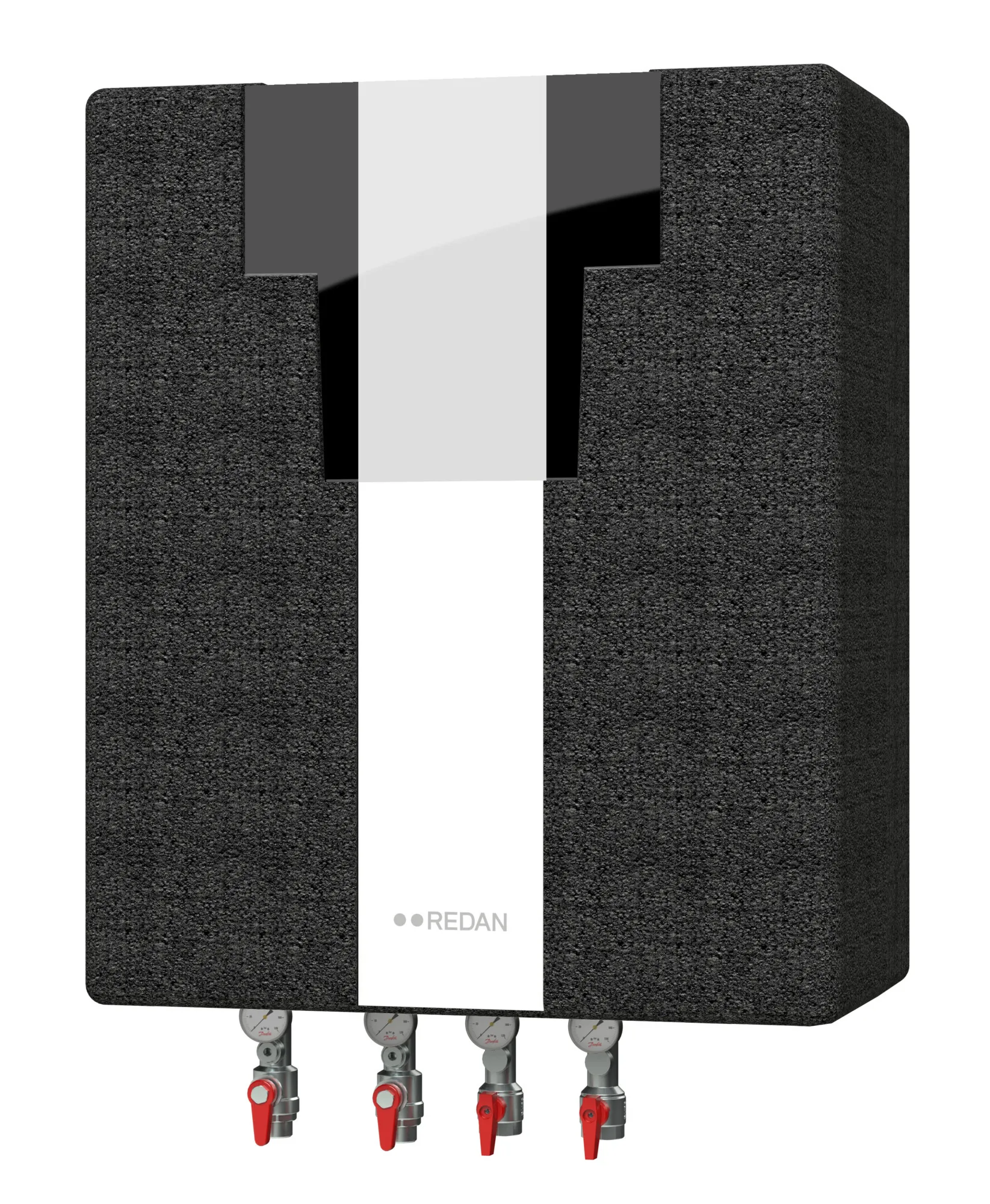

145F4453 Danfoss: Product Type: VXe Solo H OP, Type 2, 16 bar, 120 °C, Pressure independent control valve
Gross weight
47 Kilogram
Net weight
40 Kilogram
EAN
5702424609184
Application type
Indirect heating
Capacity [kW]
30 kW
China RoHS compliance
Out of scope
Connection direction
Bottom
Contain batteries
No
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Heating circuit - control
Pressure independent control valve
Heating control type
Electronic
Heating controller name
ECL 310/AVQM/AMV13
Heating HEX type
XB06H-1 40
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Supply temperature construction [˚C]
120 °C
Type
VXe Solo H OP
