145F4474
Part Number: 145F4474
Product Information
Extended Description

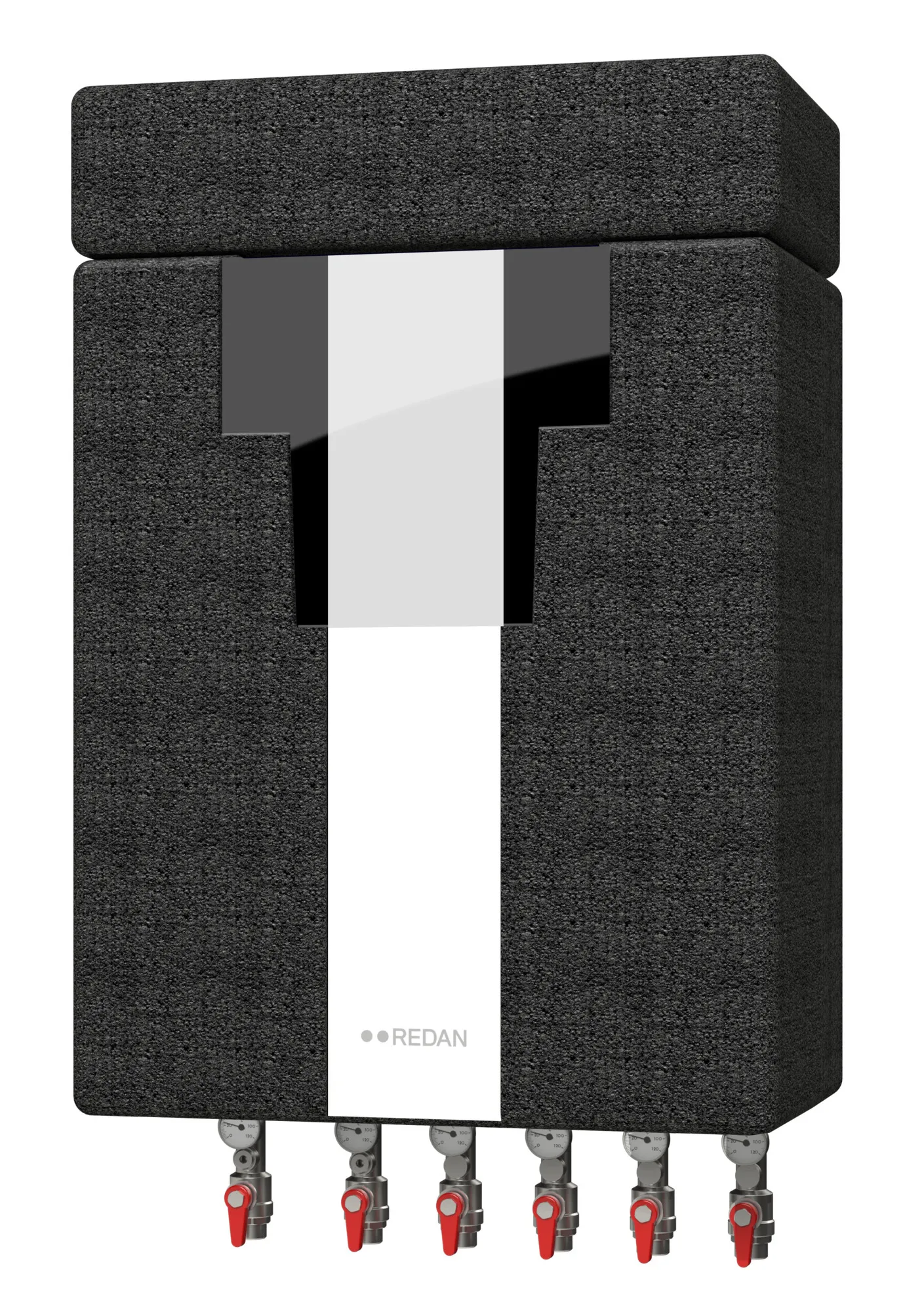

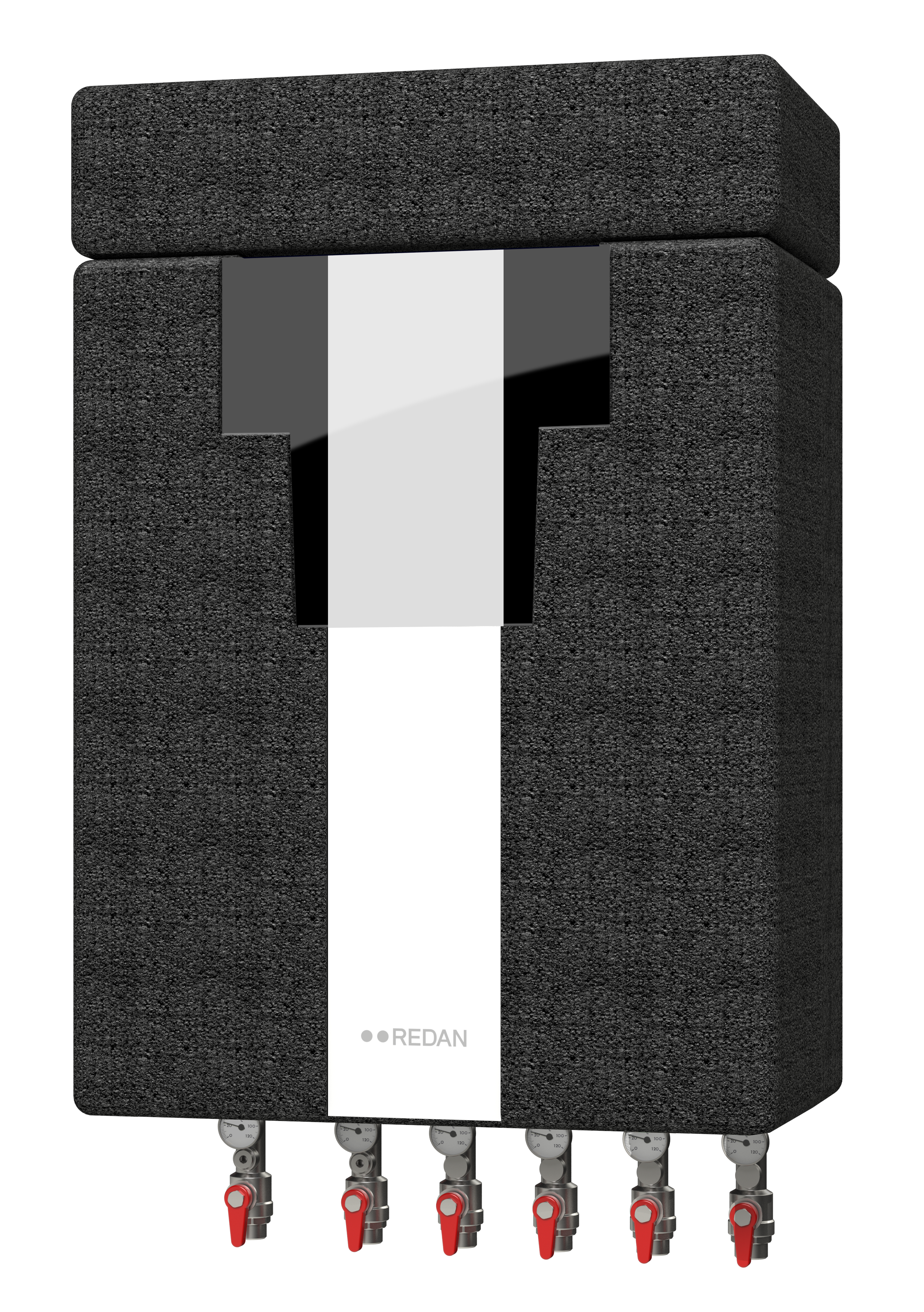

145F4474 Danfoss: Product Type: VXe Solo HWP (A347), Type 2, 16 bar, 120 °C, Pressure independent control valve, ECL 310/AHQM/AMV150
Gross weight
55 Kilogram
Net weight
50 Kilogram
EAN
5715162538586
Application type
Indirect Heating & Primary connections for DHW cylinder
Capacity [kW]
30 kW
Connection direction
Bottom
Description
VXe Solo HWP ECL310/A247 TYP2 STW
DHW controller name
ECL 310/AHQM/AMV150
Heating circuit - control
Pressure independent control valve
Heating control type
Electronic
Heating controller name
ECL 310/AHQM/AMV13
Heating HEX type
XB06H-1 40
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
Type 2
Supply temperature construction [ËšC]
120 °C
Type
VXe Solo HWP (A347)
003L3594
AHQM, PN 16, DN 15, Flow rate [mÂł/h]: 0.20 - 1.00, External Thread, G 3/4 A, Mounting version: Free
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8237
Expansion 12L 515x200mm
004U8634
Gasket 1" EDPM 282 (10 pcs)
082G3003
Electrical actuators, AMV 13, Supply voltage [V] AC: 230
082G3093
Electrical actuators, AMV 150, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087B1184
ESMB-12, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3822
ECL Application keys, A247
