145F4481
Part Number: 145F4481
Product Information
Extended Description

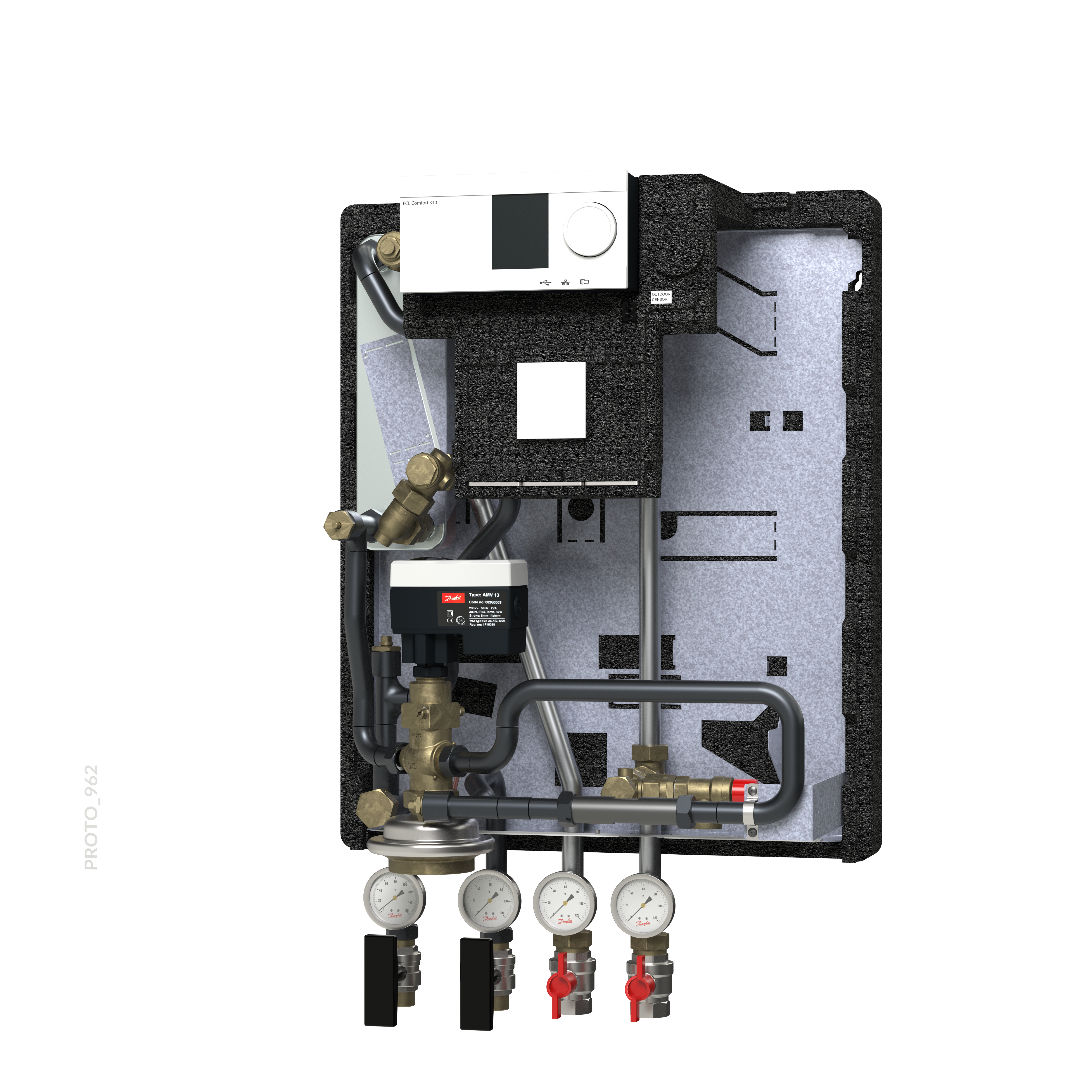

145F4481 Danfoss: Product Type: VXe Solo H OP HT, Type 2, 25 bar, 130 °C, ECL 310 / AVQM / AMV
Gross weight
39 Kilogram
Net weight
37 Kilogram
EAN
5702424659752
Application type
Indirect heating
Capacity [kW]
47 kW
Connection direction
Bottom
Contain batteries
No
Description
VXe Solo H OP HT, ECL310, Type 2, with safety function
Heating circuit - control
ECL 310 / AVQM / AMV
Heating control type
Electronic
Heating controller name
ECL 310/AVQM/AMV13
Heating HEX type
XB06H-1 26
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
25 bar
Product group
Small Stations
Station size type
Type 2
Supply temperature construction [˚C]
130 °C
Type
VXe Solo H OP HT
003H6748
AVQM, PN 25, DN 15, Flow rate [m³/h]: 0.03 - 0.90, External Thread, G 3/4 A, Mounting version: Free
004U8634
Gasket 1" EDPM 282 (10 pcs)
082G3003
Electrical actuators, AMV 13, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087B1184
ESMB-12, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087N0011
ESMC, Sensors
144B2384
Safety valve 3 bar 1/2" x 3/4" SYR
145H3094
Kuglehane 1"M/N (Female/Male) 52RR-1-008
145H3131
Skivetermometer ø63 0-120°C ø15x13mm
