145F4491
Part Number: 145F4491
Product Information
Extended Description

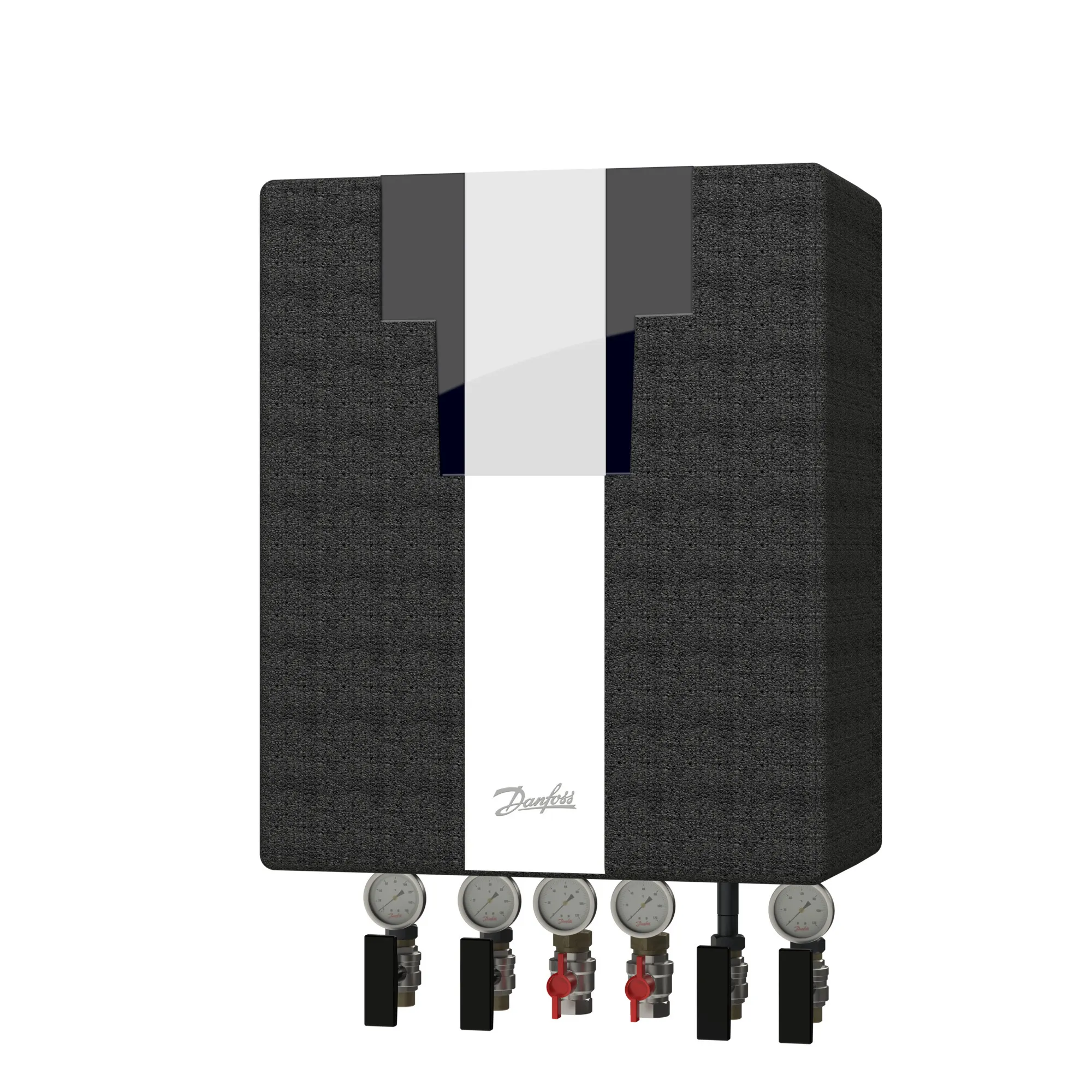

145F4491 Danfoss: Product Type: VXe Solo HWP HT, Type 2, 25 bar, 130 °C, ECL 310 / VS 2 / AMV
Gross weight
39 Kilogram
Net weight
37 Kilogram
EAN
5702424682484
Application type
Indirect Heating & Primary connections for DHW cylinder
Capacity [kW]
47 kW
Connection direction
Bottom
Description
VXe Solo HWP HT, ECL310/A337, Type 2, with safety function for heating circuit
Heating circuit - control
ECL 310 / VS 2 / AMV
Heating control type
Electronic
Heating controller name
ECL 310/VM2/AMV13
Heating HEX type
XB06H-1 40
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
25 bar
Product group
Small Stations
Station size type
Type 2
Supply temperature construction [˚C]
130 °C
Type
VXe Solo HWP HT
003H6462
AVPB-F, PN 25, DN 15, Flow rate [m³/h]: 0.07 - 2.40, 0.50 bar - 0.50 bar, External Thread, G 3/4 A, Mounting version: Return
004U8237
Expansion 12L 515x200mm
004U8634
Gasket 1" EDPM 282 (10 pcs)
065B2016
VM 2, PN 25, DN 20, 4.00 m³/h, G 1 A
082G3003
Electrical actuators, AMV 13, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3821
ECL Application keys, A237
087N0011
ESMC, Sensors
144B2367
Jumo safety thermostat AT-20 40-100C
