145F5010
Part Number: 145F5010
Product Information
Extended Description
145F5010 Danfoss: Product Type: VX Solo II H2, 2 HE circuits, Type 2, 16 bar, 110 °C, ECL 310 / AHQM / AMV
Gross weight
45 Kilogram
Net weight
43 Kilogram
EAN
5702424639051
Additional information
Cover,2x Safety function,Pipe insulation
Application type
Indirect heating
Capacity [kW]
30 kW
Connection direction
Top and bottom
Contain batteries
No
Description
VX-SOLO II H2 ECL310/A260 TYPE 2 2xSTW
Heating circuit - control
ECL 310 / AHQM / AMV
Heating control type
Electronic
Heating controller name
ECL 310/AHQM/AMV13 & VMV/AMV150
Heating HEX type
XB06H-1 40
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
Type 2
Supply temperature construction [˚C]
110 °C
Type
VX Solo II H2, 2 HE circuits
003L3594
AHQM, PN 16, DN 15, Flow rate [m³/h]: 0.20 - 1.00, External Thread, G 3/4 A, Mounting version: Free
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8237
Expansion 12L 515x200mm
004U8603
Kappe f/Akva Lux VX2
004U8634
Gasket 1" EDPM 282 (10 pcs)
065F6015
VMV M30, PN 16, DN 15, 2.50 m³/h, G 3/4 A, M30
082G3003
Electrical actuators, AMV 13, Supply voltage [V] AC: 230
082G3093
Electrical actuators, AMV 150, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
Specifying the right district heating substation makes commercial sense
First ever district heating system with substations in Turkey
Teknopark Istanbul: First-mover in district energy
VX Solo II
Modern heating technology for housing associations
Danfoss EU DHEU00E002 A

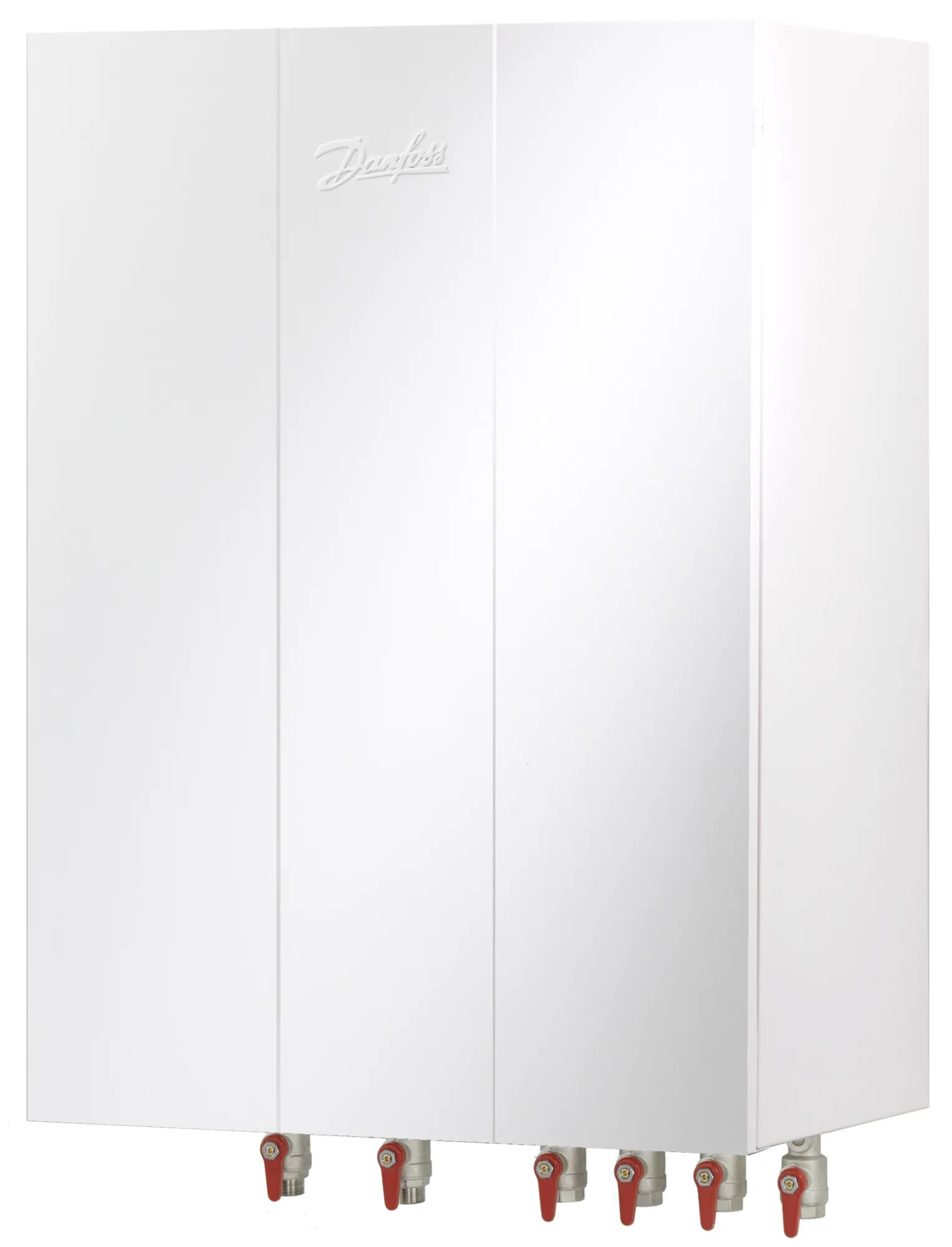

Substation type VX Solo with white steel cover
