145F5036
Part Number: 145F5036
Product Information
Extended Description

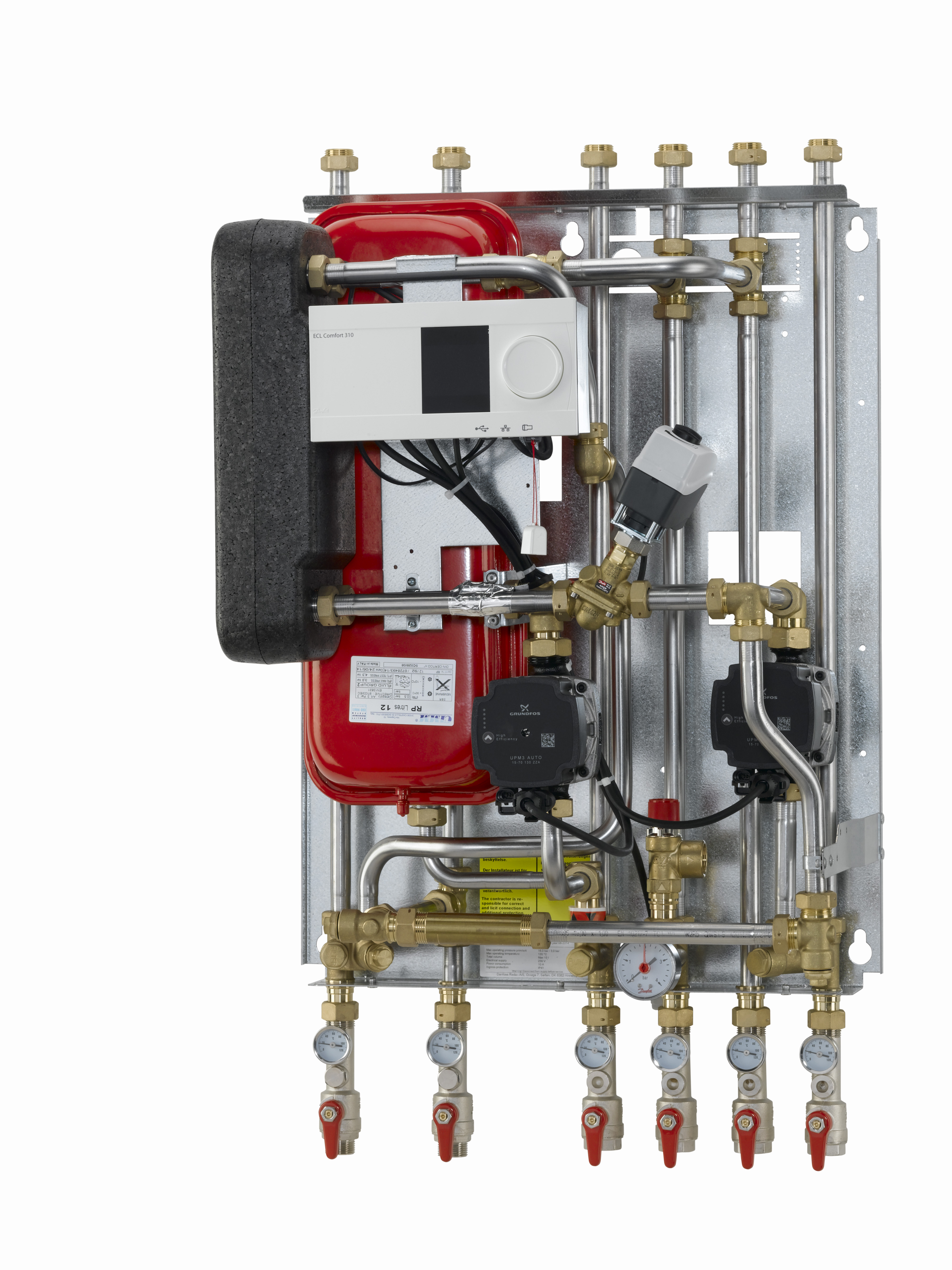

145F5036 Danfoss: Product Type: VX Solo II HWS, Type 1, 16 bar, 110 °C, ECL 310 / AHQM / AMV, ECL 310 + pump
Gross weight
50 Kilogram
Net weight
45 Kilogram
EAN
5715162511510
Application type
Indirect Heating & Secondary connections for DHW cylinder
Capacity [kW]
20 kW
China RoHS compliance
Out of scope
Connection direction
Top and bottom
Contain batteries
No
Description
VX Solo II HWS, ECL310/A237, Type 1, with safety function
DHW controller name
ECL 310 + pump
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Heating circuit - control
ECL 310 / AHQM / AMV
Heating control type
Electronic
Heating controller name
ECL 310/AHQM/AMV13
Heating HEX type
XB06H-1 26
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 1
Supply temperature construction [ËšC]
110 °C
Type
VX Solo II HWS
003L3594
AHQM, PN 16, DN 15, Flow rate [mÂł/h]: 0.20 - 1.00, External Thread, G 3/4 A, Mounting version: Free
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8237
Expansion 12L 515x200mm
004U8603
Kappe f/Akva Lux VX2
004U8634
Gasket 1" EDPM 282 (10 pcs)
082G3003
Electrical actuators, AMV 13, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087B1184
ESMB-12, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3806
ECL Application keys, A237
