145F5064
Part Number: 145F5064
Product Information
Extended Description

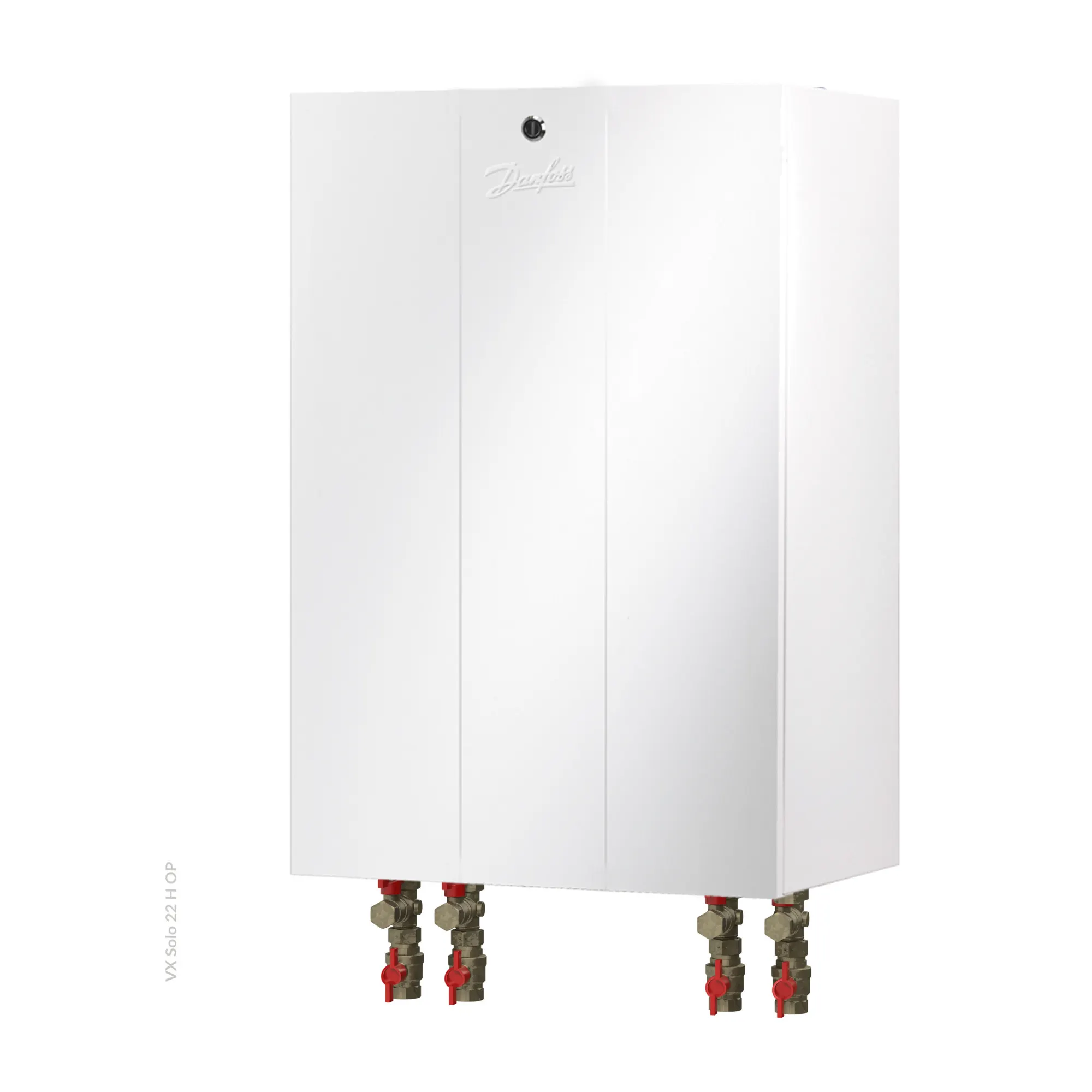

145F5064 Danfoss: Product Type: VX Solo 22, Type 2, 16 bar, 120 °C, Pressure independent control valve, RAVK / VMA
Gross weight
52 Kilogram
Net weight
50 Kilogram
EAN
5715162512111
Application type
Indirect heating & Instantaneous DHW
Capacity [kW]
75 kW
Connection direction
Top and bottom
Contain batteries
No
DHW controller name
RAVK / VMA
Heating circuit - control
Pressure independent control valve
Heating control type
Electronic
Heating controller name
ECL 310/AVQM/AMV10
Heating HEX type
XB37M-1 40
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
Type 2
Supply temperature construction [ËšC]
120 °C
Type
VX Solo 22
