145F5065
Part Number: 145F5065
Product Information
Extended Description

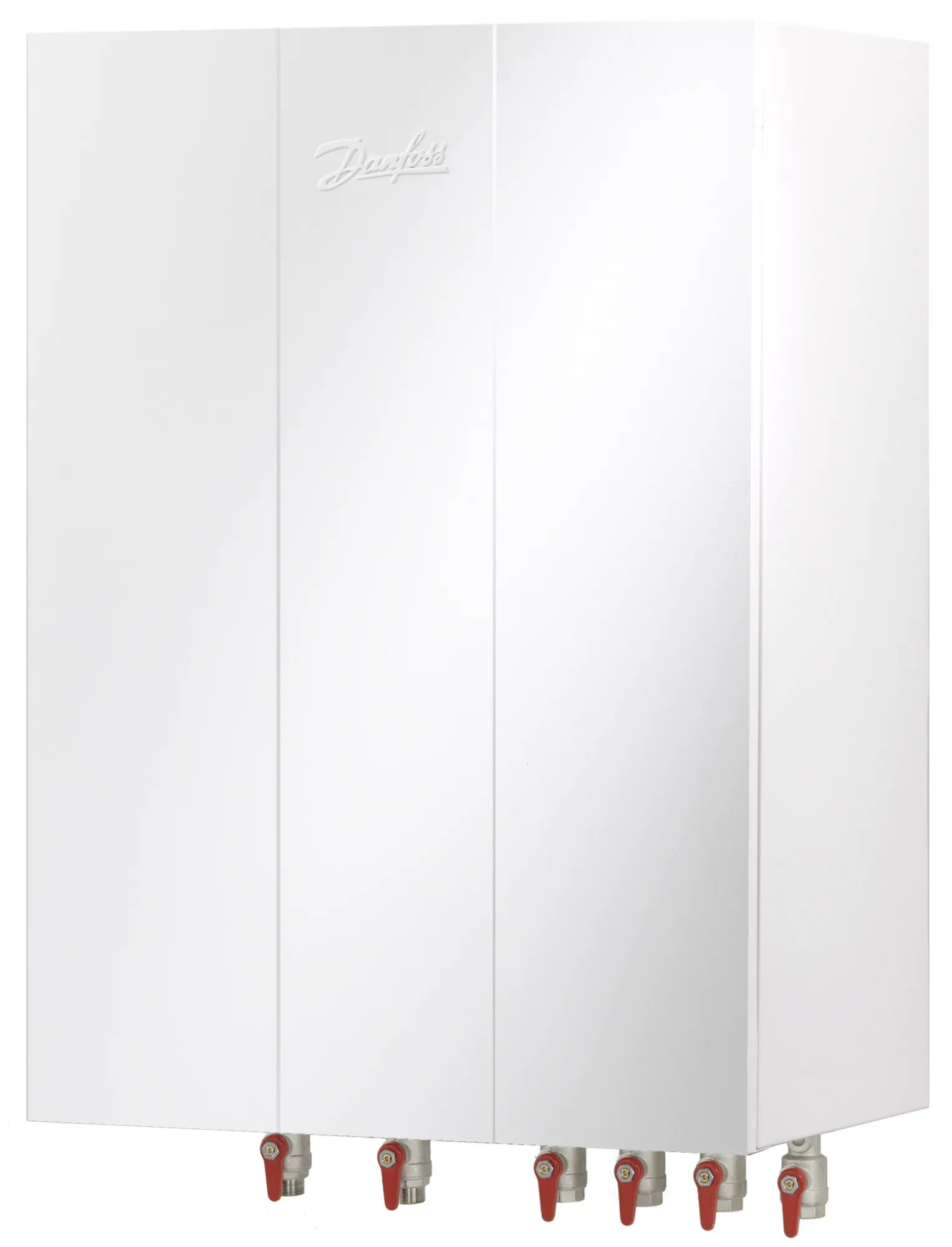

145F5065 Danfoss: Product Type: VX Solo II HWS, Type 2, 16 bar, 120 °C, Pressure independent control valve, ECL 310 + pump
Gross weight
40 Kilogram
Net weight
38 Kilogram
EAN
5715162603482
Application type
Indirect Heating & Secondary connections for DHW cylinder
Capacity [kW]
30 kW
Connection direction
Top and bottom
Contain batteries
No
DHW controller name
ECL 310 + pump
Heating circuit - control
Pressure independent control valve
Heating control type
Electronic
Heating controller name
ECL 310/AHQM/AMV150
Heating HEX type
XB06H-1 40
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
Type 2
Supply temperature construction [˚C]
120 °C
Type
VX Solo II HWS
003L3594
AHQM, PN 16, DN 15, Flow rate [m³/h]: 0.20 - 1.00, External Thread, G 3/4 A, Mounting version: Free
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8237
Expansion 12L 515x200mm
004U8603
Kappe f/Akva Lux VX2
004U8634
Gasket 1" EDPM 282 (10 pcs)
082G3090
Electrical actuators, AMV 150, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087B1184
ESMB-12, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3821
ECL Application keys, A237
