145G0092
Part Number: 145G0092
Product Information
Extended Description

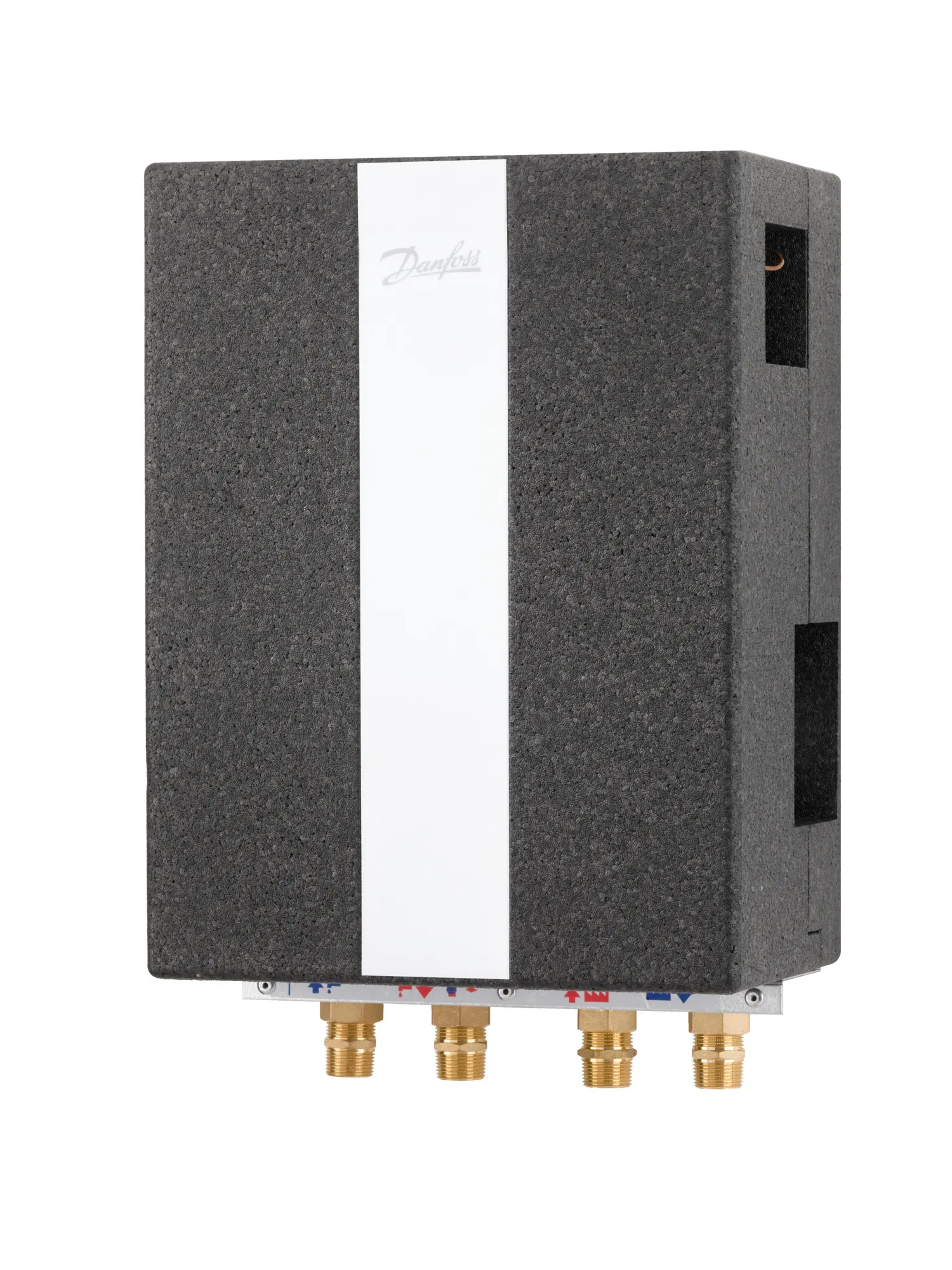

145G0092 Danfoss: Product Type: Akva Lux II, fully insulated, Type 2, 16 bar, 110 °C, PTC2 + P
Gross weight
9.5 Kilogram
Net weight
9 Kilogram
Volume
34.44 Cubic decimeter
EAN
5715162433621
Application type
Instantaneous DHW
Capacity [kW]
64 kW
China RoHS compliance
Out of scope
Connection direction
Bottom
Contain batteries
No
DCW static pressure [bar] [Min]
2 bar
Depth with cover [mm]
210 mm
Depth without cover [mm]
190 mm
Description
Akva Lux II Type 2, (XB06H-1 40), complete insulation
DH connection size
3/4"
DH connection type
G ext. thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
55 kW
DHW capacity [kW] [Min]
37 kW
DHW circulation
Optional
DHW connection size
3/4"
DHW connection type
G ext. thread
DHW Control type
Flow/thermostatic
DHW controller name
PTC2 + P
DHW HEX type
XB06H-1 40
DHW pipe size
Ø18
Differential pressure controller
Integrated
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
463 mm
Height without cover [mm]
463 mm
HEX DHW brazed/gasketed material
Brazed copper
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Copper
Package depth [mm]
345 mm
Package height [mm]
210 mm
Package width [mm]
480 mm
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Supply temperature construction [˚C]
110 °C
Type
Akva Lux II, fully insulated
UK RoHS compliance
Out of scope
003L1011
Return temperature limiters, FJVR valves, DN 10, Angle
003L1047
Return temperature limiters, FJVR Sensor, 10 °C - 50 °C, Sensor type: Built-in sensor
004U8232
Gaskets 3/4" EDPM (50pcs)
144B2238
PTC2+P-regulator, kvs 3, nut
145H5066
XB06H-1-40_2_25_A_2G3/4
004U8442
Circulation set incl. pipe, for mounting on site
004U8554
Safety valve set 10 bar, incl. pipes for extension
004U8663
Cover, white-lacquered stainless steel H 410 x W 310 x D 210mm
145H3744
Redan ball valve 3/4" E/I, 60mm w.gasket
