145G0190
Part Number: 145G0190
Product Information
Extended Description

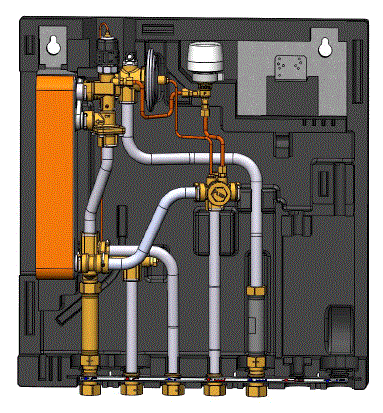

145G0190 Danfoss: EvoFlat WSS 1, w/bypass, w/1 CW meter, with EPP front
Gross weight
10.195 Kilogram
Net weight
8.995 Kilogram
Volume
82.11 Liter
EAN
5702424653910
Application type
Instantaneous DHW
China RoHS compliance
Out of scope
Connection direction
Bottom
Contain batteries
No
Cover material
White-lacquered In wall
Cover option
Extra
Depth with cover [mm]
150 mm
Depth without cover [mm]
105 mm
Description
EvoFlat WSS 1, w/bypass, w/1 CW meter, with EPP front
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
45 kW
DHW capacity [kW] [Min]
37 kW
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
DHW HEX type
XB06H-1 26
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Fitting Piece
Energy meter return and cold water meter
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating circuit - control
Thermostat
Heating system type
DHW only
Height with cover [mm]
575 mm
Height without cover [mm]
575 mm
HEX heating brazed/gasketed material
Copper
Manufacturer's name
Danfoss
Number of households [Max]
2
Number of households [Min]
1
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 1
Supply temperature construction [˚C]
95 °C
Type
EvoFlat WSS
UK RoHS compliance
Out of scope
Width with cover [mm]
545 mm
Width without cover [mm]
545 mm
145H4537
Small stations accessories, Mountingrail set 3xDVGW 2xSTD76mm Evof.W
145H4900
Small stations accessories, Recess Box w/Mount. rail W610/H910/D150
145H4901
Small stations accessories, Recess Box door+frame W610/H910
