145G0255
Part Number: 145G0255
Product Information
Extended Description

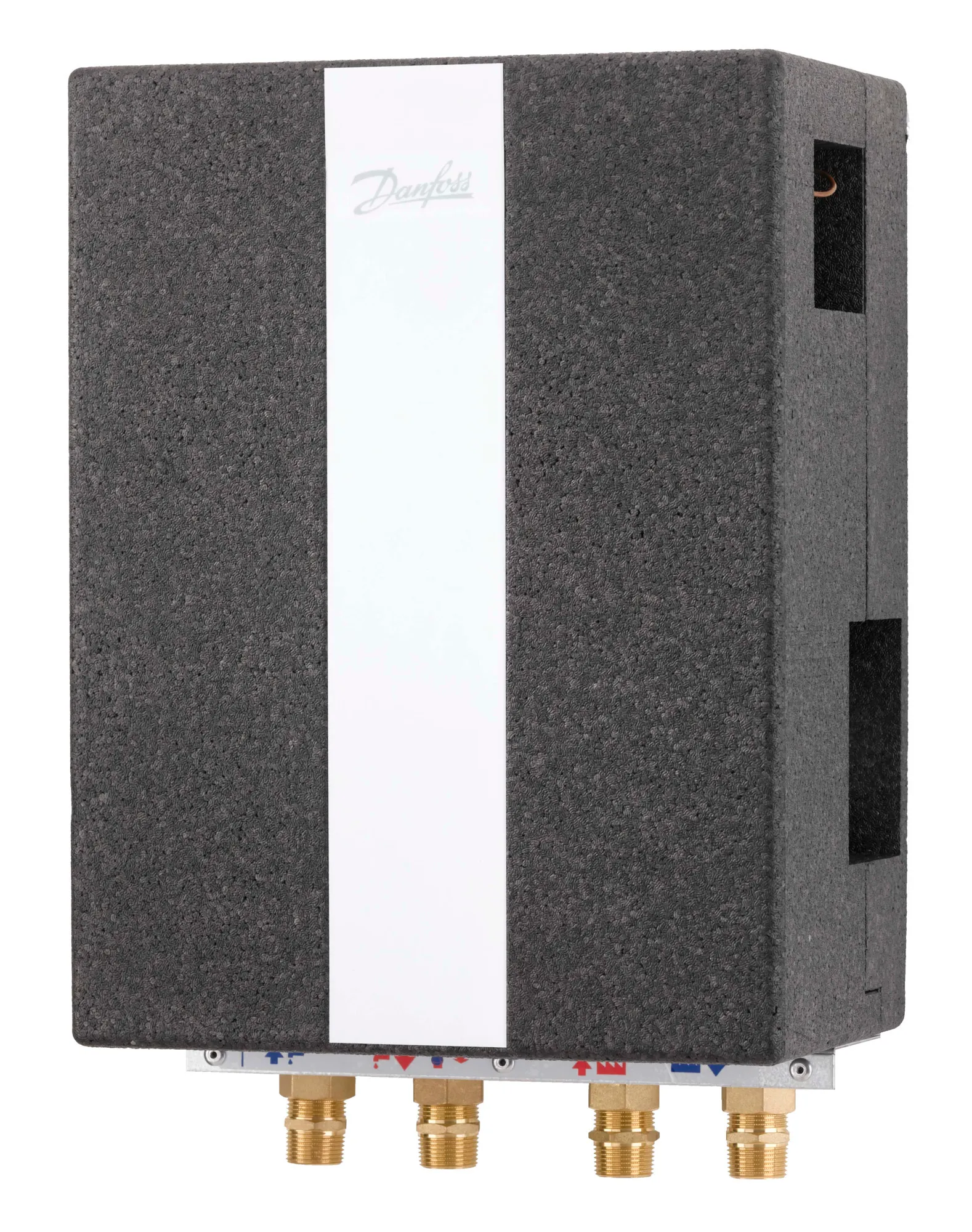

145G0255 Danfoss: Product Type: Akva Vita II, Type 1, 16 bar, 110 °C, PM2+P
Gross weight
9.5 Kilogram
Net weight
9 Kilogram
EAN
5702428527613
Application type
Instantaneous DHW
Capacity [kW]
57 kW
China RoHS compliance
Out of scope
Contain batteries
No
Description
Akva Vita II, Type 1, without summer bypass
DHW Control type
Flow-thermostatic
DHW controller name
PM2+P
DHW HEX type
XB06H-1 26
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 1
Supply temperature construction [ËšC]
110 °C
Type
Akva Vita II
UK RoHS compliance
Out of scope
