145G0298
Part Number: 145G0298
Product Information
Extended Description

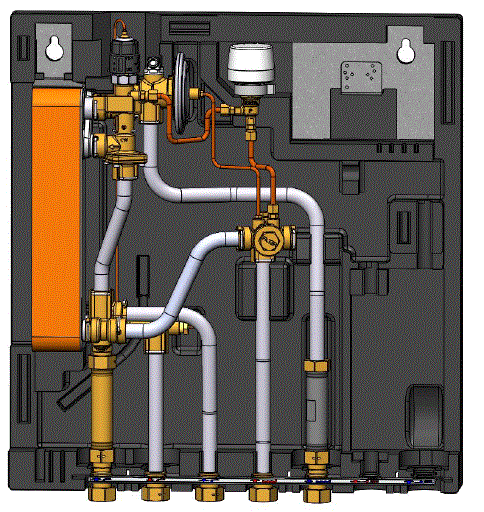

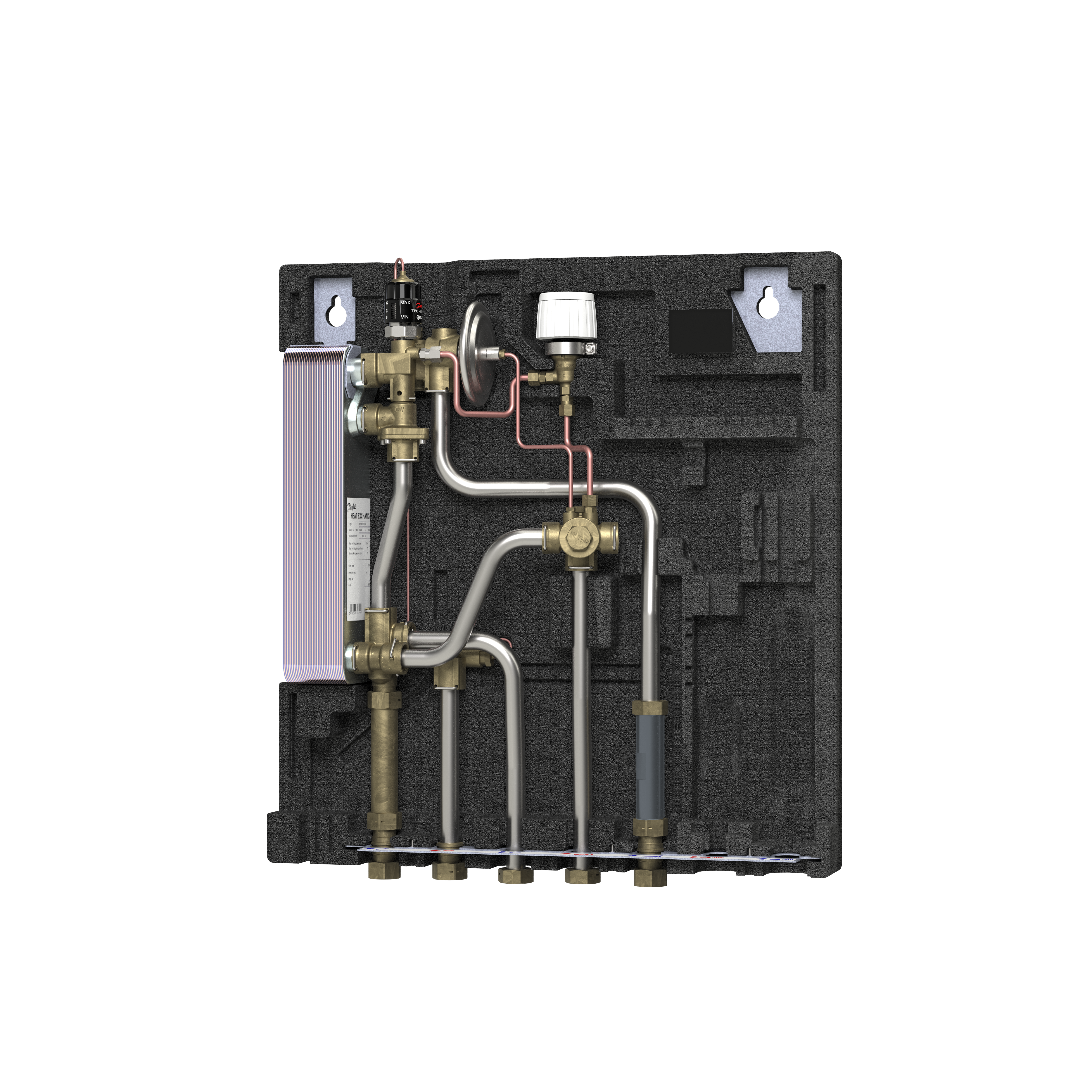

145G0298 Danfoss: EvoFlat Water Heater 3 TPC-M Circ. Cover
Gross weight
16.14 Kilogram
Net weight
14.94 Kilogram
Volume
82.11 Liter
EAN
5702424654108
Application type
Instantaneous DHW
China RoHS compliance
Out of scope
Connection direction
Bottom
Contain batteries
No
Cover material
White-lacquered In wall
Cover option
Included
DCW static pressure [bar] [Min]
2 bar
Description
EvoFlat Water Heater 3 TPC-M Circ. Cover
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW controller name
TPC-M
DHW HEX type
XB06H-1 60
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating circuit - control
Thermostat
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 3
Supply temperature construction [˚C]
95 °C
Type
EvoFlat WSS
UK RoHS compliance
Out of scope
