145G0314
Part Number: 145G0314
Product Information
Extended Description

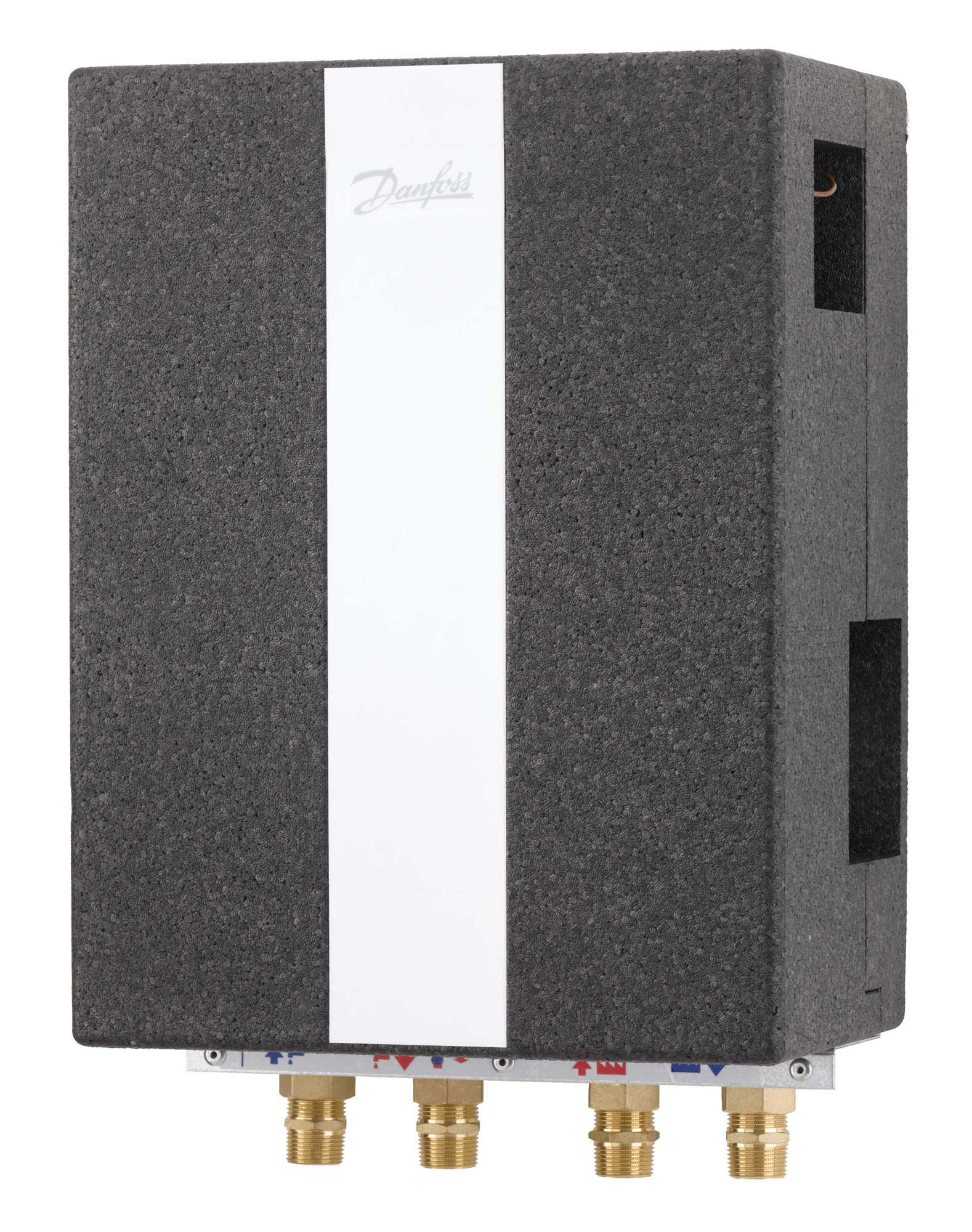

145G0314 Danfoss: Product Type: Akva Vita II, Type 1, 16 bar, 110 °C, PM2+P
Gross weight
10.5 Kilogram
Net weight
9.5 Kilogram
EAN
5715162511633
Application type
Instantaneous DHW
Capacity [kW]
35 kW
Contain batteries
No
Description
Akva Vita II, Type 1
DHW Control type
Flow control
DHW controller name
PM2+P
DHW HEX type
XB06H-1 26
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 1
Supply temperature construction [ËšC]
110 °C
Type
Akva Vita II
