145G0326
Part Number: 145G0326
Product Information
Extended Description

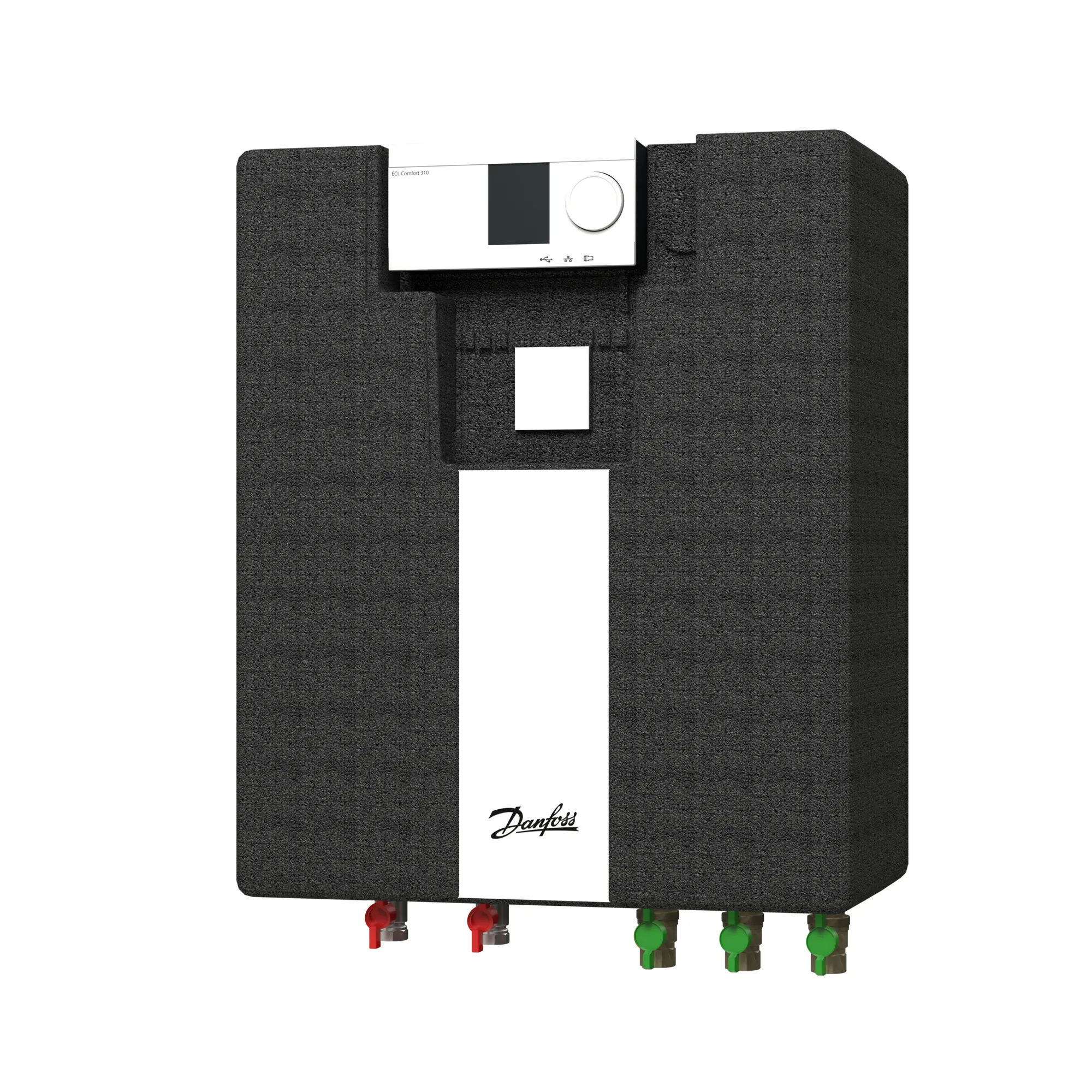

145G0326 Danfoss: Product Type: ThermoDual FLS Mini, Type 1, 16 bar, 90 °C, No Controller
Gross weight
17.5 Kilogram
Net weight
17 Kilogram
EAN
5702424536527
Application type
Fresh water modules
Capacity [kW]
70 kW
China RoHS compliance
Out of scope
Connection direction
Bottom
Contain batteries
No
Description
ThermoDual FLS Mini, without ECL
DH connection type
G int. Thread
DH pipe size
Ø18
DHW circulation
Yes
DHW connection type
G int. Thread
DHW Control type
Electronic
DHW controller name
No Controller
DHW HEX type
XB06
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 1
Supply temperature construction [˚C]
90 °C
Type
ThermoDual FLS Mini
004B1216
Micro Plate heat exchanger, XB06H+-1, Number of plates: 36
004B6098
Redan ball valve 3/4" E/I, short 60,5mm
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8634
Gasket 1" EDPM 282 (10 pcs)
144H1461
Kuglevent.3/4"M/F DVGW T-greb
