145G0330
Part Number: 145G0330
Product Information
Extended Description

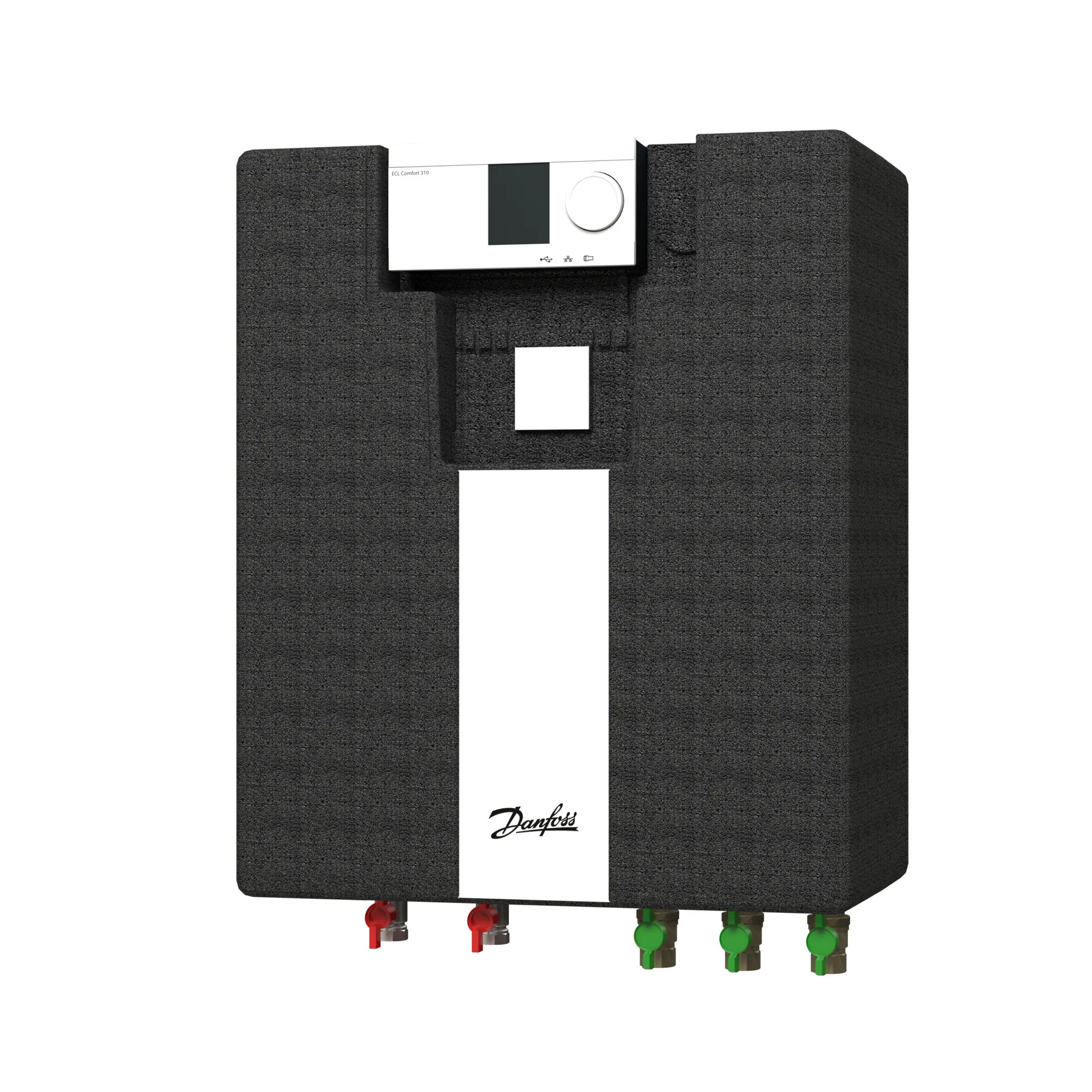

145G0330 Danfoss: Product Type: ThermoDual FLS Mini, Type 1, 16 bar, 110 °C, PTC2+P
Gross weight
9.5 Kilogram
Net weight
9 Kilogram
Volume
179.393 Liter
EAN
5702424286583
Application type
Fresh water modules
Capacity [kW]
70 kW
Contain batteries
No
Description
ThermoDual FLS Mini Stainless Steel - ECL310
DH pipe size
Ø18
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Electronic
DHW controller name
PTC2+P
DHW HEX type
XB06H-1 StS 40
DHW pipe size
Ø18
HEX DHW brazed/gasketed material
Brazed stainless steel
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 1
Supply temperature construction [˚C]
110 °C
Type
ThermoDual FLS Mini
004B6098
Redan ball valve 3/4" E/I, short 60,5mm
004H4607
Micro Plate heat exchanger, XB06H-1, Number of plates: 36
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8634
Gasket 1" EDPM 282 (10 pcs)
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3205
ECA 35
087H3835
ECL Application keys, P318
144H1461
Kuglevent.3/4"M/F DVGW T-greb
