145G0357
Part Number: 145G0357
Product Information
Extended Description

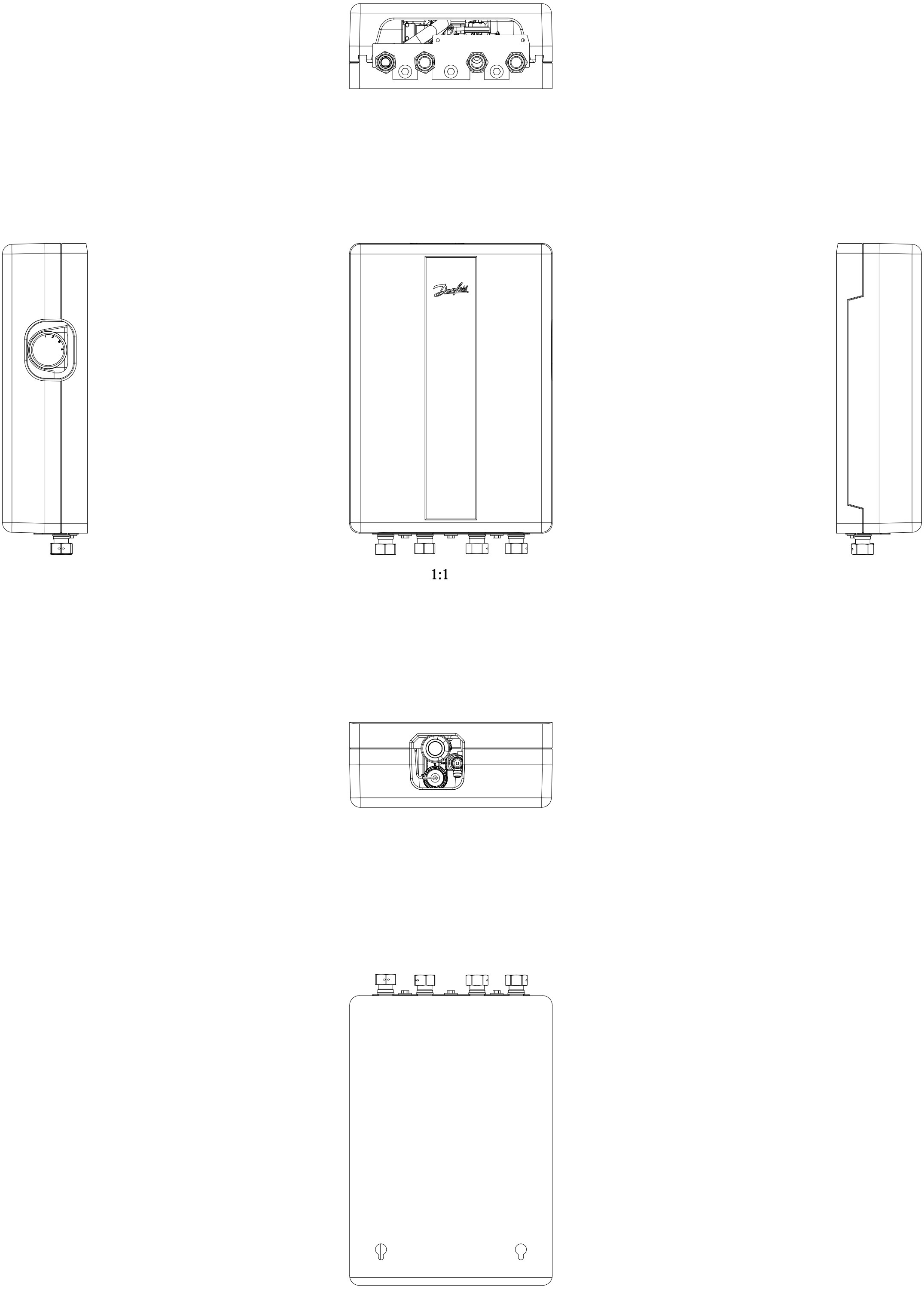

145G0357 Danfoss: EvoFlat TDV type 3 StS W EPP
Gross weight
9.93 Kilogram
Net weight
8.73 Kilogram
EAN
5702424645243
Application type
Instantaneous DHW
Connection direction
Bottom
Cover material
EPP Foam
Depth with cover [mm]
130 mm
Description
EvoFlat TDV type 3 StS W EPP
DH connection size
3/4"
DH connection type
Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
55 kW
DHW capacity [kW] [Min]
38 kW
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
Differential pressure controller
Integrated
HEX heating brazed/gasketed material
Stainless steel
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
Station size type
Type 3
Supply temperature construction [˚C]
95 °C
Type
EvoFlat WSS
