145G0365
Part Number: 145G0365
Product Information
Extended Description

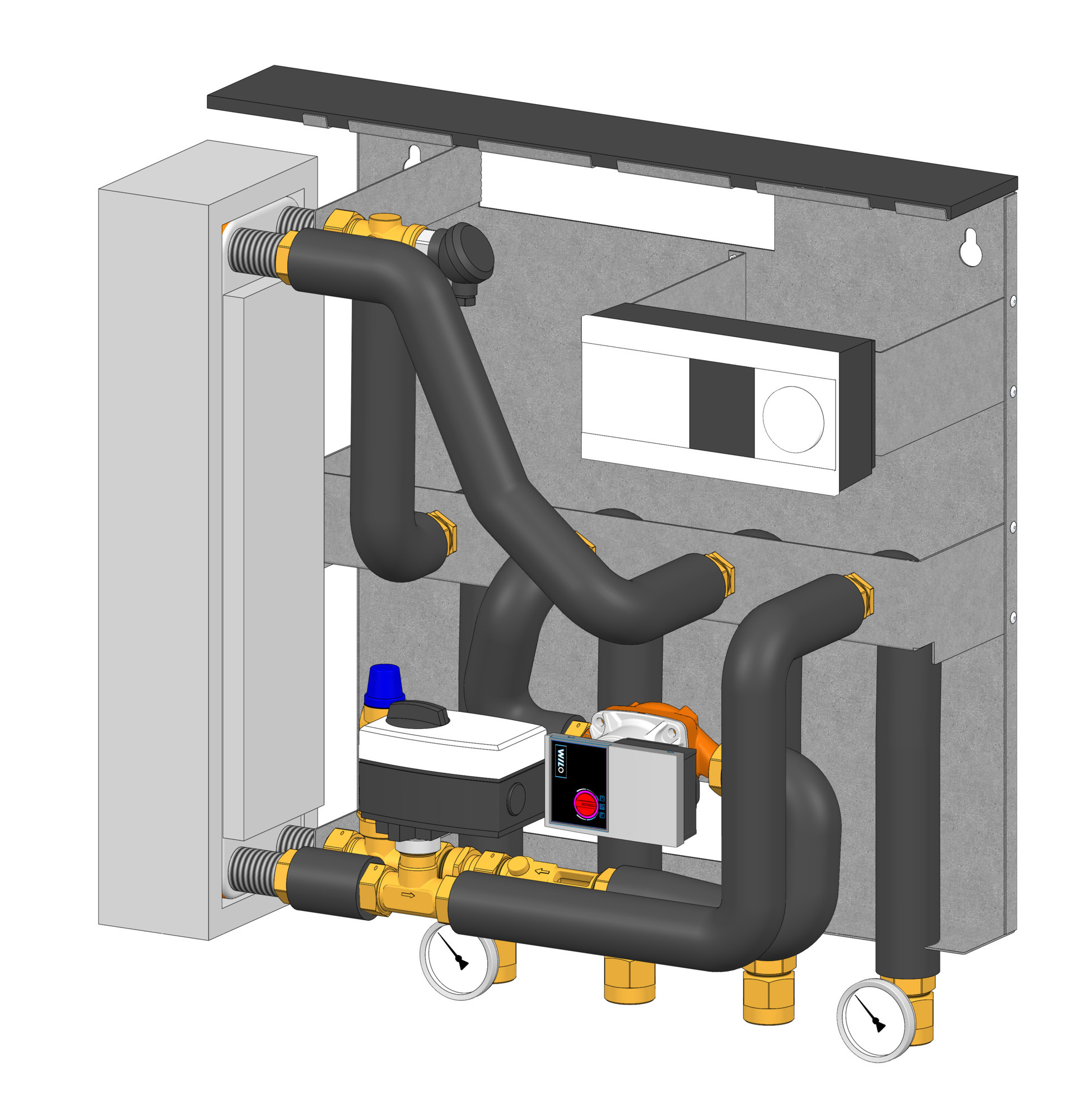

145G0365 Danfoss: Product Type: Akva Therm 22, Type 2, 16 bar, 110 °C, ECL 310/VM2/AMV30
Gross weight
40 Kilogram
Net weight
38 Kilogram
EAN
5702424692698
Application type
Instantaneous DHW
Capacity [kW]
95 kW
Contain batteries
No
Description
Akva Therm 22 M40 310/A217 EXPORT
DHW Control type
Electronic
DHW controller name
ECL 310/VM2/AMV30
DHW HEX type
XB37M-1 40
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
Type 2
Supply temperature construction [ËšC]
110 °C
Type
Akva Therm 22
004B1696
Micro Plate heat exchanger, XB37M-1, Number of plates: 40
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8634
Gasket 1" EDPM 282 (10 pcs)
065B2016
VM 2, PN 25, DN 20, 4.00 mÂł/h, G 1 A
082G3011
Electrical actuators, AMV 30, Supply voltage [V] AC: 230
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3807
ECL Application keys, A217
144B2266
Pakn.udst. ø28 x 39 x 3 EPDM 292
145H4538
Kappe f/Akva Therm 22 (2017) Danfoss
