145G0367
Part Number: 145G0367
Product Information
Extended Description

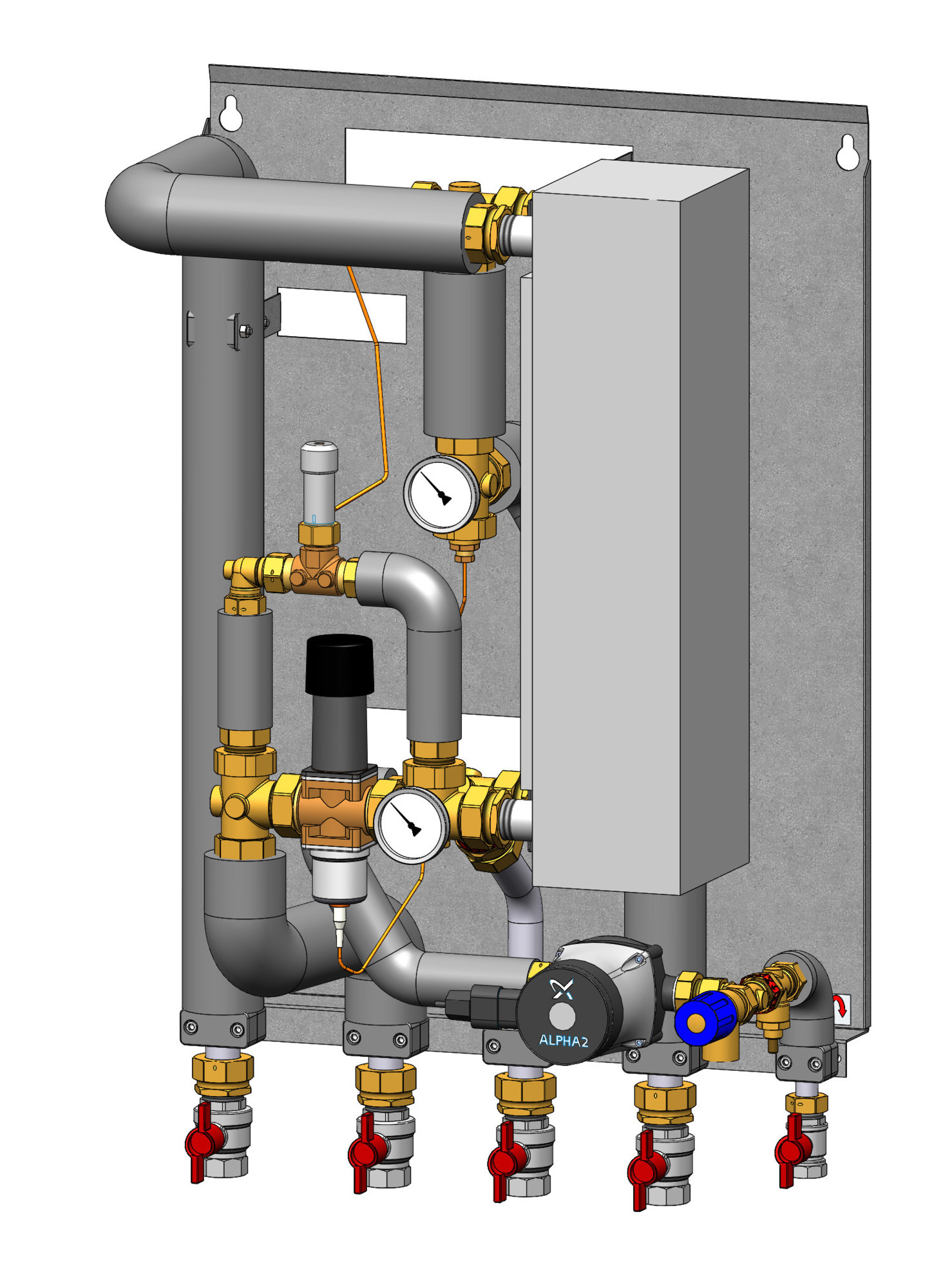

145G0367 Danfoss: Product Type: Akva Therm 28, Type 1, 16 bar, 110 °C, T°C200 + AVTB
Gross weight
58 Kilogram
Net weight
56 Kilogram
EAN
5715162537701
Application type
Instantaneous DHW
Capacity [kW]
150 kW
Contain batteries
No
Description
Akva Therm 28, XB37M-1 50 T°C200 + AVTB
DHW Control type
Thermostatic
DHW controller name
T°C200 + AVTB
DHW HEX type
XB37M-1 50
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
Type 1
Supply temperature construction [ËšC]
110 °C
Type
Akva Therm 28
003N5116
AVTB (fast), PN 16, DN 25, 5.50 m³/h, 20 °C - 60 °C, 2.0 m, External Thread
004B1697
Micro Plate heat exchanger, XB37M-1, Number of plates: 50
004B6098
Redan ball valve 3/4" E/I, short 60,5mm
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8634
Gasket 1" EDPM 282 (10 pcs)
144B2266
Pakn.udst. ø28 x 39 x 3 EPDM 292
145H3094
Kuglehane 1"M/N (Female/Male) 52RR-1-008
145H5138
Cover Akva therm 28-35 danfoss
