145G0372
Part Number: 145G0372
Product Information
Extended Description

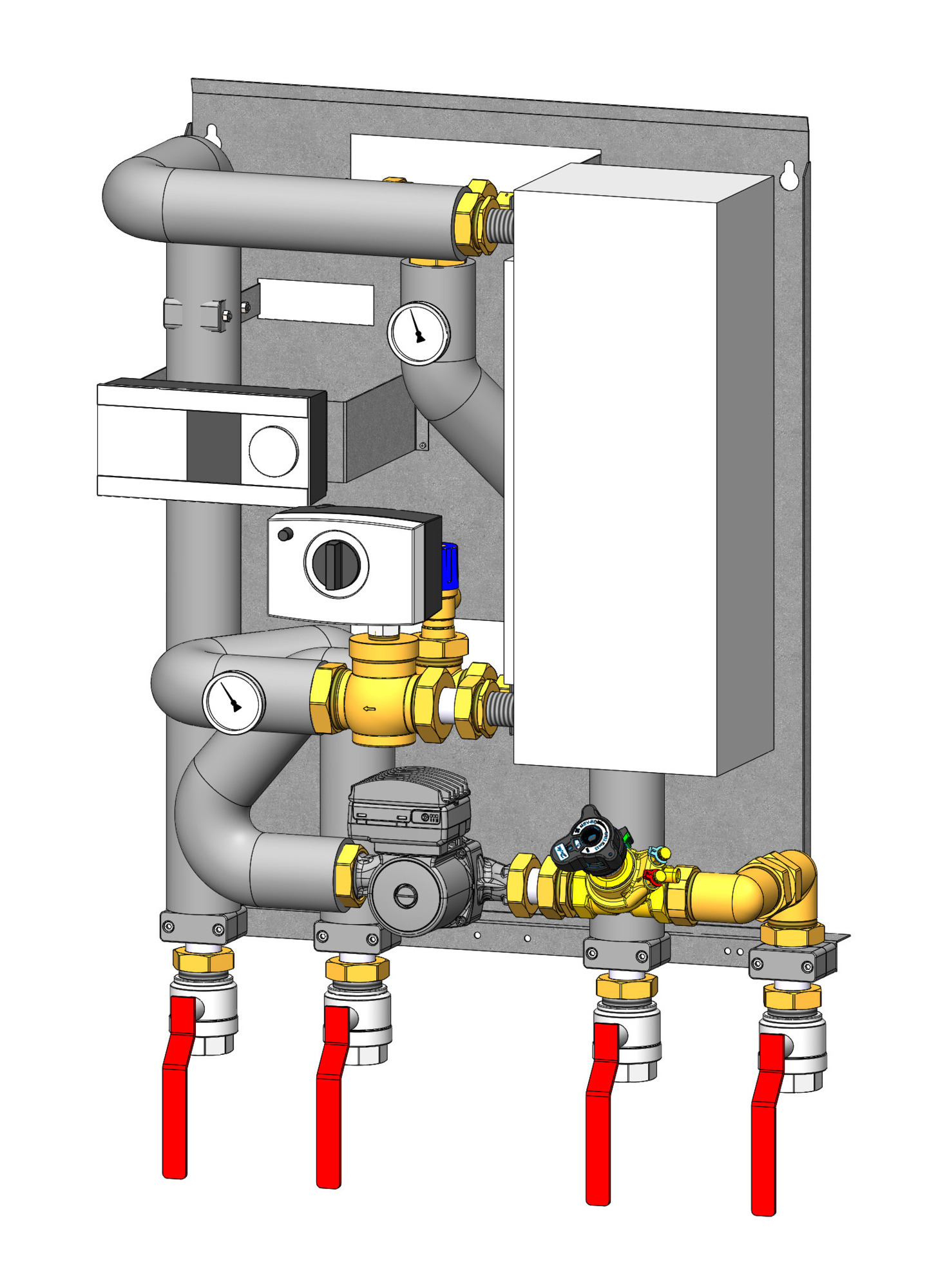

145G0372 Danfoss: Product Type: Akva Therm 35, Type 1, 16 bar, 110 °C, ECL 310/VM2/AMV30
Gross weight
58 Kilogram
Net weight
56 Kilogram
EAN
5715162537657
Application type
Instantaneous DHW
Capacity [kW]
250 kW
Contain batteries
No
DHW Control type
Electronic
DHW controller name
ECL 310/VM2/AMV30
DHW HEX type
XB37M-1 90
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
Type 1
Supply temperature construction [ËšC]
110 °C
Type
Akva Therm 35
004B1701
Micro Plate heat exchanger, XB37M-1, Number of plates: 90
004U8634
Gasket 1" EDPM 282 (10 pcs)
065B2019
VM 2, PN 25, DN 40, 16.00 mÂł/h, G 2 A
082G3011
Electrical actuators, AMV 30, Supply voltage [V] AC: 230
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3807
ECL Application keys, A217
145H3094
Kuglehane 1"M/N (Female/Male) 52RR-1-008
145H4371
Kuglehane 1½" M/N BRV
145H5138
Cover Akva therm 28-35 danfoss
