145G4426
Part Number: 145G4426
Product Information
Extended Description

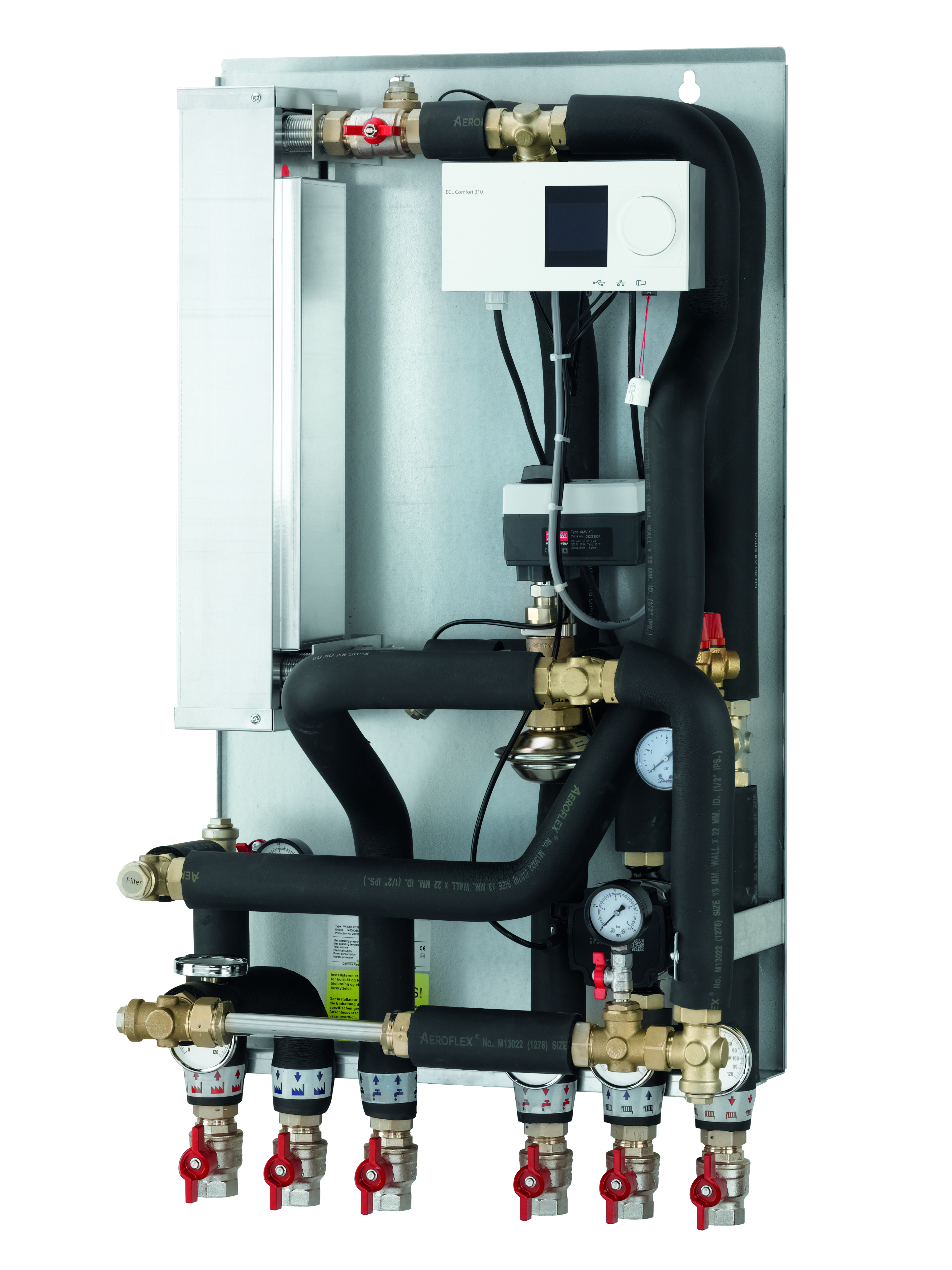

145G4426 Danfoss: Product Type: VX Solo 22, Type 2, 16 bar, 120 °C, Pressure independent control valve, VM2 / AMV 30
Gross weight
52 Kilogram
Net weight
50 Kilogram
EAN
5715162519585
Application type
Indirect heating & Instantaneous DHW
Capacity [kW]
44 kW
Connection direction
Bottom
Description
VX Solo 22 XB37M40 (44) 310/A230 ISO Std
DHW controller name
VM2 / AMV 30
Heating circuit - control
Pressure independent control valve
Heating control type
Electronic
Heating controller name
ECL 310/AVQM/AMV10
Heating HEX type
XB37M-1 40
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Supply temperature construction [ËšC]
120 °C
Type
VX Solo 22
