145G4427
Part Number: 145G4427
Product Information
Extended Description

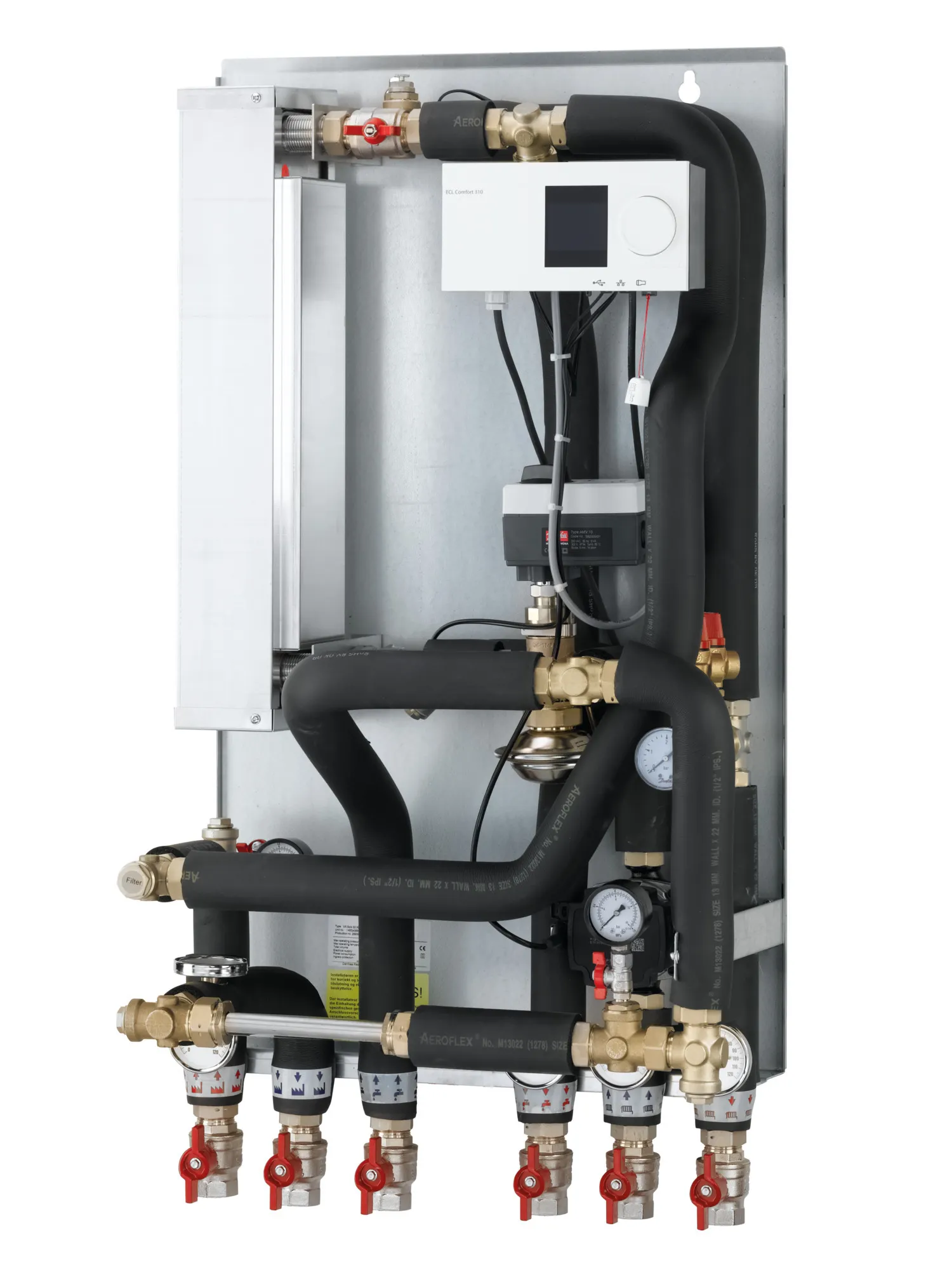

145G4427 Danfoss: Product Type: VX Solo 22, Type 1, 16 bar, 120 °C, Motorized control valve, ECL 310/VM2/AMV10
Gross weight
52 Kilogram
Net weight
50 Kilogram
EAN
5715162519554
Application type
Indirect heating & Instantaneous DHW
Capacity [kW]
25 kW
Connection direction
Bottom
Description
VX Solo 22 XB37M20 (25) 310/A266 ISO Std
DHW controller name
ECL 310/VM2/AMV10
Heating circuit - control
Motorized control valve
Heating control type
Electronic
Heating controller name
ECL 310/VS2/AMV10
Heating HEX type
XB37M-1 20
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 1
Supply temperature construction [ËšC]
120 °C
Type
VX Solo 22
