145G4707
Part Number: 145G4707
Product Information
Extended Description
145G4707 Danfoss: Product Type: VX 22, Type 1, 16 bar, 110 °C, ECL 310 / AVQM / AMV
Gross weight
52 Kilogram
Net weight
50 Kilogram
EAN
5715162511664
Application type
Indirect heating & Instantaneous DHW
China RoHS compliance
Out of scope
Contain batteries
No
Description

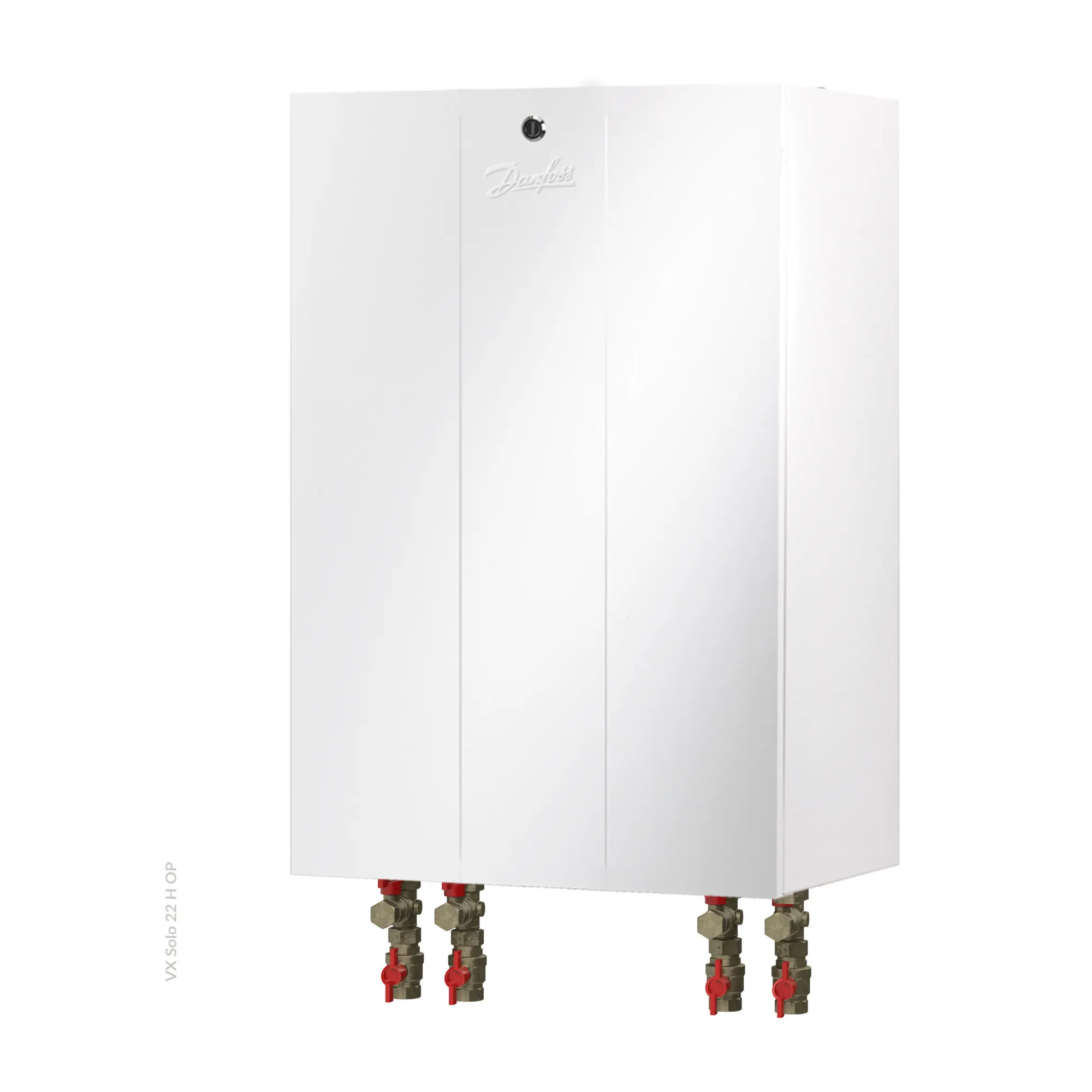

VX Solo22 H OP, ECL310/P330, 44kW, with heat meter
DHW HEX type
XB37M-1 30
Heating circuit - control
ECL 310 / AVQM / AMV
Heating control type
Electronic
Heating controller name
ECL 310/AVQM/AMV10
Heating HEX type
XB37M-1 30
HEX DHW brazed/gasketed material
Copper
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
Type 1
Supply temperature construction [˚C]
110 °C
Type
VX 22
