145G4777
Part Number: 145G4777
Product Information
Extended Description

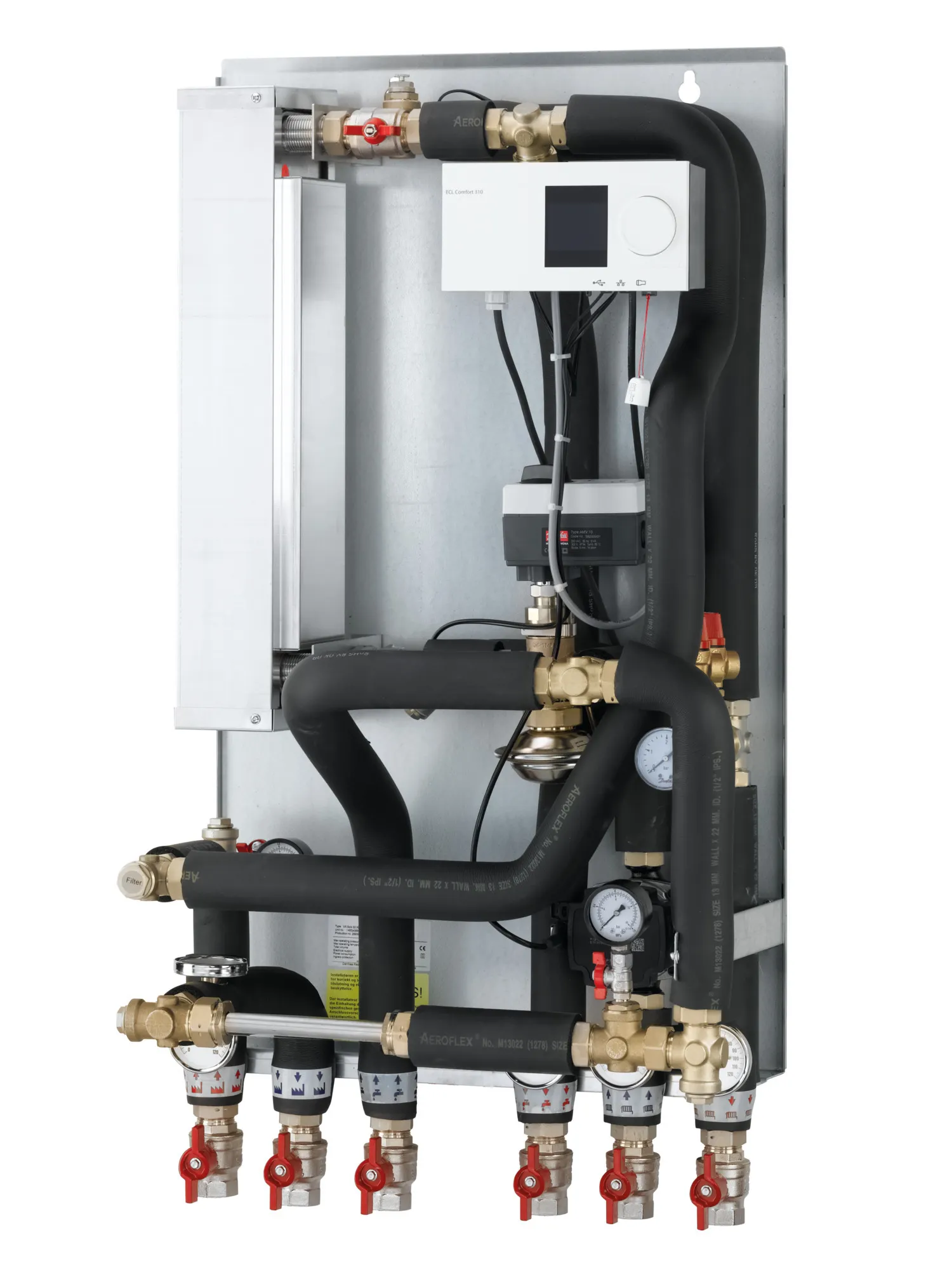

145G4777 Danfoss: Product Type: VX Solo 22, Type 2, 16 bar, 120 °C, Pressure independent control valve
Gross weight
52 Kilogram
Net weight
50 Kilogram
EAN
5715162663714
Application type
Indirect heating & Instantaneous DHW
Capacity [kW]
44 kW
Connection direction
Bottom
Contain batteries
No
Heating circuit - control
Pressure independent control valve
Heating control type
Electronic
Heating controller name
ECL 310/AVQM/AMV10
Heating HEX type
XB37M-1 40
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
Type 2
Supply temperature construction [ËšC]
120 °C
Type
VX Solo 22
003H6735
AVQM, PN 16, DN 15, Flow rate [mÂł/h]: 0.03 - 0.90, External Thread, G 3/4 A, Mounting version: Free
004B1696
Micro Plate heat exchanger, XB37M-1, Number of plates: 40
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8634
Gasket 1" EDPM 282 (10 pcs)
082G3001
Electrical actuators, AMV 10, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3802
ECL Application keys, A230
087N0011
ESMC, Sensors
145H3094
Kuglehane 1"M/N (Female/Male) 52RR-1-008
