145G4779
Part Number: 145G4779
Product Information
Extended Description

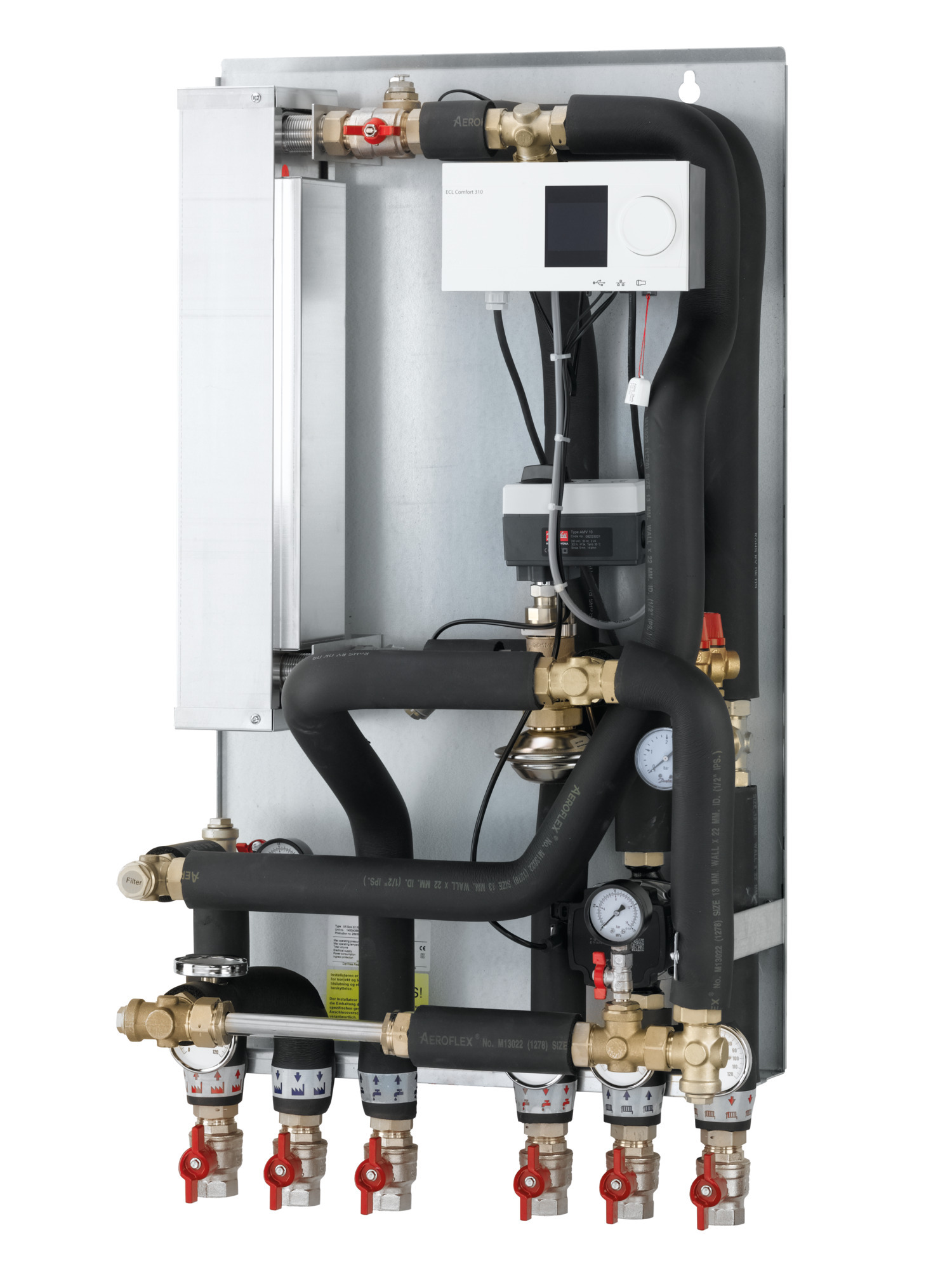

145G4779 Danfoss: Product Type: VX Solo 22, Type 1, 16 bar, 120 °C, Motorized control valve, ECL 310/VS2/AMV10
Gross weight
52 Kilogram
Net weight
50 Kilogram
EAN
5715162663929
Application type
Indirect heating & Instantaneous DHW
Capacity [kW]
25 kW
Connection direction
Bottom
Contain batteries
No
DHW controller name
ECL 310/VS2/AMV10
Heating circuit - control
Motorized control valve
Heating control type
Electronic
Heating controller name
ECL 310/VS2/AMV10
Heating HEX type
XB37M-1 20
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
Type 1
Supply temperature construction [ËšC]
120 °C
Type
VX Solo 22
003H6231
AVP-F, PN 16, DN 15, 2.50 mÂł/h, 0.50 bar - 0.50 bar, External Thread, G 3/4 A
004B1692
Micro Plate heat exchanger, XB37M-1, Number of plates: 20
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8634
Gasket 1" EDPM 282 (10 pcs)
065F2120
VS 2, PN 16, DN 20, 2.50 mÂł/h, G 1 A
082G3001
Electrical actuators, AMV 10, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087B1183
ESMU-250, Pt 1000, Stainless steel
087B1191
Pockets for ESMU
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
