145H0331
Part Number: 145H0331
Product Information
Extended Description

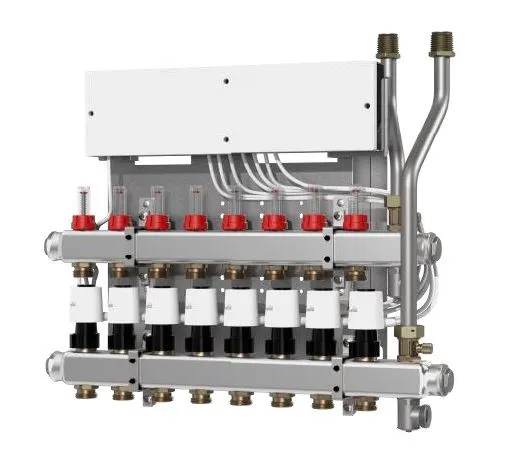

145H0331 Danfoss: Stainless steel manifold, 11 loops, ICON Wiring center
Gross weight
12.234 Kilogram
Net weight
10 Kilogram
Volume
106.143 Liter
EAN
5702428525213
Actuator
230V
Application type
Distribution units
CE evaluated
Yes
Connection direction
Top
Control
ICONTM Wiring center
Description
Stainless steel manifold, 11 loops, ICON Wiring center
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating manifold type
Stainless steel with flow meter and manual air vent
HE connection size
3/4"
HE connection type
G ext. thread
In scope of WEEE
Yes
Number of connections
2
Number of floor heating manifold connections
11
Pressure nominal primary [bar]
6 bar
Product group
Distribution units
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Supply temperature construction [ËšC]
60 °C
Supply voltage [V]
230V Hz 50
Type
Warranty & Service
Version
Right
