145H0903
Part Number: 145H0903
Product Information
Extended Description

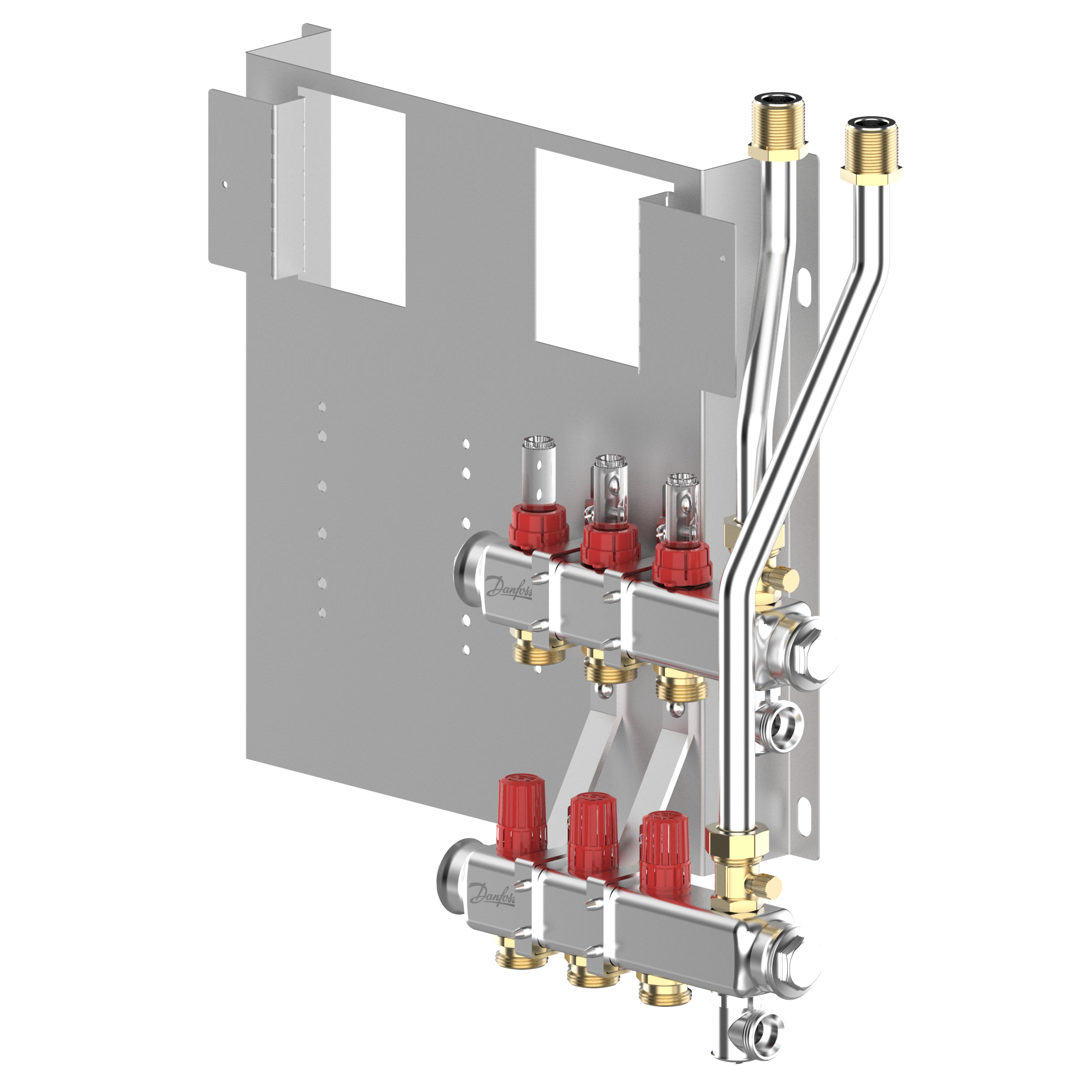

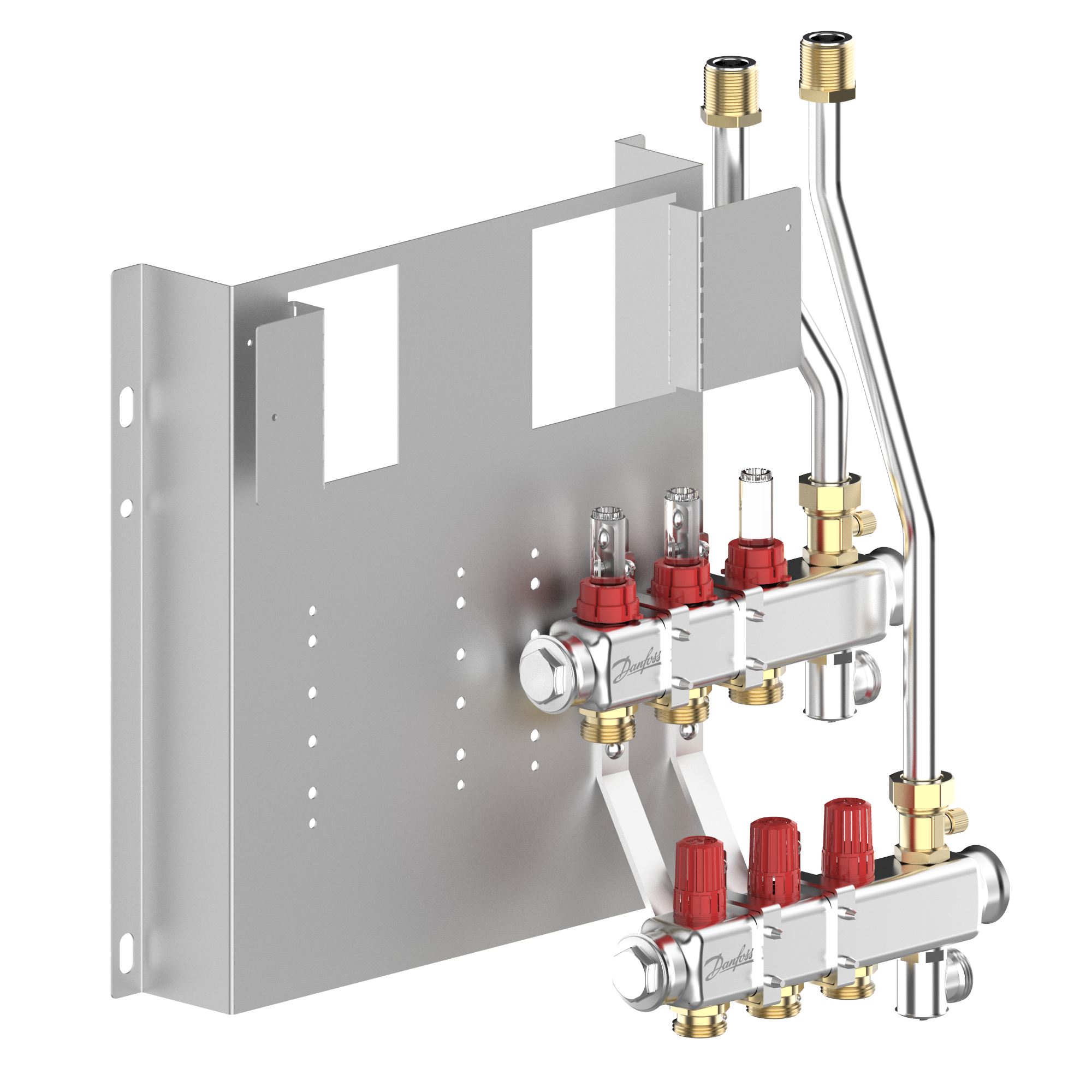

145H0903 Danfoss: Stainless steel manifold, 3 loops
Gross weight
6 Kilogram
Net weight
6 Kilogram
Volume
40.8 Liter
EAN
5702424295493
Application type
Distribution units
CE evaluated
Out of scope
Connection direction
Top
Control
No control
Description
Stainless steel manifold, 3 loops
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating manifold type
Stainless steel with flow meter and manual air vent
HE connection size
3/4"
HE connection type
G ext. thread
In scope of WEEE
No
Number of connections
2
Number of floor heating manifold connections
3
Pressure nominal primary [bar]
6 bar
Product group
Distribution units
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Supply temperature construction [ËšC]
60 °C
Type
Distribution unit SG
UL evaluated
Out of scope
Version
Right
088U0819
Replacement flowmeter for FHF & SSM manifolds
013G7376
Service built-in valve for manifold
