145H0905
Part Number: 145H0905
Product Information
Extended Description

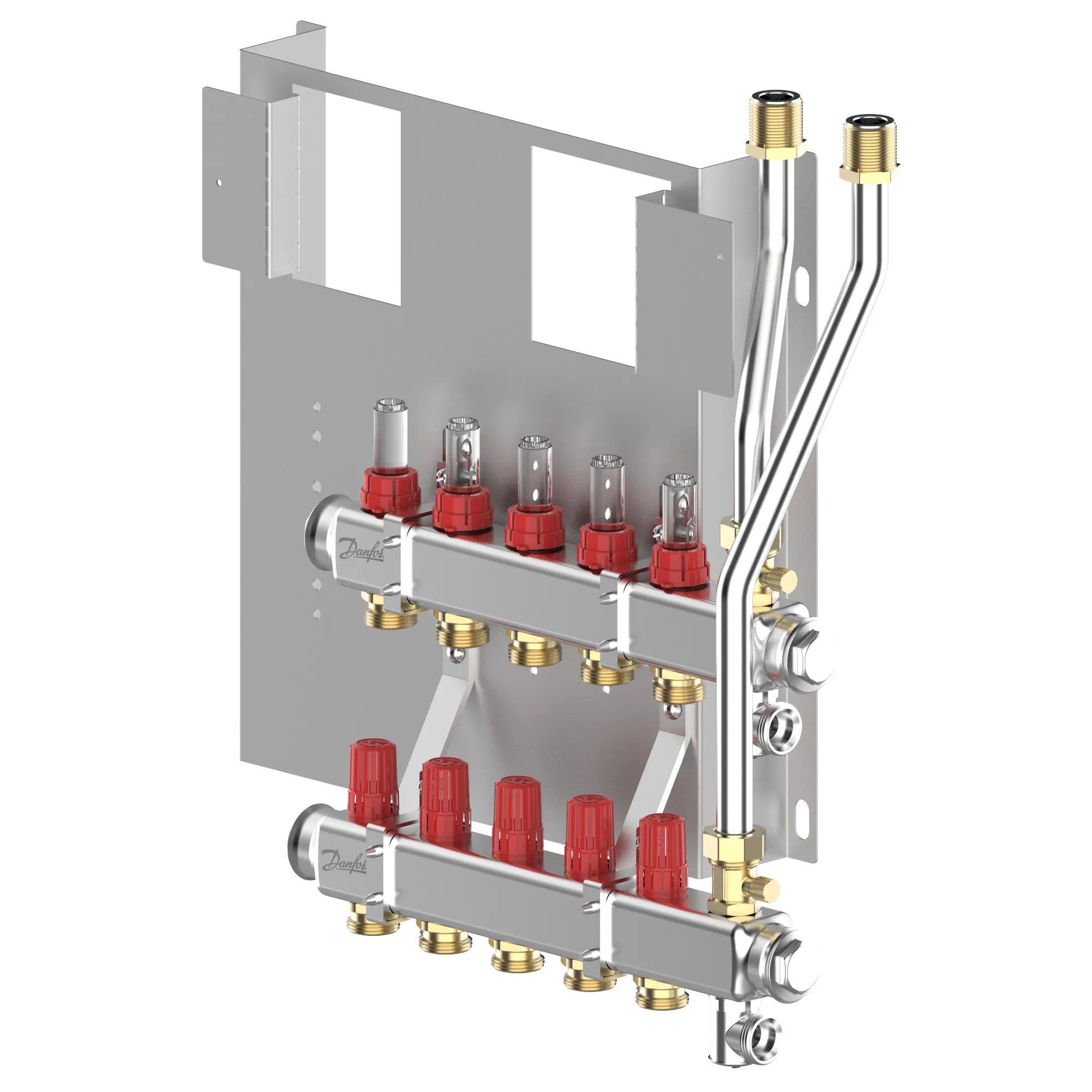

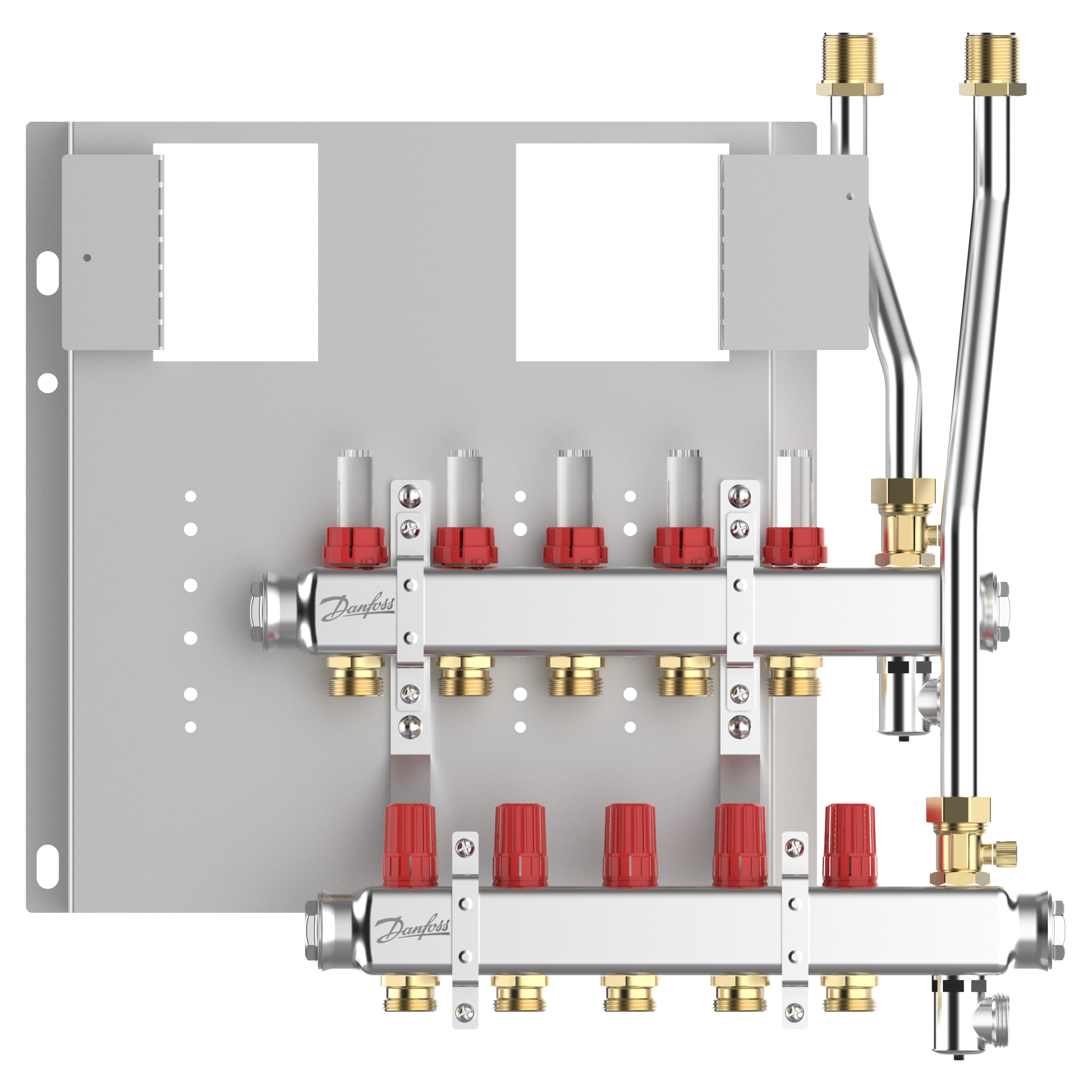

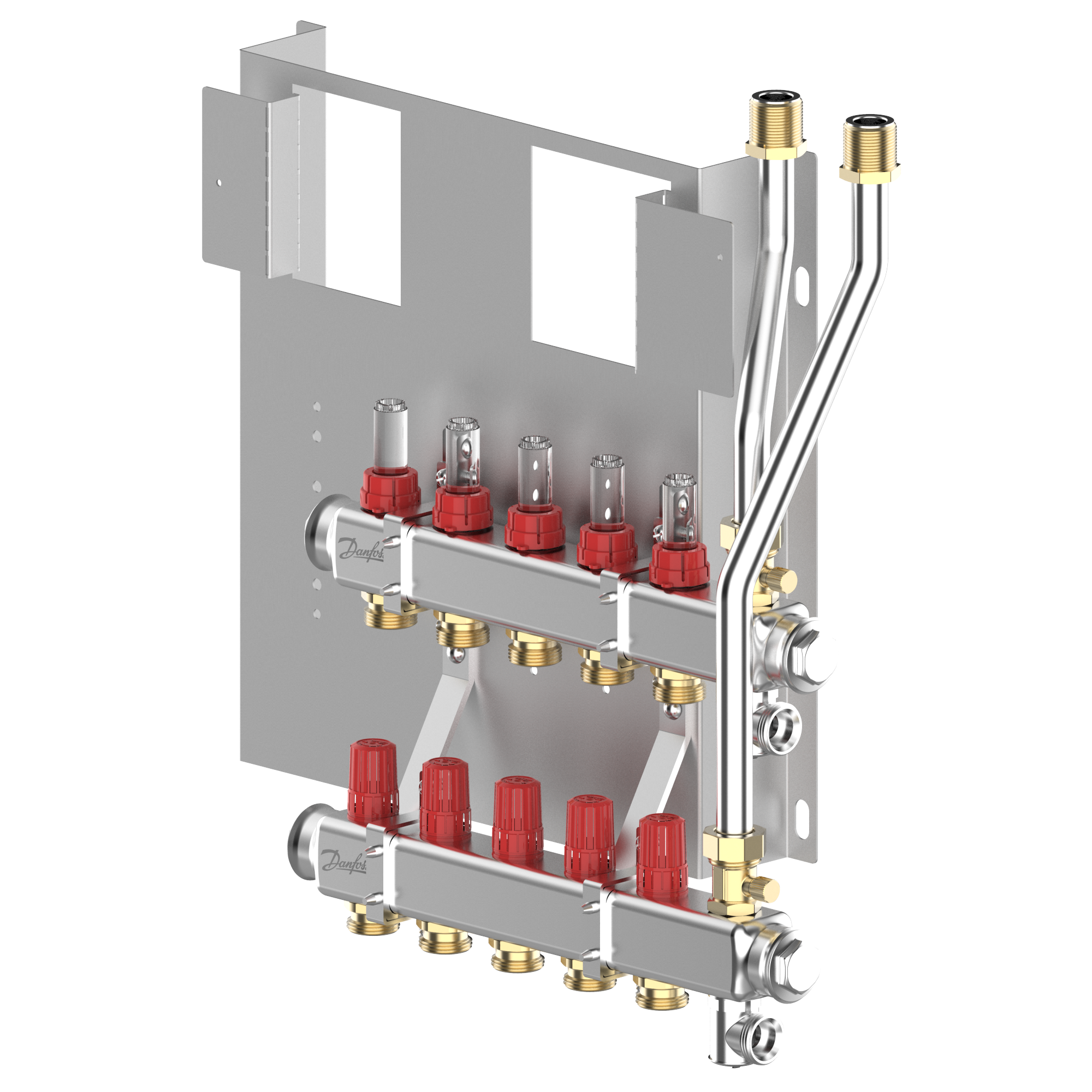

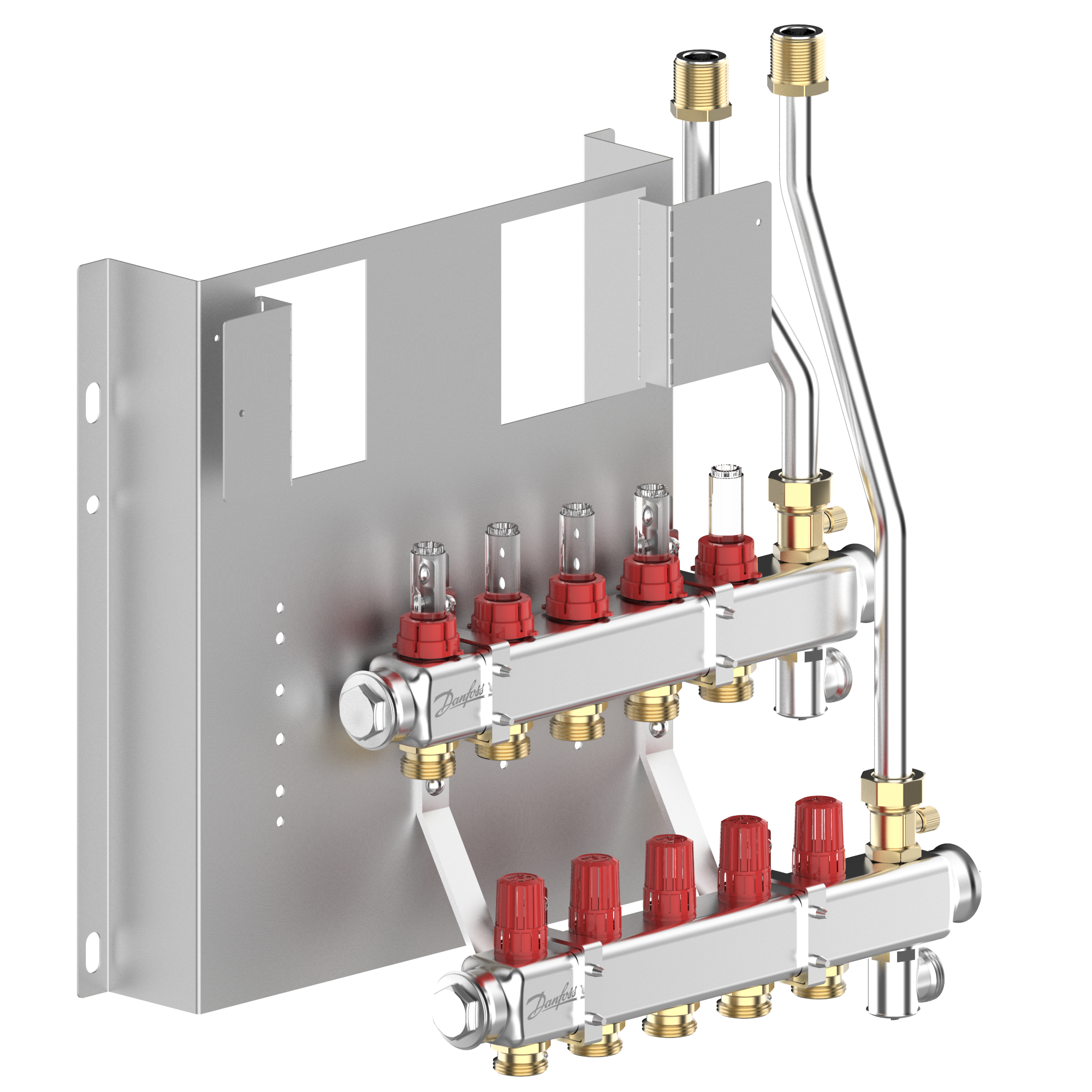

145H0905 Danfoss: Stainless steel manifold, 5 loops
Gross weight
6.787 Kilogram
Net weight
6.787 Kilogram
Volume
40.8 Liter
EAN
5702424301934
Application type
Distribution units
CE evaluated
Out of scope
Connection direction
Top
Control
No control
Description
Stainless steel manifold, 5 loops
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating manifold type
Stainless steel with flow meter and manual air vent
HE connection size
3/4"
HE connection type
G ext. thread
In scope of WEEE
No
Number of connections
2
Number of floor heating manifold connections
5
Pressure nominal primary [bar]
6 bar
Product group
Distribution units
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Supply temperature construction [ËšC]
60 °C
Type
Distribution unit SG
UL evaluated
Out of scope
Version
Right
013G7376
Service built-in valve for manifold
088U0819
Replacement flowmeter for FHF & SSM manifolds
