145H0925

Part Number: 145H0925
145H0925
Manufacturer
Danfoss
Part number
145H0925
Category

Product Information

Extended Description

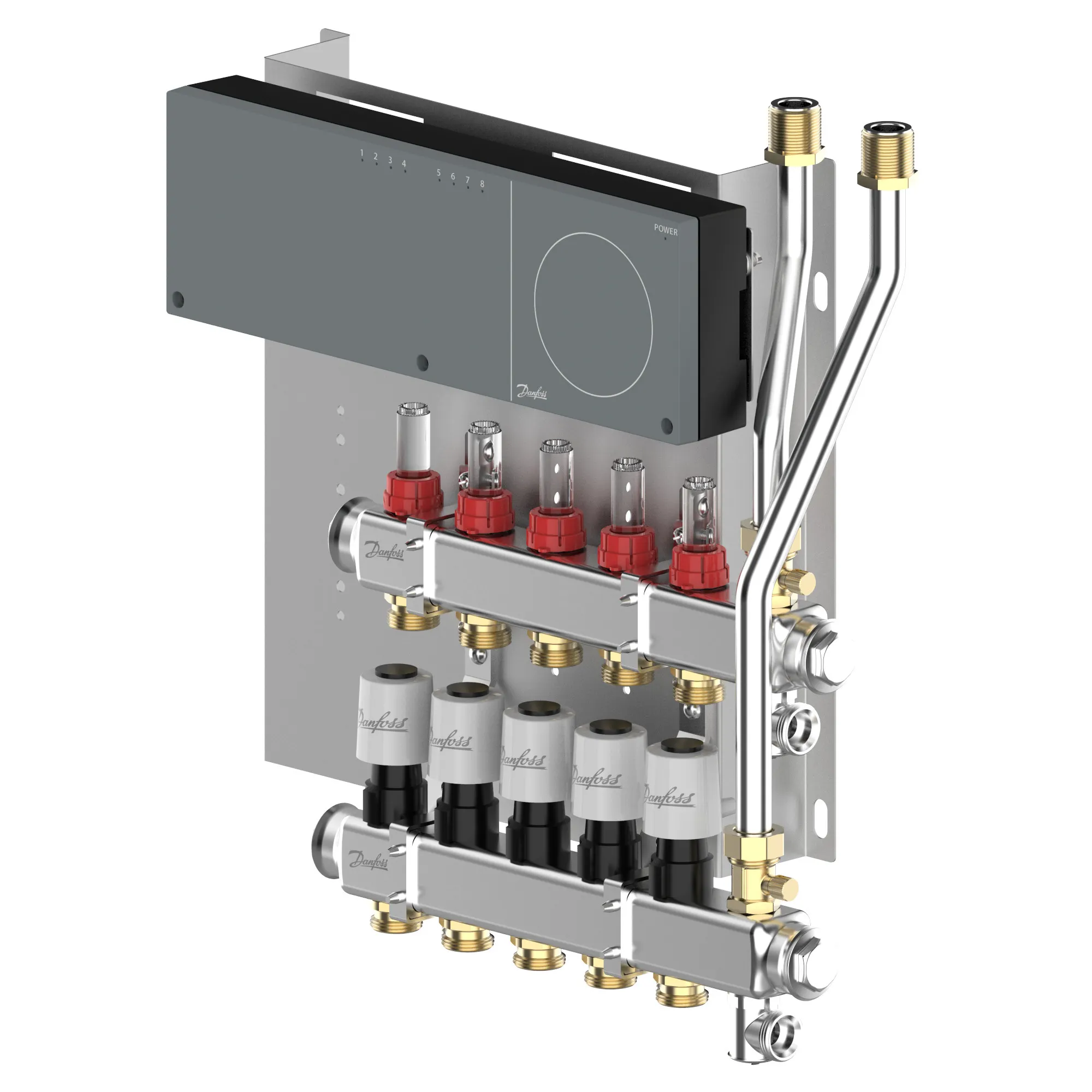

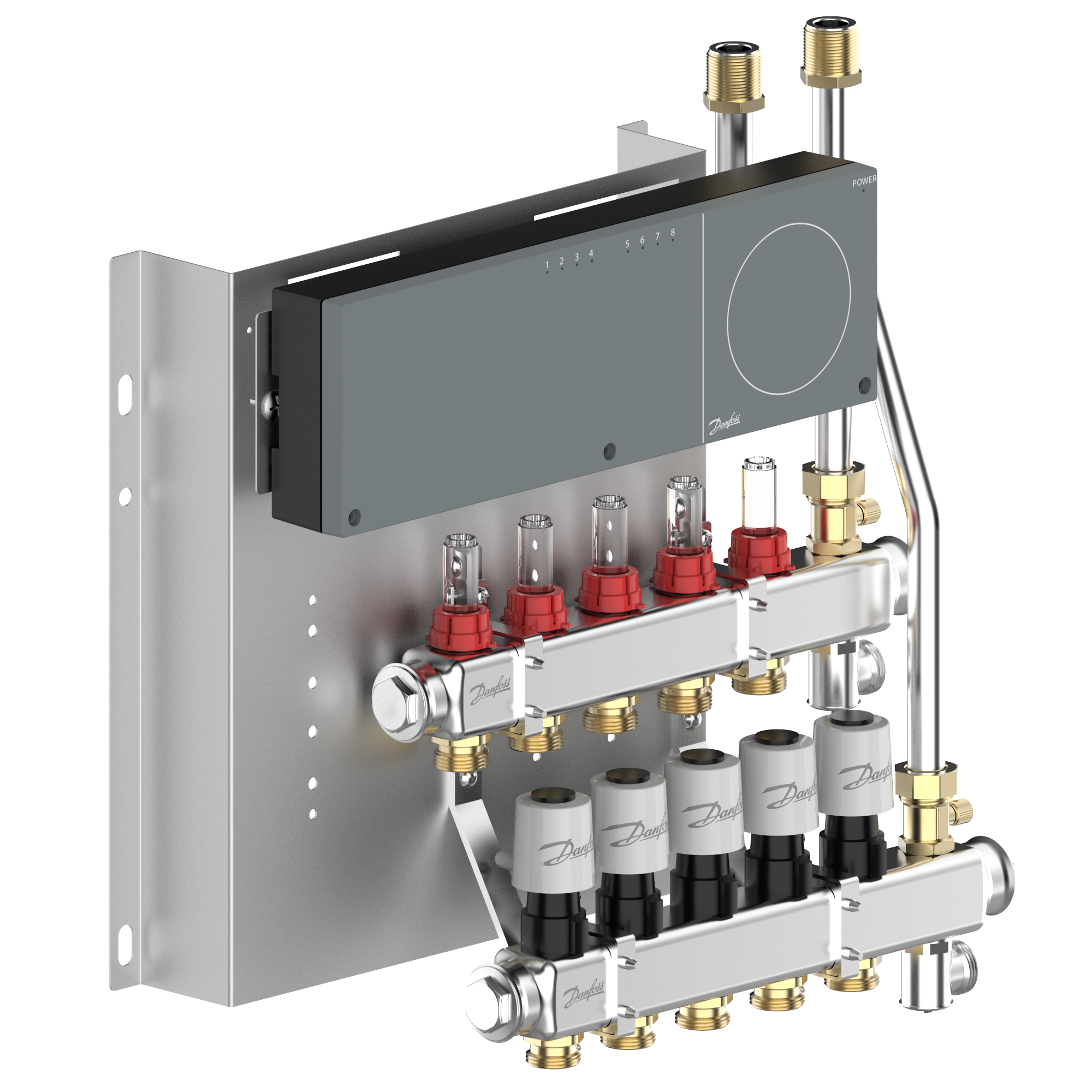

145H0925 Danfoss: Stainless steel manifold, 5 loops, ICON Wiring center
Gross weight
9.35 Kilogram
Net weight
9.35 Kilogram
Volume
40.8 Liter
EAN
5702424302030
Actuator
230V
Application type
Distribution units
Approval
CE
CE evaluated
Yes
Connection direction
Top
Control
ICONTM Wiring center
Description
Stainless steel manifold, 5 loops, ICON Wiring center
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating manifold type
Stainless steel with flow meter and manual air vent
HE connection size
3/4"
HE connection type
G ext. thread
In scope of WEEE
Yes
Number of connections
2
Number of floor heating manifold connections
5
Pressure nominal primary [bar]
6 bar
Product group
Distribution units
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Supply temperature construction [ËšC]
60 °C
Supply voltage [V]
230V Hz 50
Type
Distribution unit SGC
UL evaluated
Out of scope
Version
Right
013G7376
Service built-in valve for manifold
088U0819
Replacement flowmeter for FHF & SSM manifolds
088U1040
Floor Heating Controls, Danfoss Icon™ 230V Wiring Center, Wiring center, 230.0 V, Output voltage [V] AC: 230, Number of channels: 8, On-wall
088H3250
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 230, NC, 1.150 m
088U1000
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, In-wall
088U1010
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, In-wall
088U1005
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, On-wall
088U1015
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, On-wall
088U1020
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, In-wall
088U1025
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, On-wall
088U1110
Danfoss Icon Floor Sensor for 24 V and 230 V
Distribution units SG/SGC/SGCI Distribution units SG/SGC/SGCI Danfoss EU 240806EN670901 Distribution unit, SGC 5-loops DISTRIBUTION UNIT SGC-FN_ 5 CONN_145H0925_TWA_2D 145H0925_Distribution_unit_SGC_5-loops 145H0925_Distribution_unit_SGC_5-loops Distribution unit, SGC 5-loops Distribution unit, SGC 5-loops
