145H0947
Part Number: 145H0947
Product Information
Extended Description

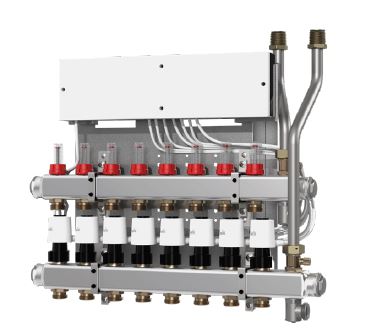

145H0947 Danfoss: Stainless steel manifold, 7 loops, ICON1 Master controller
Gross weight
10.53 Kilogram
Net weight
10.48 Kilogram
Volume
103.2 Liter
EAN
5702424500337
Actuator
24V
Adaptive learning
Yes
Application type
Distribution units
Automatic balancing
Yes
CE evaluated
Yes
Connection direction
Top
Contain batteries
Yes
Control
ICON1TM Master controller
Description
Stainless steel manifold, 7 loops, ICON1 Master controller
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating manifold type
Stainless steel with flow meter and manual air vent
HE connection size
3/4"
HE connection type
G ext. thread
In scope of WEEE
Yes
Number of connections
2
Number of floor heating manifold connections
7
Power per output [W] [Max]
3 W
Pressure nominal primary [bar]
6 bar
Product group
Distribution units
PWM
Yes
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Supply temperature construction [ËšC]
60 °C
Supply voltage [V]
230V Hz 50
Type
Warranty & Service
Valve excercise
Yes
Version
Right
013G7376
Service built-in valve for manifold
088U0819
Replacement flowmeter for FHF & SSM manifolds
088U1080
Floor Heating Controls, Danfoss Icon™ RT wireless, Room Thermostat, 3.0 V, Number of channels: 0, On-wall
088U1081
Floor Heating Controls, Danfoss Icon™ RT wireless, Room Thermostat, 3.0 V, Number of channels: 0, On-wall
088U1082
Floor Heating Controls, Danfoss Icon™ RT wireless, Room Thermostat, 3.0 V, Number of channels: 0, On-wall
088U1100
Floor Heating Controls, Danfoss Icon, Expansion module, 230.0 V, Number of channels: 0, Attachable
088U1101
App Module for Master Controller to enable wifi and APP control on Danfoss Icon
088U1102
Repeater is used to extend the range between thermostats and Master Controller
088U1103
Floor Heating Controls, Danfoss Icon, Radio module, 5.0 V, Number of channels: 0, Attachable
