145H1946
Part Number: 145H1946
Product Information
Extended Description

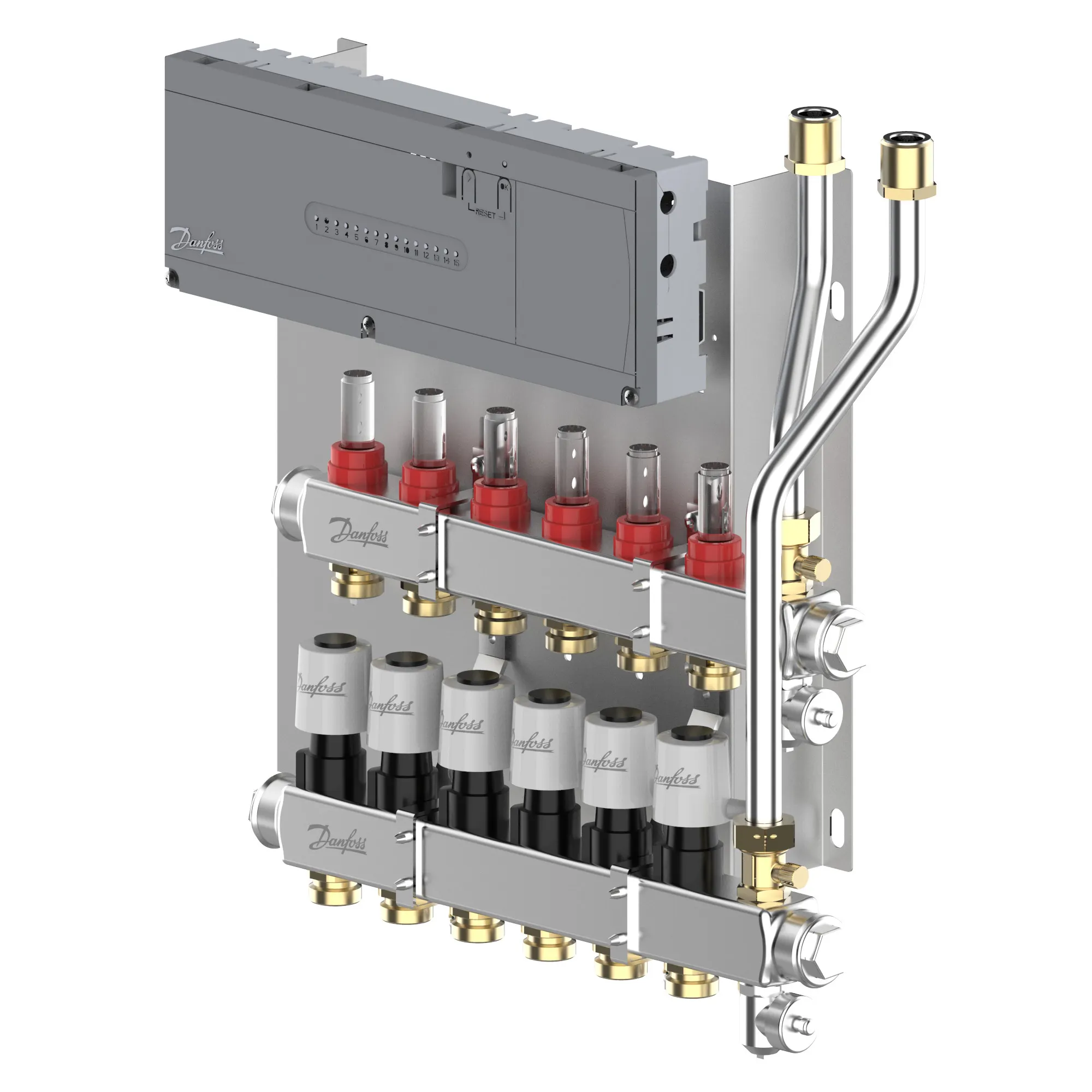

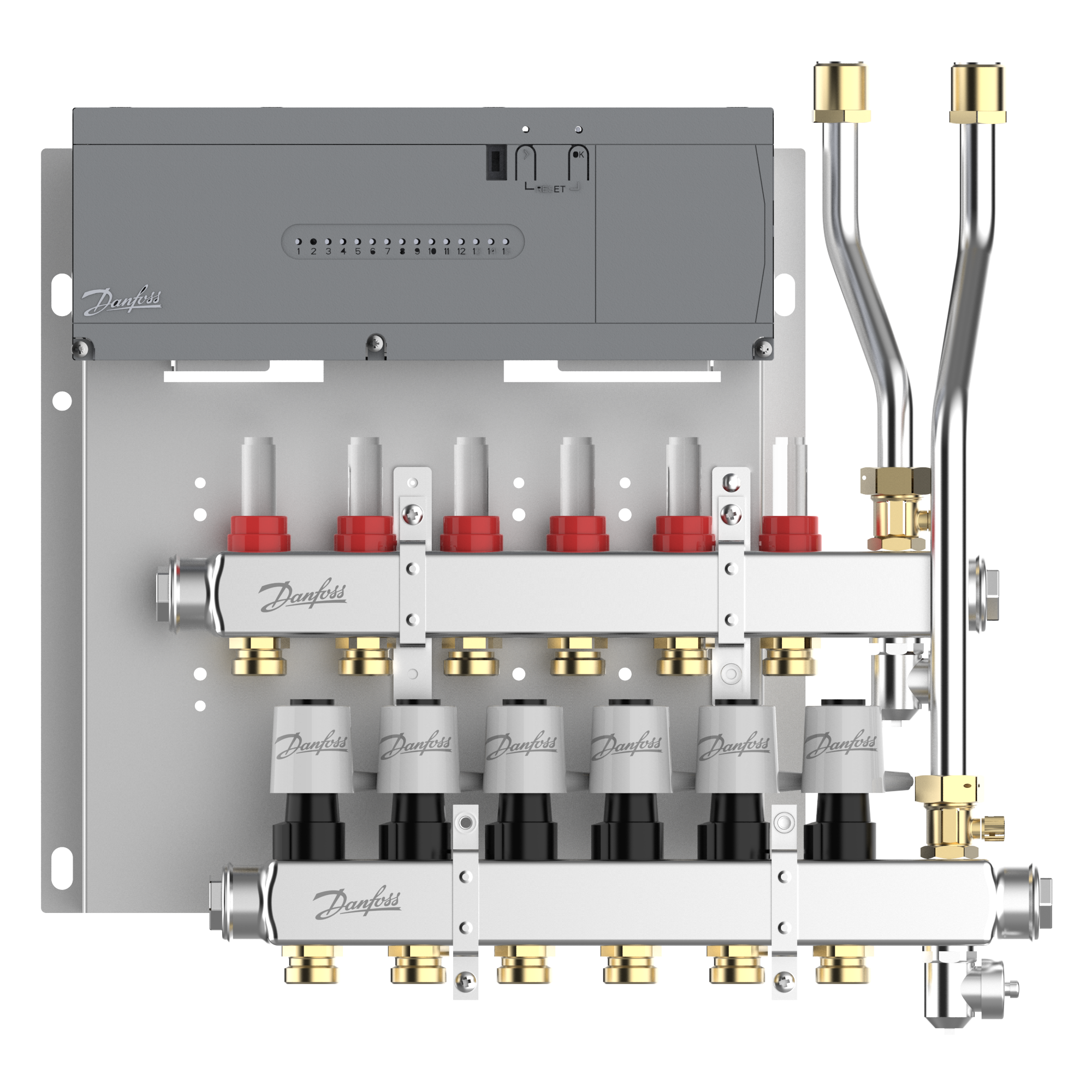

145H1946 Danfoss: Stainless steel manifold, 6 loops, ICON2 Master controller
Gross weight
9.4 Kilogram
Net weight
8.1 Kilogram
EAN
5715162905746
Actuator
230V
Adaptive learning
Yes
App-solution installer
Installer app with commissioning tool
App-solution user
Danfoss Ally
Application type
Distribution units
Approval
CE
Automatic balancing
Yes
CE evaluated
Yes
Connection direction
Top
Contain batteries
Yes
Control
ICON2TM Master controller
Description
Stainless steel manifold, 6 loops, ICON2 Master controller
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating manifold type
Stainless steel with flow meter and manual air vent
HE connection size
3/4"
HE connection type
G ext. thread
In scope of WEEE
Yes
Interfaces
Bluetooth,Zigbee
Number of connections
2
Number of floor heating manifold connections
6
Power per output [W] [Max]
2 W
Pressure nominal primary [bar]
6 bar
Product group
Distribution units
PWM
Yes
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Scheduling
Yes
Supply temperature construction [ËšC]
60 °C
Supply voltage [V]
230V Hz 50
Type
Distribution unit SGCI
UL evaluated
Out of scope
Valve excercise
Yes
Version
Right
013G7376
Service built-in valve for manifold
088H3250
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 230, NC, 1.150 m
088U0819
Replacement flowmeter for FHF & SSM manifolds
088U2110
Floor Heating Controls, Danfoss Icon2™ MC, Main Controller, 230 V, Number of channels: 15, On-wall
014G2400
Danfoss Ally™ Gateway, Zigbee
088U1110
Danfoss Icon Floor Sensor for 24 V and 230 V
088U2120
Floor Heating Controls, Danfoss Icon2™ RT wireless, Room Sensor, Attachable
088U2121
Floor Heating Controls, Danfoss Icon2™ RT wireless, Room Thermostat, Number of channels: 0, Attachable
088U2122
Floor Heating Controls, Danfoss Icon2™ RT wireless, Room Thermostat, Attachable
088U2125
Floor Heating Controls, Danfoss Icon2™ 24V RT wired, Room Thermostat, 24 V, Number of channels: 0, In-wall
088U2128
Floor Heating Controls, Danfoss Icon2™ 24V RT wired, Room Thermostat, 24 V, Number of channels: 0, On-wall
