146B5871
Part Number: 146B5871
Product Information
Extended Description

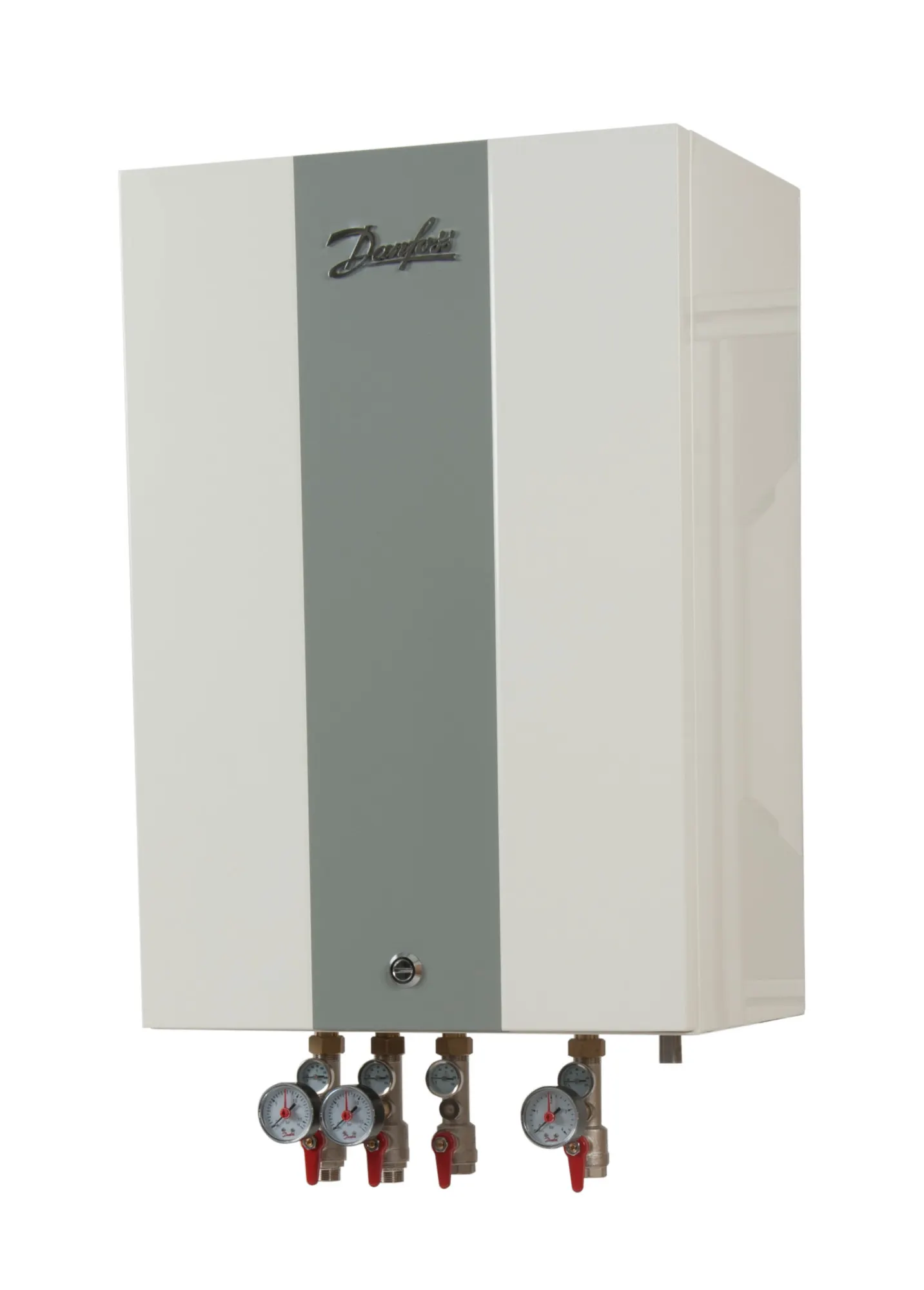

146B5871 Danfoss: Product Type: Unistat 1016 A, Type 2, 16 bar, 100 °C, ECL 310 / AVQM / AMV
Gross weight
60 Kilogram
Net weight
40 Kilogram
EAN
5715162739655
Application type
Indirect heating
Capacity [kW]
30 kW
Connection direction
Bottom
Contain batteries
No
Description
Unistat 1016A, 30kW LT, ECL310, 12bar, with heat meter
Heating circuit - control
ECL 310 / AVQM / AMV
Heating control type
Electronic
Heating controller name
ECL 310/AVQM/AMV10
Heating HEX type
XB06H-1 36
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Supply temperature construction [˚C]
100 °C
Type
Unistat 1016 A
