146B8011

Part Number: 146B8011
146B8011
Manufacturer
Danfoss
Part number
146B8011
Category

Product Information

Extended Description

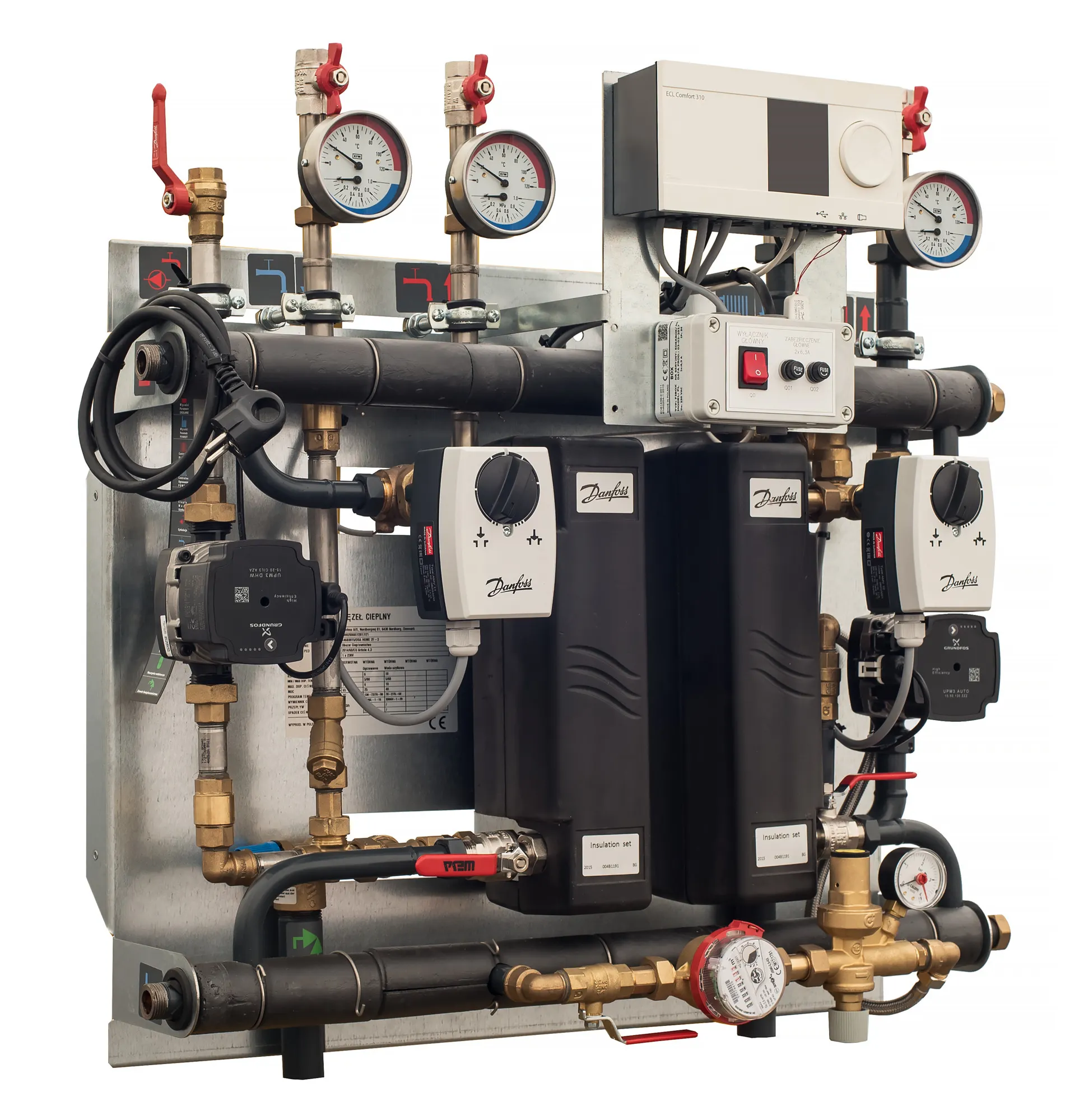

146B8011 Danfoss: DSA HOME 1F-2
Gross weight
50 Kilogram
Net weight
30 Kilogram
EAN
5715162739549
Allowed temperature [˚C] [Min]
2 °C
Application
District Heating
Application type
Indirect heating
Approval
CE
Capacity [kW]
25 kW
Category name
Indirect heating substations
CE evaluated
Yes
Connection direction
Up
Connection direction primary and secondary
Left / Right
Contain batteries
No
Cover material
White-lacquered steel sheet
Cover option
Yes
Delta P primary without heat meter [bar] [Min]
11 bar
Depth with cover [mm]
350 mm
Depth without cover [mm]
350 mm
Description
DSA HOME 1F-2
DH connection size
G3/4"
DH connection type
external thread
DH pipe size
DN20
DHW circulation
No
Flow primary [m3/h] [Max]
4 m³/h
HE connection size
G3/4"
HE connection type
internal thread
HE pipe size
DN20
Heating control type
Electronic
Heating controller name
ECL310
Heating HEX type
XB06L-1-16
Heating pump brand
Grundfos
Heating pump type
UPM3 AUTO 15-70
Height with cover [mm]
810 mm
Height without cover [mm]
810 mm
HEX DHW alloy
1.4404
HEX DHW brazed/gasketed material
Brazed copper
HEX heating alloy
1.4404
HEX heating brazed/gasketed material
Brazed copper
Insulation material
PU Hard Foam+EPP
Manufacturer's name
Danfoss
Number of heating circuits
1
Number of households [Max]
4
Number of households [Min]
1
Package depth [mm]
800 mm
Package height [mm]
800 mm
Package width [mm]
1200 mm
PED category
§ 4.3
Pressure nominal primary [bar]
14 bar
Pressure nominal secondary [bar]
10 bar
Pressure primary [bar] [Max]
14 bar
Pressure secondary [bar] [Max]
10 bar
Product group
Substations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Substation version
1F-2
Supply temperature construction [˚C]
130 °C
Supply voltage [V] AC
230 V
Type
DSA1 HOME
Width with cover [mm]
510 mm
Width without cover [mm]
500 mm
