146B9192

Part Number: 146B9192
146B9192
Manufacturer
Danfoss
Part number
146B9192
Category

Product Information

Extended Description

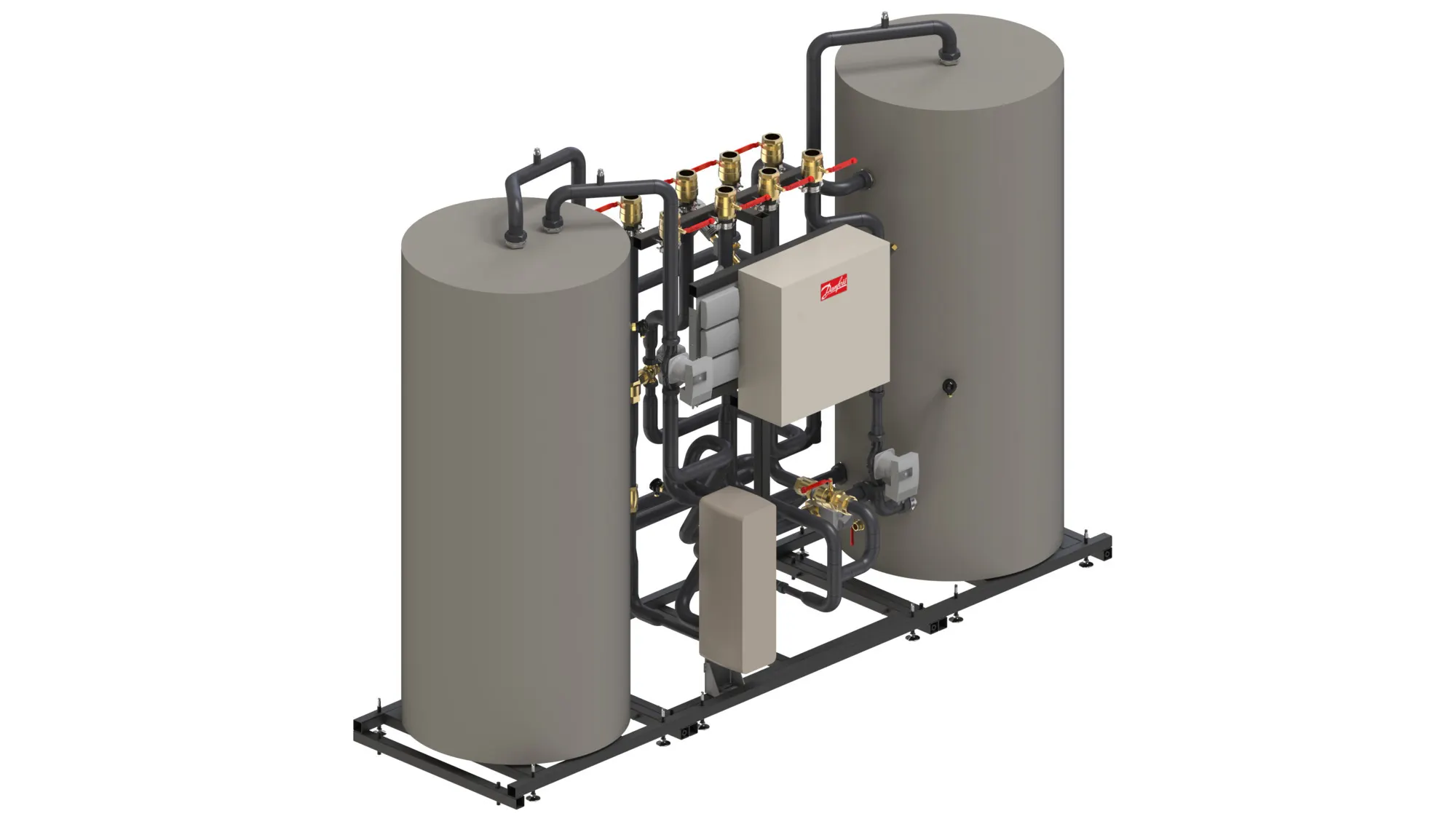

146B9192 Danfoss: DSA HRU 2 HE 22D CO2 150 S
Gross weight
540 Kilogram
Net weight
500 Kilogram
EAN
5715162903469
Additional information
Two-tanks solution
Allowed temperature [ËšC] [Min]
2 °C
Application
A3
Application type
Heat recovery unit
Approval
CE
CE evaluated
Yes
Charging pump brand
Wilo
Charging pump type
STRATOS-PARA 25/1-12
Connection direction primary and secondary
Up
Contain batteries
No
Cover option
No
Data communication
ModBus
Depth without cover [mm]
1200 mm
Description
DSA HRU 2 HE 22D CO2 150 S
DH connection size
1 1/2"
DH connection type
Thread
DH pipe size
DN40
Flow primary [m3/h] [Max]
0.62 mÂł/h
HE connection size
1 1/2"
HE connection type
Thread
HE pipe size
DN40
Heat recover (CO2) capacity [kW]
150 kW
Heat resale option
YES
Heating control type
Electronic
Heating controller name
ECL310 (P510.12)
Heating demand capacity [kW]
22 kW
Heating HEX type
XB37H-1 16
Height without cover [mm]
2000 mm
HEX heating alloy
1.4404
HEX heating brazed/gasketed material
Brazed copper
HEX type for selling option
XB37H-1-16
Insulation material
PU Hard Foam
Manufacturer's name
Danfoss
Operating temperature [°C] [max]
90 °C
PED category
I
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Substations
Resale pump brand
STRATOS-PARA 25/1-12
Resale pump type
Wilo
Storage tank quantity
2 pc
Storage tank volume
500 L
Substation version
A3
Supply voltage [V] AC [max]
230 V
Type
DSA HRU
Width without cover [mm]
2800 mm
Heat Recovery Unit Heatrecovery: Grocery stores saves money with heat recovery units HRU - Heat Recovery Unit HRU - Heat Recovery Unit HRU - Heat Recovery Unit London Underground air recycled to heat up homes Danfoss DOI PL32DOI000001en-000001.01 DSA HRU, Two-tanks solution, Direct heating substations
