146B9263

Part Number: 146B9263
146B9263
Manufacturer
Danfoss
Part number
146B9263
Category

Product Information

Extended Description

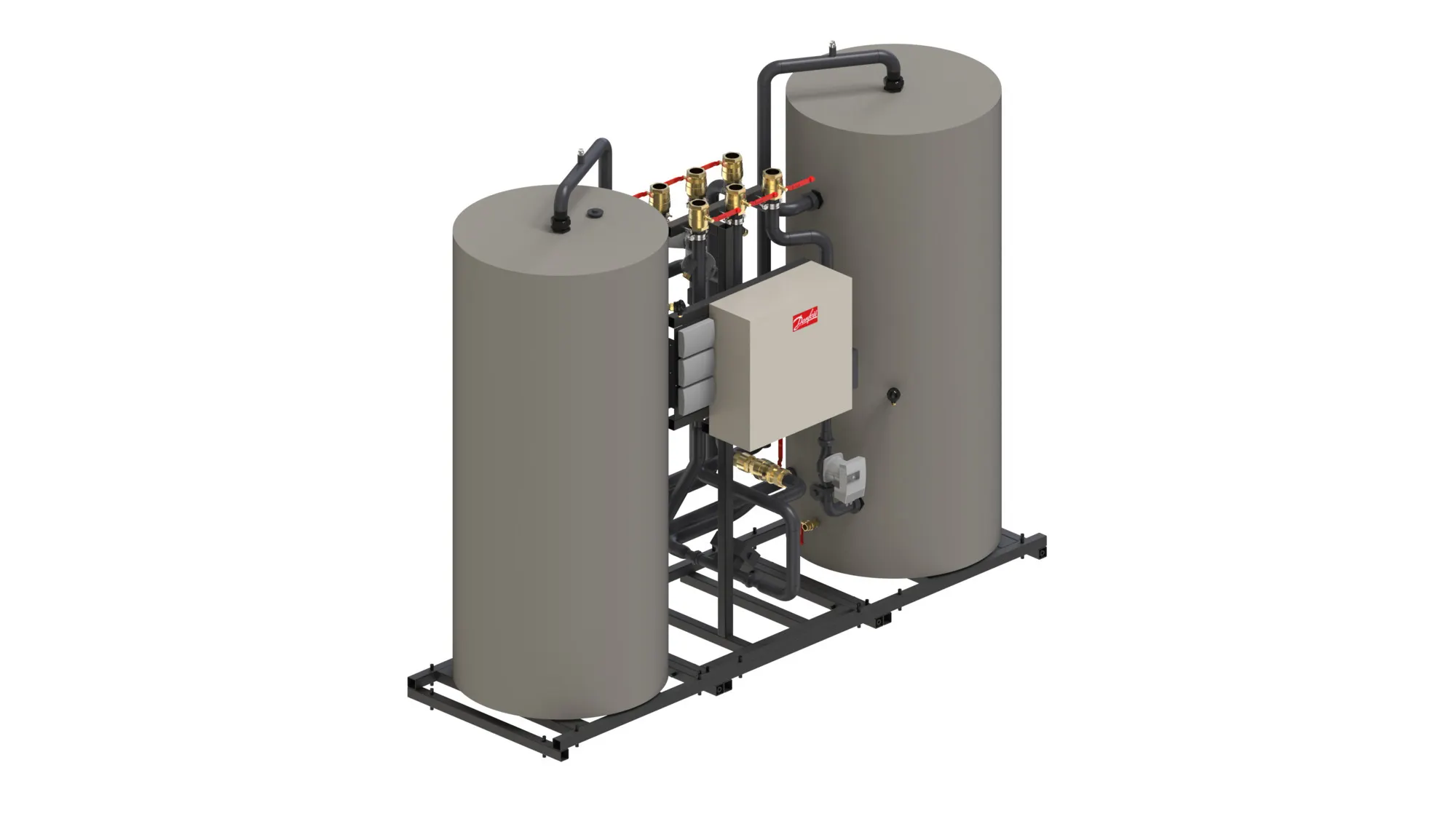

146B9263 Danfoss: DSA HRU 2 HE 540D CO2 150
Gross weight
540 Kilogram
Net weight
500 Kilogram
EAN
5715162903278
Additional information
Two-tanks solution
Allowed temperature [ËšC] [Min]
2 °C
Application
A4
Application type
Heat recovery unit
Approval
CE
CE evaluated
Yes
Connection direction primary and secondary
Up
Contain batteries
No
Cover option
No
Data communication
ModBus
Depth without cover [mm]
1200 mm
Description
DSA HRU 2 HE 540D CO2 150
DH connection size
DN65
DH connection type
flange
DH pipe size
DN65
Flow primary [m3/h] [Max]
1.55 mÂł/h
HE connection size
DN65
HE connection type
flange
HE pipe size
DN65
Heat recover (CO2) capacity [kW]
150 kW
Heat resale option
NO
Heating control type
Electronic
Heating controller name
ECL310 (P510.12)
Heating demand capacity [kW]
540 kW
Heating HEX type
XB59M-1 90
Height without cover [mm]
2000 mm
HEX heating alloy
1.4404
HEX heating brazed/gasketed material
Brazed copper
Insulation material
PU Hard Foam
Manufacturer's name
Danfoss
Operating temperature [°C] [max]
90 °C
PED category
I
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Substations
Storage tank quantity
2 pc
Storage tank volume
500 L
Substation version
A4
Supply voltage [V] AC [max]
230 V
Type
DSA HRU
Width without cover [mm]
2800 mm
Heat Recovery Unit Heatrecovery: Grocery stores saves money with heat recovery units HRU - Heat Recovery Unit HRU - Heat Recovery Unit HRU - Heat Recovery Unit London Underground air recycled to heat up homes Danfoss DOI PL32DOI000001en-000001.01 DSA HRU, Two-tanks solution, Direct heating substations,
