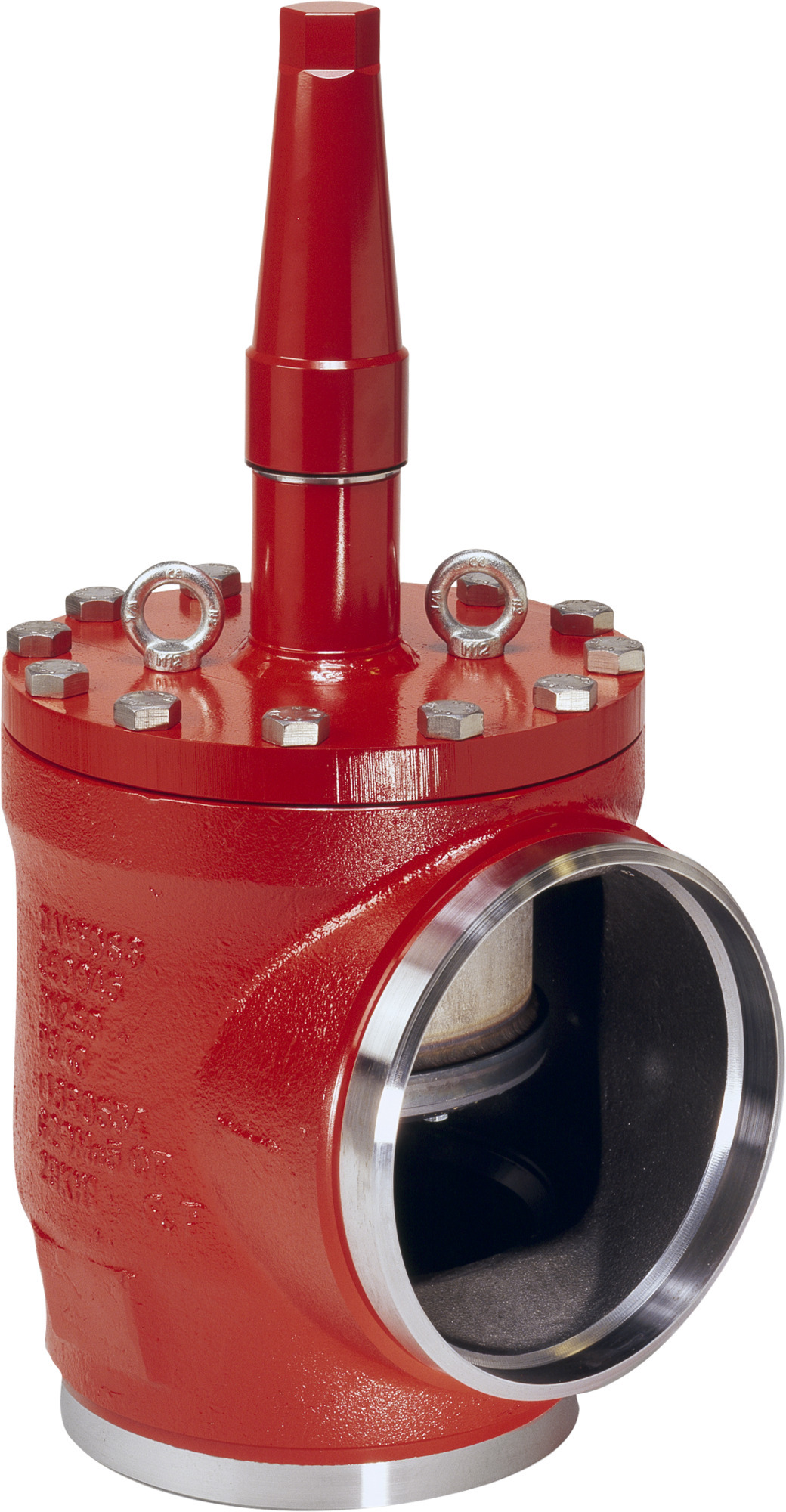

148B3766

Part Number: 148B3766
148B3766
Manufacturer
Danfoss
Part number
148B3766
Category

Product Information

Extended Description

148B3766 Danfoss: Inlet connection type: Butt weld, Outlet connection type: Butt weld, Equipment: Cap
Gross weight
175 Kilogram
Net weight
128.2 Kilogram
Volume
716.072 Liter
EAN
5702428179225
Approval
CE,LLC CDC EURO-TYSK,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Colour Paint
Reddish brown
Connection standard
ASME B 36.10M SCHEDULE 40
Contain batteries
No
Cv value [gal/min]
1867.6 gal/min
Direction
Angleway
Equipment
Cap
EU RoHS compliance
Yes with exemptions
Fluid Group
1,2
Inlet connection size [in]
10 in
Inlet connection size [mm]
250 mm
Inlet connection type
Butt weld
Kv value [m=C2=B3/h]
1610 m=C2=B3/h
Max. Working Pressure [bar]
40 bar
Max. Working Pressure [psig]
580 psig
Outlet connection size [in]
10 in
Outlet connection size [mm]
250 mm
Outlet connection type
Butt weld
Packing format
Single pack
PED category
III
Product description
Stop Valve
Product group
Shut-off and regulating valves
Product Name Description
Shut-off valve
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R113,R114,R1234yf,R1234ze(E),R125,R1270,R1336mzz(Z),R134a,R152a,R170,R22,R227ea,R23,R236fa,R290,R32,R401A,R402A,R402B,R404A,R407A,R407B,R407C,R407F,R407H,R408A,R409A,R410A,R417A,R421A,R422A,R422B,R422D,R427A,R438A,R444B,R447A,R448A,R449A,R449B,R450A,R452A,R454B,R455A,R502,R503,R513A,R600,R600a,R717,R744,RE170,R507A,R1150,R245fa,R413A,R442A,R447B,R452B,R454A,R454C,R463A,R512A,R513B,R515A,R515B,R516A,R508B
Temperature range [=C2=B0C] [max]
150 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
302 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
SVA-DH 250
UK RoHS compliance
Out of scope
Valve version
Delta Pressure High
148B4162
Spare part, SVA 250, Gaskets
148B4164
Spare part, SVA-DH 250, Gaskets
148B4166
Spare part, SVA 250 - 300, Packing gland
148B4167
Repair kit, Gaskets
148B4169
Spare part, SVA 250, Handwheel
148B4171
Spare part, SVA 250 - 300, Cap and gasket
148H3445
Generic spare parts, Tube with grease 30g for packing gland
Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives] Shut-off and regulating valves - Industrial Refrigeration product group catalogue Shut-off valves, Type SVA DH and SVA DL 250 =E2=80=93 300 Shut-off valve and Strainer SVA-HS, SVA-ST 200, SVA-X1 200, SVA-DH 250-300, SVA-DL 250-300, FIA 200-300 Shut-off valves, SVA-DL, SVA-DH 250-300 Danfoss EU 033F0685.AX Danfoss MD 033F0691.AI Danfoss MD 033F1196.02 Danfoss UK 033F4026.AB Shut-off valve SVA-DL, SVA-DH - straight - with cap SVA-DH 250 A ANG
