148B5270

Part Number: 148B5270
148B5270
Manufacturer
Danfoss
Part number
148B5270
Category

Product Information

Extended Description

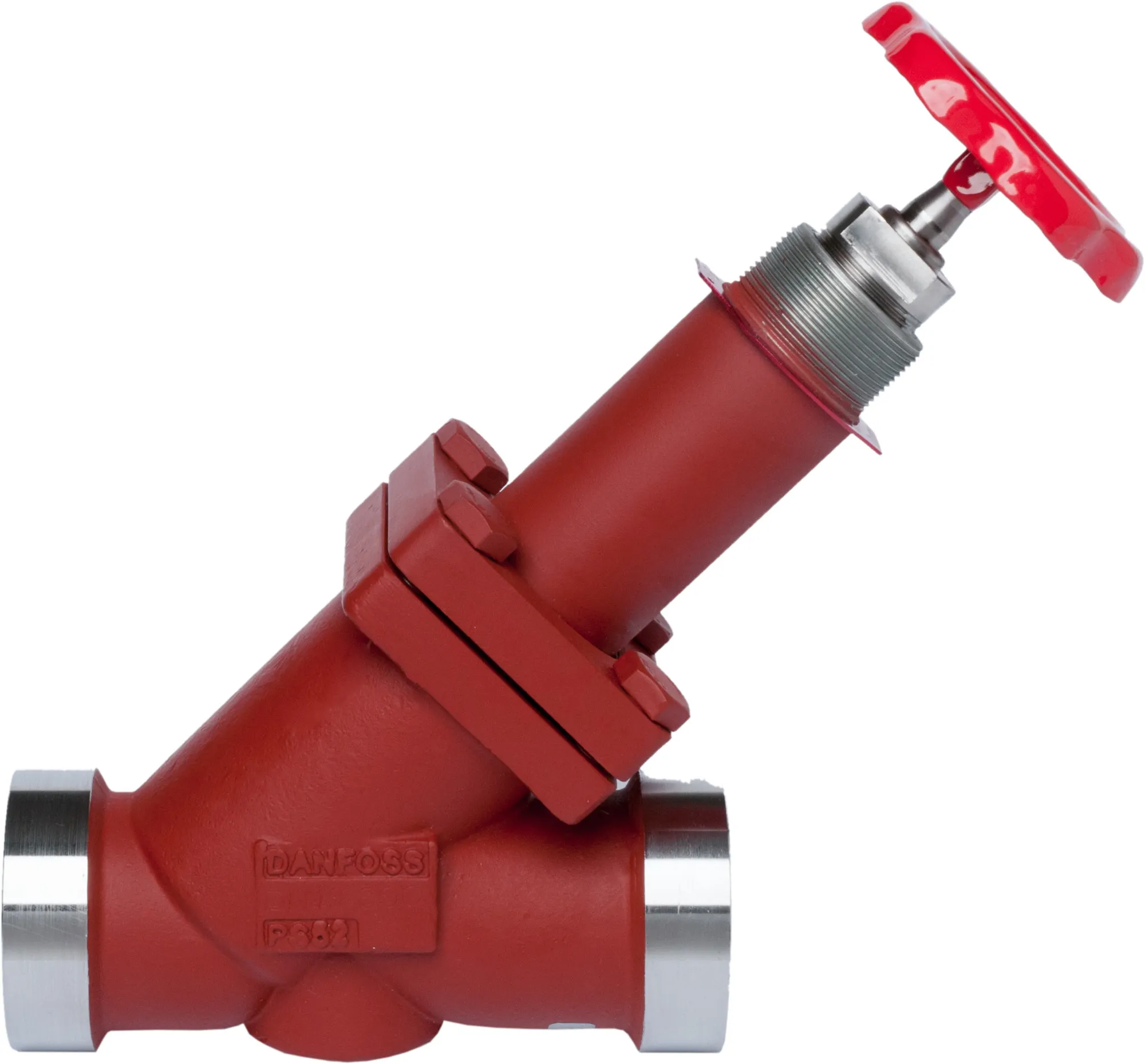

148B5270 Danfoss: Inlet connection type: Butt weld, Outlet connection type: Butt weld, Equipment: Handwheel
Gross weight
2.73 Kilogram
Net weight
1.774 Kilogram
Volume
4.756 Liter
EAN
5702428469241
Approval
CE,EAC,LLC CDC TYSK,UKCA
Body material
Steel
Brand
SVL Flexline
CE evaluated
Yes
China RoHS compliance
Out of scope
Colour Paint
Reddish brown
Connection material
Steel
Connection standard
ASME B 36.10M SCHEDULE 80
Contain batteries
No
Cv value [gal/min]
5.7 gal/min
Direction
Straightway
Equipment
Handwheel
EU RoHS compliance
Yes with exemptions
Flow direction
Bi-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Inlet connection size [in]
1/2 in
Inlet connection size [mm]
15 mm
Inlet connection type
Butt weld
Kv value [m=C2=B3/h]
4.9 m=C2=B3/h
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Neck
Long
Outlet connection size [in]
1/2 in
Outlet connection size [mm]
15 mm
Outlet connection type
Butt weld
Packing format
Single pack
Parts Program name
SVA-S / SVA-L
PED category
Art. 3, par. 3
Product accessories
SVL Flexline accessories
Product description
Stop Valve
Product group
Shut-off and regulating valves
Product Name Description
Shut-off valve
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R113,R114,R1234yf,R1234ze(E),R125,R1270,R1336mzz(Z),R134a,R152a,R22,R227ea,R23,R236fa,R290,R32,R401A,R402A,R402B,R404A,R407A,R407B,R407C,R407F,R407H,R408A,R409A,R410A,R417A,R421A,R422A,R422B,R422D,R427A,R438A,R444B,R447A,R448A,R449A,R449B,R450A,R452A,R454B,R455A,R502,R503,R513A,R600,R600a,R717,R744,RE170,R507A,R1150,R170,R245fa,R413A,R442A,R447B,R452B,R454A,R454C,R463A,R512A,R513B,R515A,R515B,R516A,R508B
Serviceable
SVL Flexline spare parts
Temperature range [=C2=B0C] [max]
150 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
302 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
SVA-L 15
UK RoHS compliance
Out of scope
Valve version
Standard version
148B5279
Function module, SVA-L 15-20, Max. Working Pressure [bar]: 52.0, Handwheel
148B6051
Inspection kit, Sealing parts
148B6061
Repair kit, Packing gland and sealing
148B6151
Overhaul kit, Cone, sealing, packing gland
Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives] One Flexline platform Multiple options (ICV, ICF & SVL) One platform - Multiple options. SVL Line Components - part of the FlexlineTM product range. SVL Flexline code number selection guide Shut-off and regulating valves - Industrial Refrigeration product group catalogue Shut-off valve, type SVA-S and SVA-L Shut-off Valves SVA-S/L 15-200 Danfoss MD 033F0691.AI Danfoss MD 033F1196.02 Shut-off valve SVA-L - straight - with hand wheel Cut - SVA-L 15 to 40 straightway with hand wheel
