148B5497
Part Number: 148B5497
Product Information
Extended Description
148B5497 Danfoss: Outlet connection size [mm]: 25.0, Inlet connection size [mm]: 25.00, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Kv value [m=C2=B3/h]: 20.000, Max. Working Pressure [bar]: 52.0
Gross weight
4.065 Kilogram
Net weight
3.55 Kilogram
Volume
7.524 Liter
EAN
5702428842617
Approval
EAC,LLC CDC TYSK
Body material
Stainless steel
Brand
SVL Flexline
China RoHS compliance
Out of scope
Colour Paint
Reddish brown
Connection material
Stainless steel
Connection standard
EN 10220
Contain batteries
No
Cv value [gal/min]
23.2 gal/min
Direction
Straightway
Equipment
Cap
EU RoHS compliance
Out of scope
Flow area [in2]
0.823 in=C2=B2
Flow area [mm2]
531 mm=C2=B2
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1,2
Inlet connection size [in]
1 in
Inlet connection size [mm]
25 mm
Inlet connection type
Butt weld
Kv value [m=C2=B3/h]
20 m=C2=B3/h
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Neck
Standard
Outlet connection size [in]
1 in
Outlet connection size [mm]
25 mm
Outlet connection type
Butt weld
Packing format
Single pack
Parts Program name
REG-SA / REG-SB
PED category
Art. 4, par. 3
Product accessories
SVL Flexline accessories
Product description
Hand Regulating Valve
Product group
Shut-off and regulating valves
Product Name Description
Hand operated regulating valve
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R290,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R600,R600a,R717,R744,R507A,R1234yf,R1234ze(E),R125,R152a,R227ea,R236fa,R245fa,R32,R407H,R413A,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R512A,R513A,R513B,R515A,R515B,R516A
Serviceable
SVL Flexline spare parts
Temperature range [=C2=B0C] [max]
150 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
302 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
REG-SB SS 25
UK RoHS compliance
Out of scope
Valve version
Standard version
148B6052
Inspection kit, Sealing parts
148B6062
Repair kit, Packing gland and sealing
148B6071
Spare part, SCA,CHV-X 25-40, Replacement Kit
148B6078
Spare part, SCA,CHV-X 25-40, Replacement Kit
Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives]
SVL Flexline code number selection guide
Shut-off and regulating valves - Industrial Refrigeration product group catalogue
Hand operated regulating valve, type REG-SA SS and REG-SB SS
Hand-operated regulating valves in stainless steel REG-SA SS, REG-SB SS 10-40
Manual valves and line components - (stainless steel)
Danfoss MD 033F0691.AI
Danfoss MD 033F1196.02
T=C3=9CV 0045 202 9120 Z 00379 22 D 000(02)
Danfoss UK 033F4026.AB

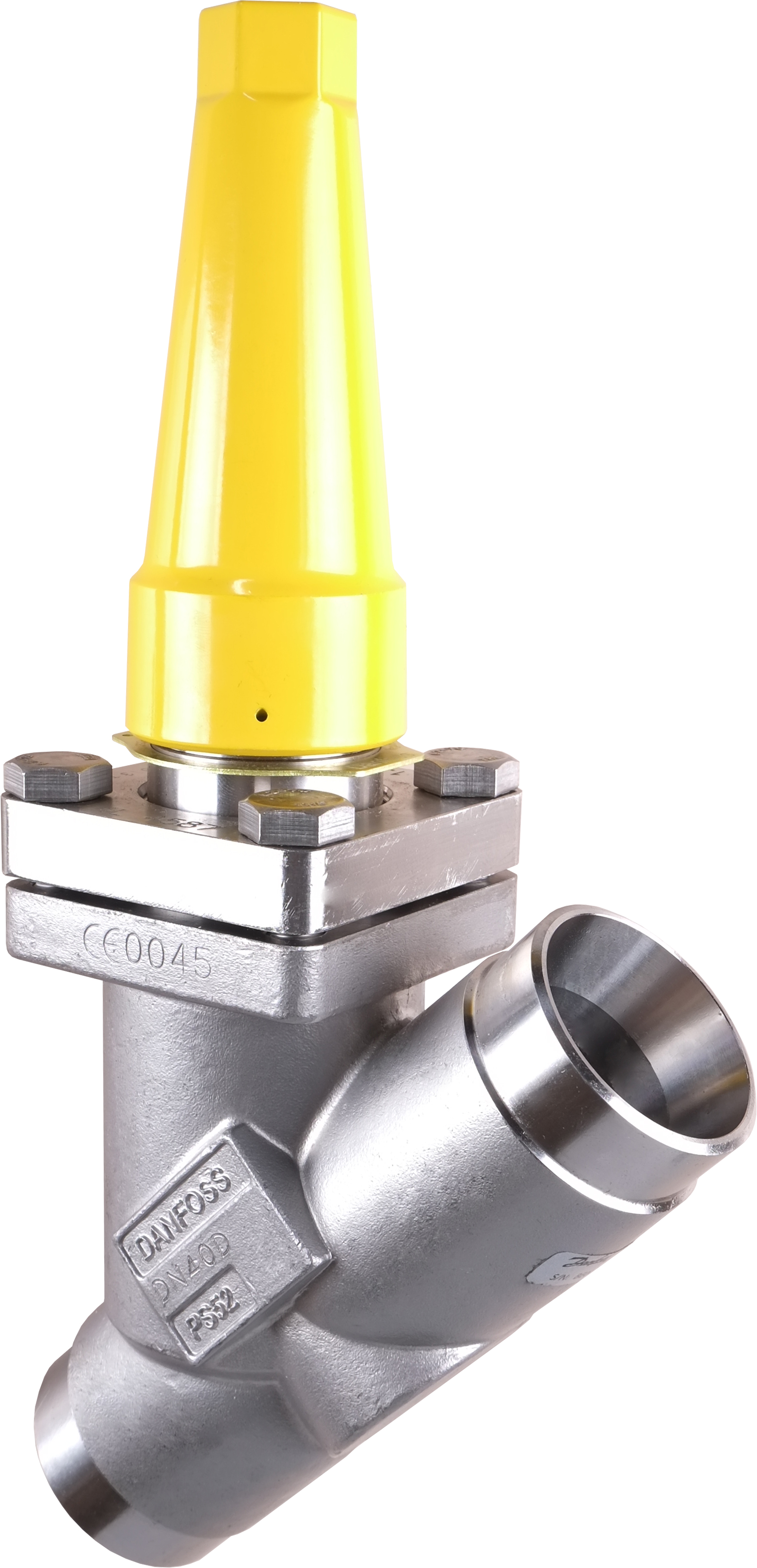

REG-SA, REG-SB SS SVL range, straightway

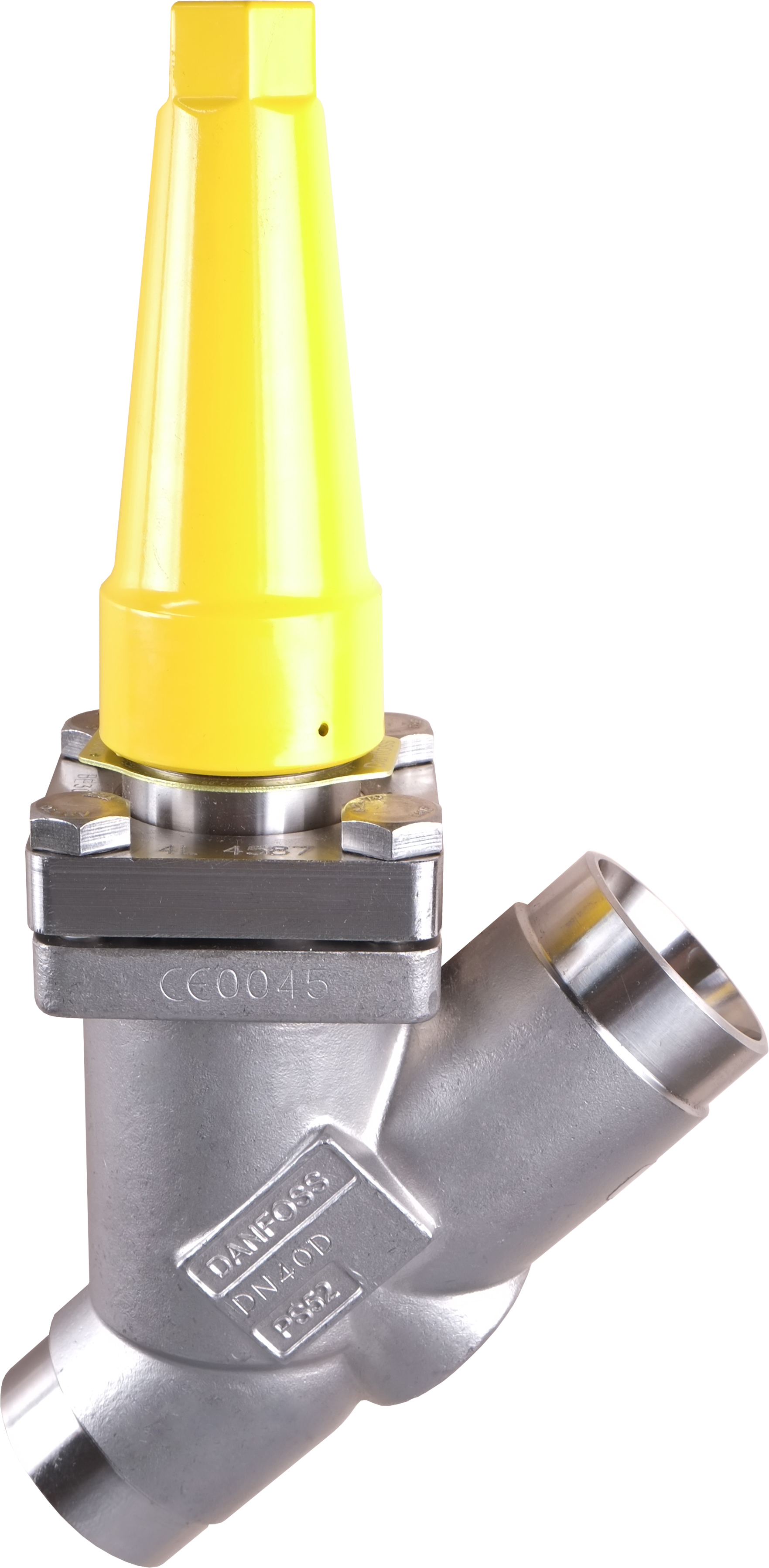

REG-SA, REG-SB SS SVL range, straightway

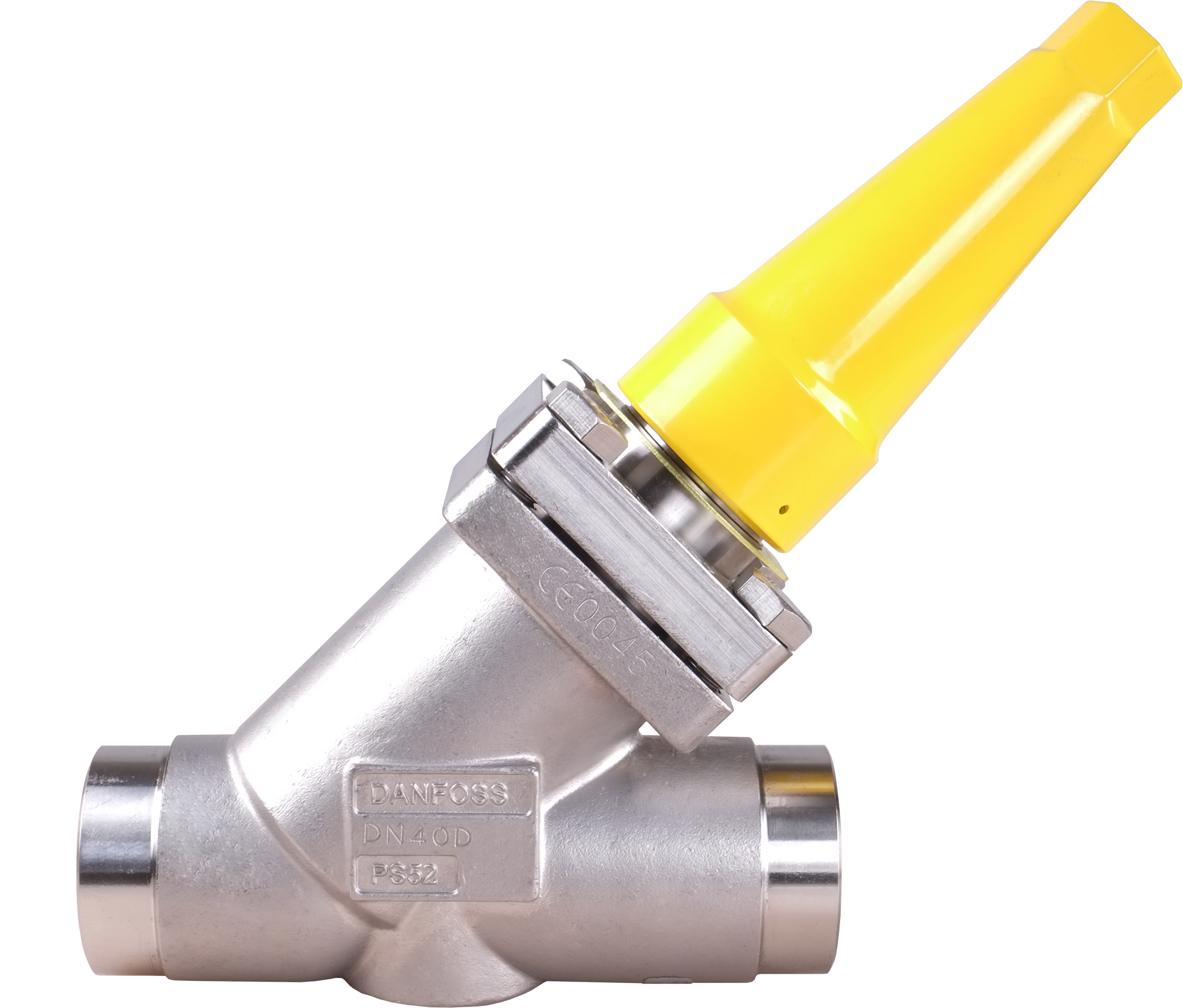

REG-SA, REG-SB SS SVL range, straightway
