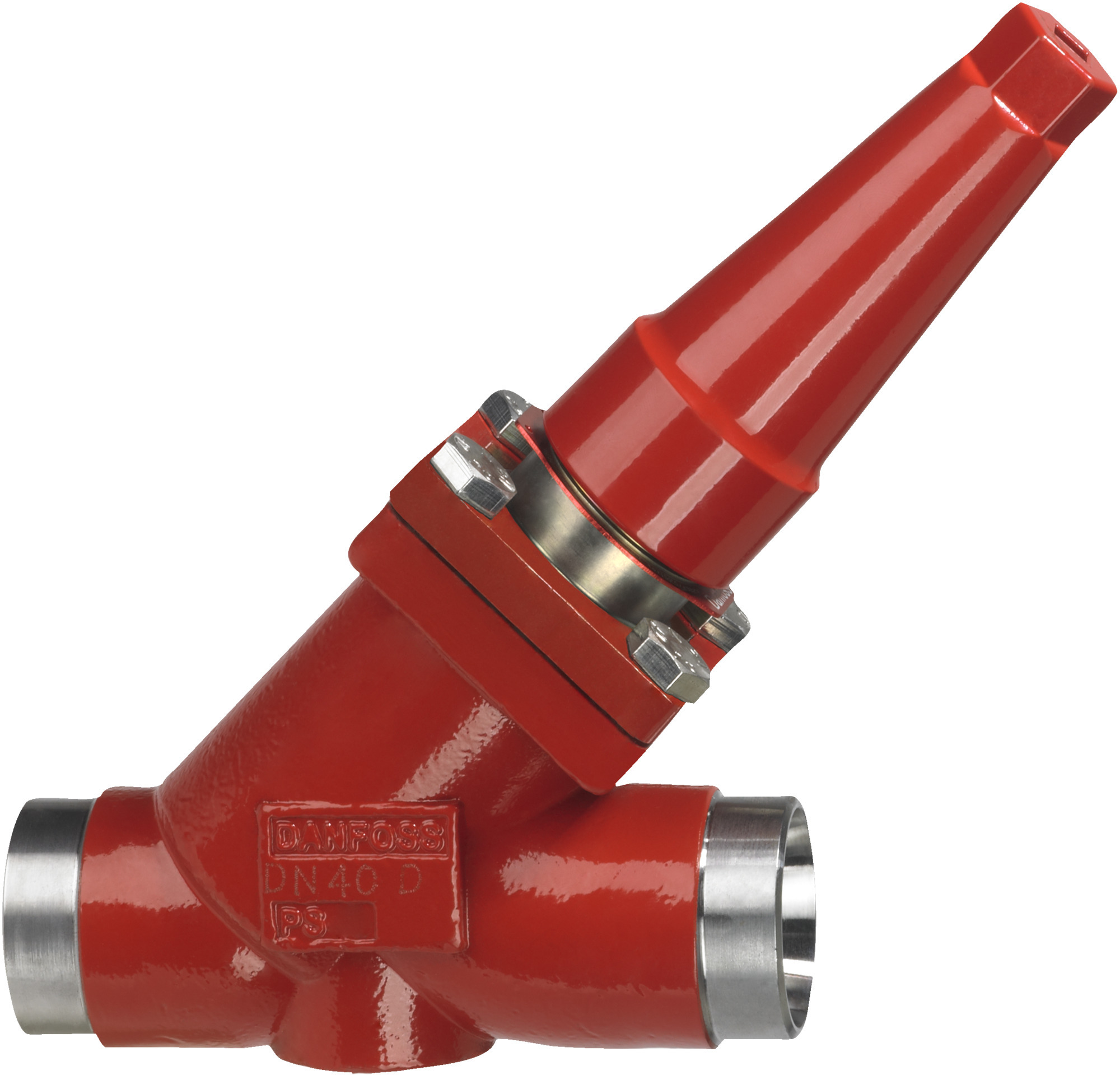

148B5533

Part Number: 148B5533
148B5533
Manufacturer
Danfoss
Part number
148B5533
Category

Product Information

Extended Description

148B5533 Danfoss: Inlet connection type: Socket weld, Outlet connection type: Socket weld, Equipment: Cap
Gross weight
4.64 Kilogram
Net weight
3.482 Kilogram
Volume
7.524 Liter
EAN
5702428464581
Approval
CE,EAC,LLC CDC TYSK,UKCA
Body material
Steel
Brand
SVL Flexline
CE evaluated
Yes
China RoHS compliance
Out of scope
Colour Paint
Reddish brown
Connection material
Steel
Connection standard
ASME B 16.11
Contain batteries
No
Cv value [gal/min]
34.57 gal/min
Direction
Straightway
Equipment
Cap
EU RoHS compliance
Out of scope
Flow direction
Bi-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1,2
Inlet connection size [in]
1 1/4 in
Inlet connection size [mm]
32 mm
Inlet connection type
Socket weld
Kv value [m=C2=B3/h]
29.8 m=C2=B3/h
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Neck
Standard
Outlet connection size [in]
1 1/4 in
Outlet connection size [mm]
32 mm
Outlet connection type
Socket weld
Packing format
Single pack
Parts Program name
SVA-S / SVA-L
PED category
II
Product accessories
SVL Flexline accessories
Product description
Stop Valve
Product group
Shut-off and regulating valves
Product Name Description
Shut-off valve
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R113,R114,R1234yf,R1234ze(E),R125,R1270,R1336mzz(Z),R134a,R152a,R22,R227ea,R23,R236fa,R290,R32,R401A,R402A,R402B,R404A,R407A,R407B,R407C,R407F,R407H,R408A,R409A,R410A,R417A,R421A,R422A,R422B,R422D,R427A,R438A,R444B,R447A,R448A,R449A,R449B,R450A,R452A,R454B,R455A,R502,R503,R513A,R600,R600a,R717,R744,RE170,R507A,R1150,R170,R245fa,R413A,R442A,R447B,R452B,R454A,R454C,R463A,R512A,R513B,R515A,R515B,R516A,R508B
Serviceable
SVL Flexline spare parts
Temperature range [=C2=B0C] [max]
150 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
302 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
SVA-S 32
UK RoHS compliance
Out of scope
Valve version
Standard version
148B6052
Inspection kit, Sealing parts
148B6062
Repair kit, Packing gland and sealing
148B6152
Overhaul kit, Cone, sealing, packing gland
148B5476
Function module, SVA-S 25-40, Max. Working Pressure [bar]: 52.0, Cap
Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives] One Flexline platform Multiple options (ICV, ICF & SVL) One platform - Multiple options. SVL Line Components - part of the FlexlineTM product range. SVL Flexline code number selection guide Shut-off and regulating valves - Industrial Refrigeration product group catalogue Shut-off valve, type SVA-S and SVA-L Shut-off Valves SVA-S/L 15-200 Danfoss EU 033F0685.AX Danfoss MD 033F0691.AI Danfoss MD 033F1196.02 T=C3=9CV 0045 202 9120 Z 00379 22 D 000(02) Danfoss UK 033F4026.AB Shut-off valve, SVA-S 25_148B6407, 148B5211, 148B5231 SVA-S 15-65 straight with cap Dimensions - SVA-S and SVA-L 15 to 40 straightway with cap SVA-S 15-65 straight with cap
