148B5548
Part Number: 148B5548
Product Information
Extended Description

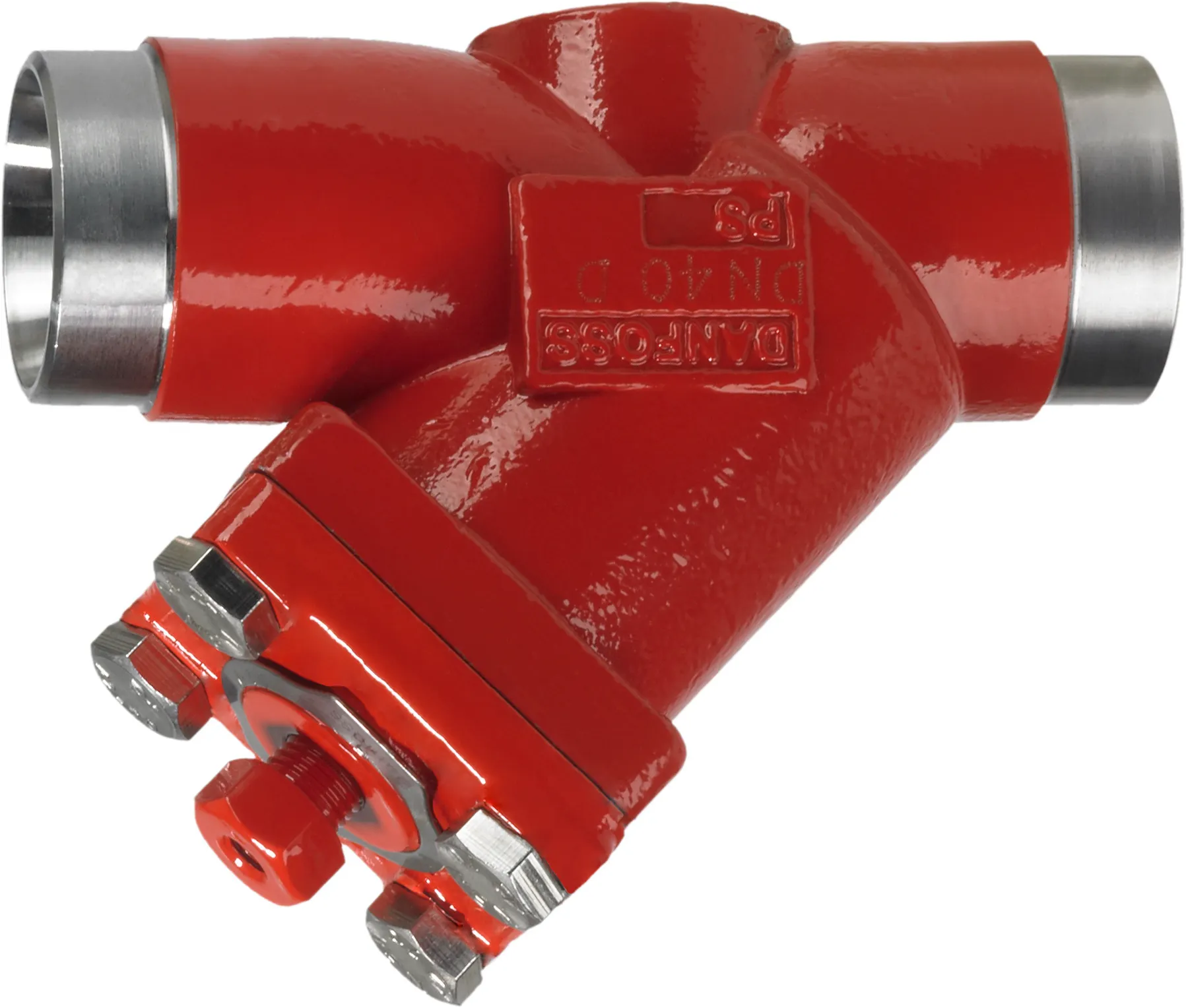

148B5548 Danfoss: Connection material: Steel, Inlet connection type: Socket weld, Max. Working Pressure [bar]: 52.0
Gross weight
3.467 Kilogram
Net weight
2.57 Kilogram
Volume
5.372 Liter
EAN
5702428476447
Approval
CE,UKCA
Brand
SVL Flexline
CE evaluated
Yes
China RoHS compliance
Out of scope
Colour Paint
Reddish brown
Connection material
Steel
Connection standard
ASME B 16.11
Contain batteries
No
Cv value [gal/min] 100 plain
80.13 gal/min
Cv value [gal/min] 100 pleated
105.23 gal/min
Cv value [gal/min] 150 plain
77.49 gal/min
Cv value [gal/min] 38 plain
85.86 gal/min
Cv value [gal/min] 72 plain
83.21 gal/min
Cv value [gal/min] 72 pleated
108.75 gal/min
Direction
Straightway
Equipment
Cover
EU RoHS compliance
Out of scope
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1,2
Inlet connection size [in]
1 1/4 in
Inlet connection size [mm]
32 mm
Inlet connection type
Socket weld
Kv value [m3/h] =C2=B5100 plain
17.6 m=C2=B3/h
Kv value [m3/h] =C2=B5150 plain
18.2 m=C2=B3/h
Kv value [m3/h] =C2=B5150 pleated
23.9 m=C2=B3/h
Kv value [m3/h] =C2=B5250 plain
18.9 m=C2=B3/h
Kv value [m3/h] =C2=B5250 pleated
24.7 m=C2=B3/h
Kv value [m3/h] =C2=B5500 plain
19.5 m=C2=B3/h
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Outlet connection size [in]
1 1/4 in
Outlet connection size [mm]
32 mm
Outlet connection type
Socket weld
Packing format
Single pack
Parts Program name
FIA
PED category
II
Product accessories
SVL Flexline accessories
Product description
Filter housing
Product group
Strainers
Product Name Description
Strainer housing
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R113,R114,R1233zd(E),R1234yf,R1234ze(E),R125,R1270,R1336mzz(Z),R134a,R152a,R170,R22,R227ea,R23,R236fa,R290,R32,R401A,R402A,R402B,R404A,R407A,R407B,R407C,R407F,R407H,R408A,R409A,R410A,R417A,R421A,R422A,R422B,R422D,R427A,R438A,R444B,R447A,R448A,R449A,R449B,R450A,R452A,R454B,R455A,R502,R503,R513A,R600,R600a,R717,R744,RE170,R507A,R1150,R245fa,R413A,R442A,R447B,R452B,R454A,R454C,R463A,R512A,R513B,R515A,R515B,R516A,R508B
Serviceable
SVL Flexline spare parts
Temperature range [=C2=B0C] [max]
150 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
302 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
FIA 32
UK RoHS compliance
Out of scope
Valve version
Standard version
148B5484
Function module, FIA 25-40
148B6052
Inspection kit, Sealing parts
148H3123
Strainer insert, FIA INS
148H3125
Strainer insert, FIA INS
148H3129
Strainer insert, FIA INS
148H3269
Strainer insert, FIA INS
148H3304
Strainer insert, FIA INS
148H3302
Strainer insert, FIA INS
Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives]
One Flexline platform Multiple options (ICV, ICF & SVL)
One platform - Multiple options. SVL Line Components - part of the FlexlineTM product range.
SVL Flexline code number selection guide
Strainers - Industrial Refrigeration product group catalogue
Strainer, type FIA
Strainer - FIA 15-200
Danfoss EU 033F0685.AX
Danfoss MD 033F0691.AI
Danfoss MD 033F1196.02
T=C3=9CV 0045 202 9120 Z 00379 22 D 000(02)
Danfoss UK 033F4026.AB

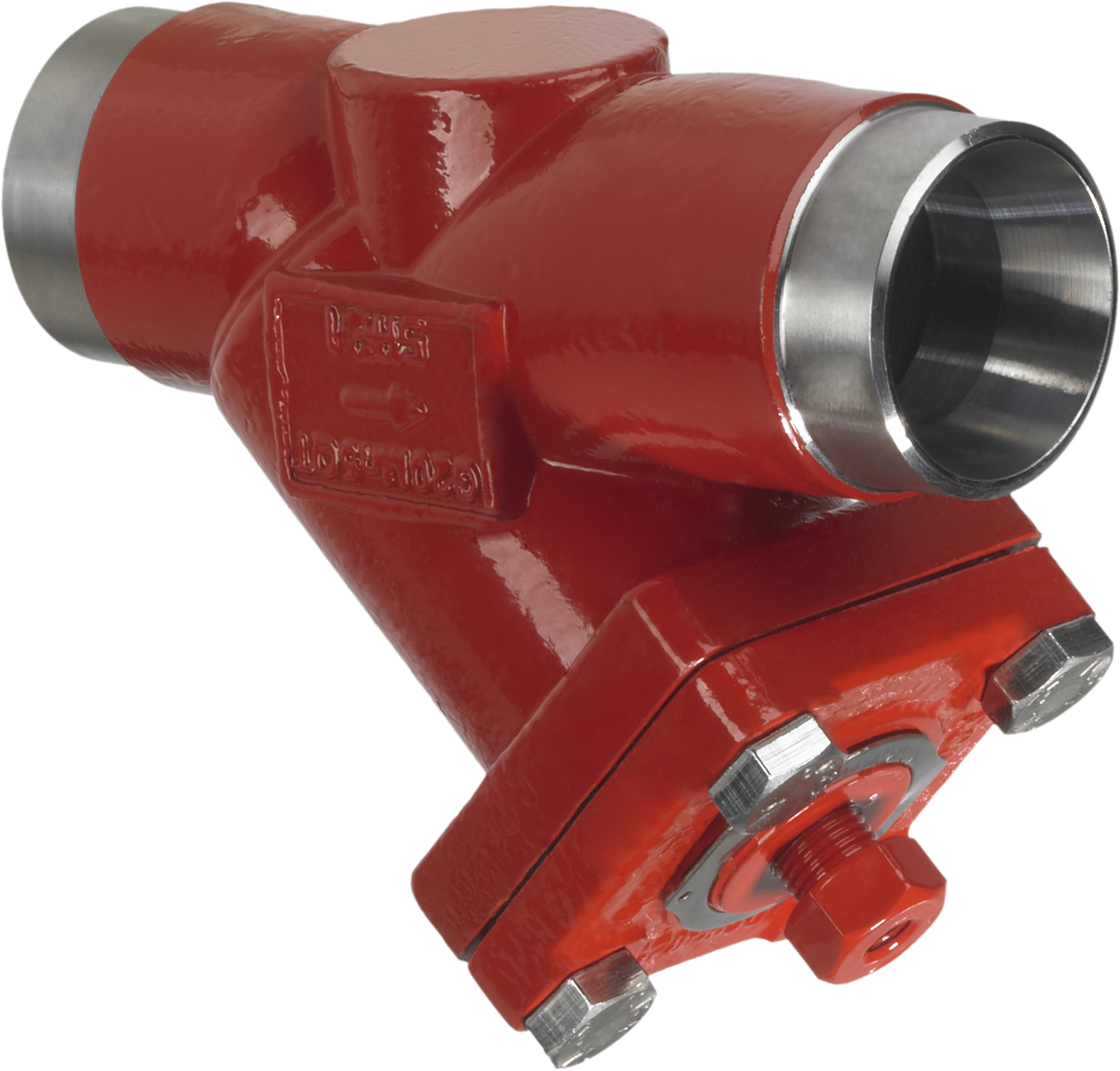

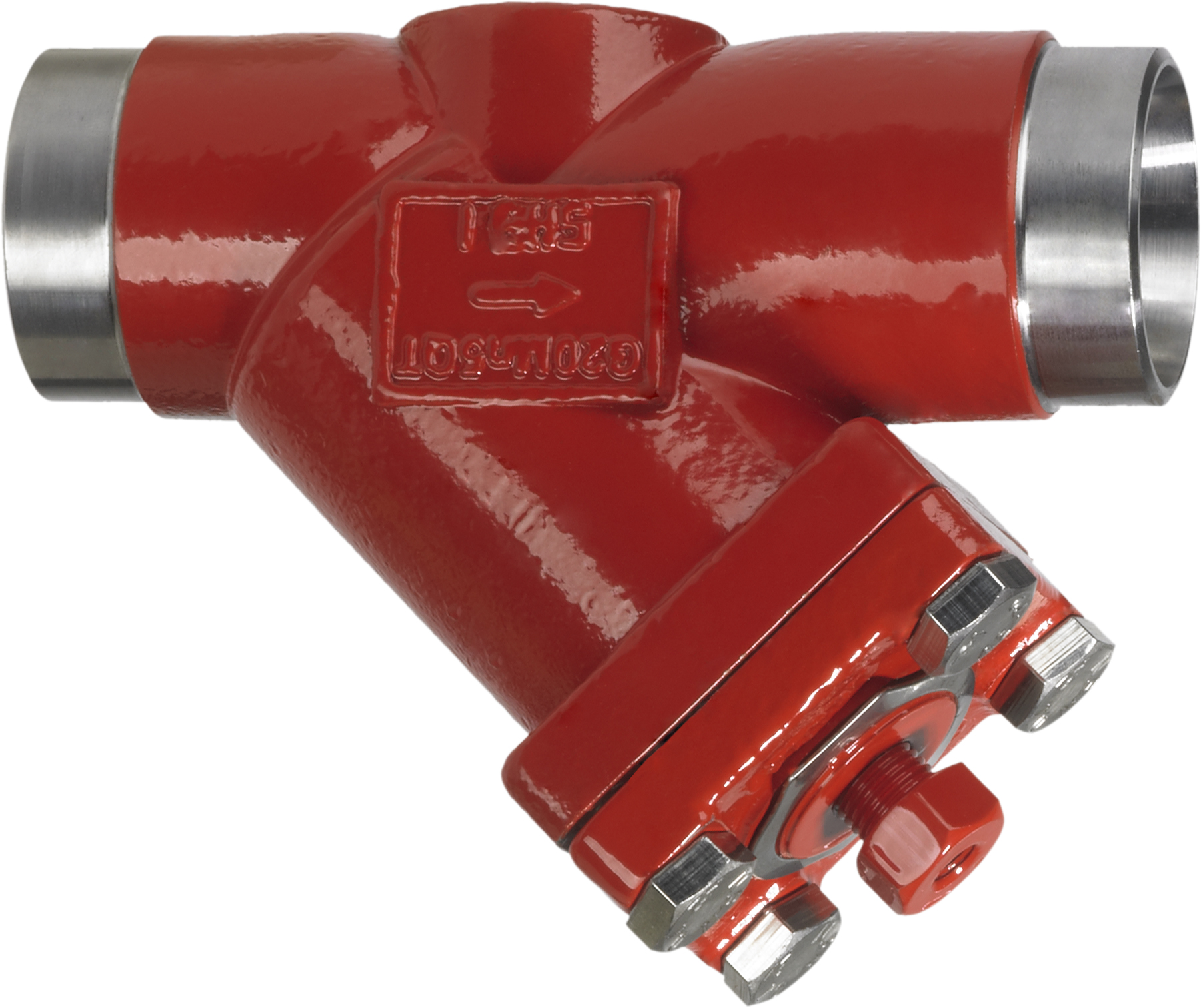

FIA 15-65 straight
FIA 15-65 straight
FIA 15-65 straight
FIA 15-65 angle and straight
Dimensions - FIA 15-65 - Straightway
