148B6747

Part Number: 148B6747
148B6747
Manufacturer
Danfoss
Part number
148B6747
Category

Product Information

Extended Description

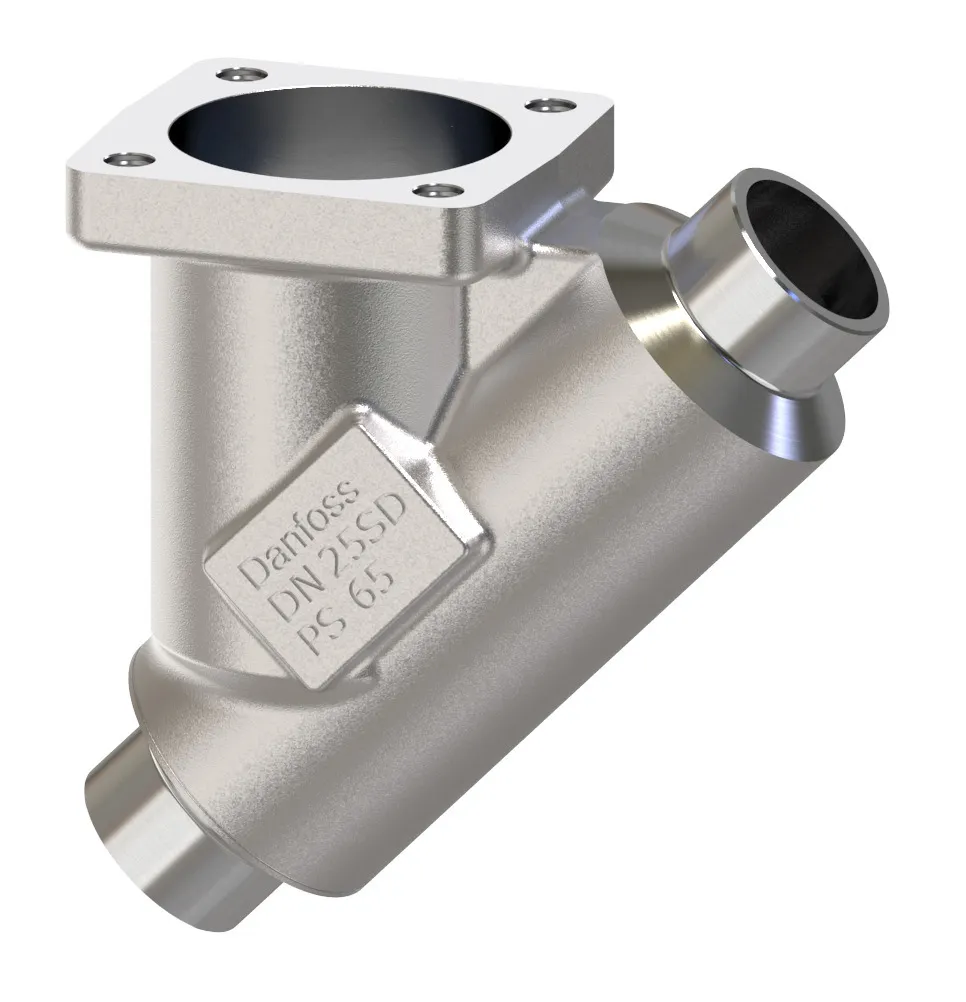

148B6747 Danfoss: Used for product: SVL 25
Gross weight
2.748 Kilogram
Net weight
1.844 Kilogram
Volume
5.372 Liter
EAN
5702428559652
Approval
CE,UKCA
Body material
Steel
Brand
SVL Flexline
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection material
Steel
Connection standard
EN 1254-5
Contain batteries
No
Direction
Straightway
EU RoHS compliance
Out of scope
Flow direction
Bi-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Inlet connection size [mm]
28 mm
Inlet connection type
Solder
Max. Working Pressure [bar]
65 bar
Max. Working Pressure [psig]
943 psig
Outlet connection size [mm]
28 mm
Outlet connection type
Solder
Packing format
Single pack
Parts Program name
SVA-S / SVA-L
PED category
Art. 3, par. 3
Product accessories
SVL Flexline accessories
Product description
Valve house
Product group
Multifunction valves
Product Name Description
Multifunction valve body
Quantity per packing format
1 pc
Refrigerants
R113,R114,R1233zd(E),R1234yf,R1234ze(E),R125,R1270,R1336mzz(Z),R134a,R152a,R170,R22,R227ea,R23,R236fa,R290,R32,R401A,R402A,R402B,R404A,R407A,R407B,R407C,R407F,R407H,R408A,R409A,R410A,R417A,R421A,R422A,R422B,R422D,R427A,R438A,R444B,R447A,R448A,R449A,R449B,R450A,R452A,R454B,R455A,R502,R503,R513A,R600,R600a,R717,R744,RE170,R507A,R1150,R245fa,R413A,R442A,R447B,R452B,R454A,R454C,R463A,R512A,R513B,R515A,R515B,R516A,R508B
Serviceable
SVL Flexline spare parts
Temperature range [°C] [max]
150 °C
Temperature range [°C] [min]
-60 °C
Temperature range [°F] [max]
302 °F
Temperature range [°F] [min]
-76 °F
Type
SVL 25
UK RoHS compliance
Out of scope
Used for product
SVL 25
SVL 65 parts program-Ordering from the entire SVL 65 bar (943 psi) Series Check and stop valves, type SCA-X and CHV-X, 65 bar Hand operated regulating valve, type REG-SA and REG-SB, 65 bar Shut-off valves, type SVA-S and SVA-L, 65 bar Shut-off valves SVA-S/L 15-200, 65 bar (942 psi) SVL Housings Brazed Versions Multifunction valves and safety devices Multifunction valve body, SVL 25, SVL Flexline, Straightway 148B6747
